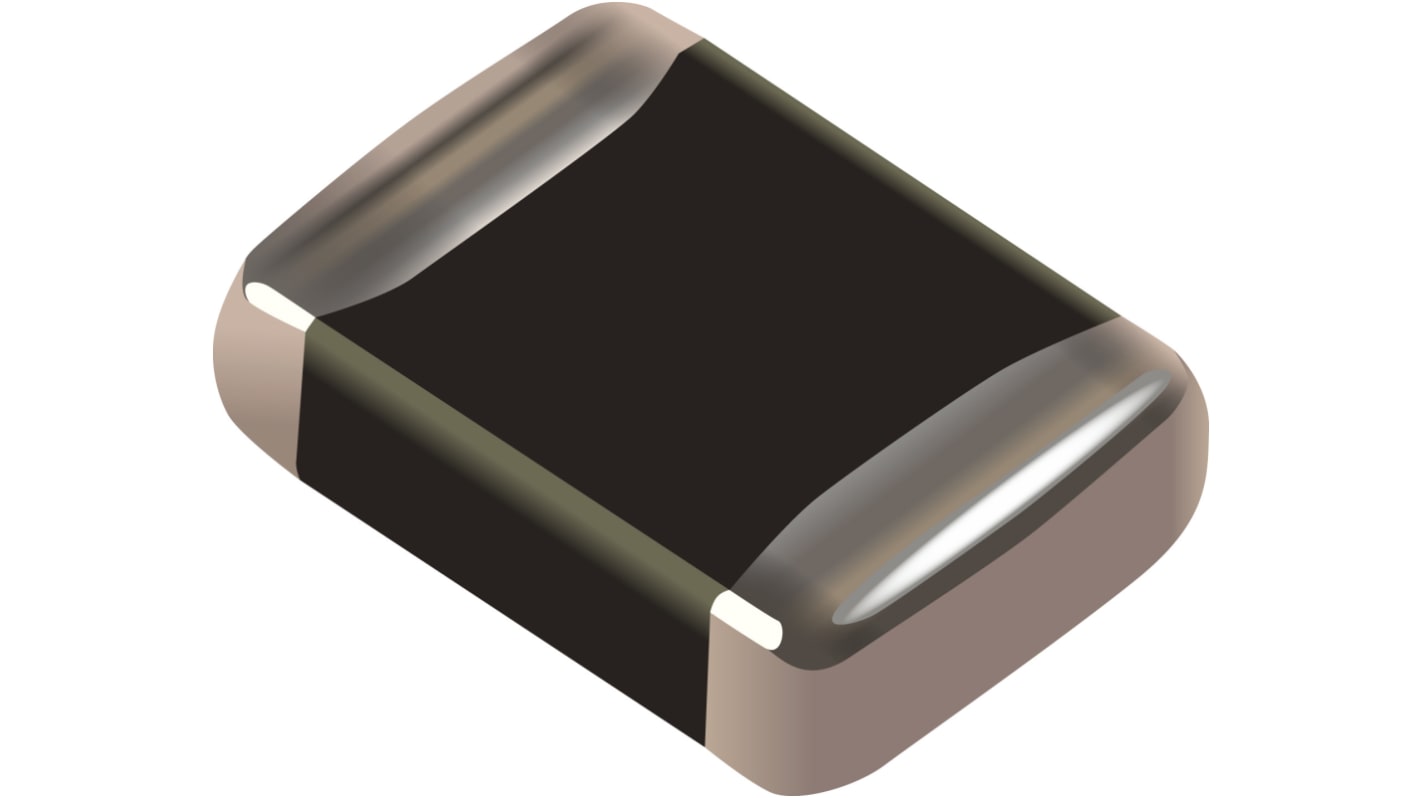

Bourns, AV Varistor 3.3 nF 5 A, Clamping 54 V, Varistor 22 V, 1812
- RS Stock No.:
- 209-8097
- Mfr. Part No.:
- AV20K1812801NIR1
- Brand:
- Bourns
Bulk discount available
Subtotal (1 tape of 10 units)*
£3.20
(exc. VAT)
£3.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 40 | £0.32 | £3.20 |
| 50 - 90 | £0.236 | £2.36 |
| 100 - 240 | £0.216 | £2.16 |
| 250 - 490 | £0.194 | £1.94 |
| 500 + | £0.189 | £1.89 |
*price indicative
- RS Stock No.:
- 209-8097
- Mfr. Part No.:
- AV20K1812801NIR1
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 22 V | |
| Product Type | Varistor | |
| Clamping Voltage VC | 54V | |
| Packaging | Tape & Reel | |
| Clamping Current | 5A | |
| Mount Type | Surface | |
| Series | AV | |
| Maximum AC Voltage | 20V ac | |
| Maximum DC Voltage | 26V | |
| Maximum Surge Current | 2000A | |
| Capacitance | 3.3nF | |
| Length | 4.7mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Thickness | 1.3mm | |
| Termination Style | Surface Mount | |
| Depth | 1.3mm | |
| Package/Case | 1812 | |
| Energy Rating | 0.3J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 22 V | ||
Product Type Varistor | ||
Clamping Voltage VC 54V | ||
Packaging Tape & Reel | ||
Clamping Current 5A | ||
Mount Type Surface | ||
Series AV | ||
Maximum AC Voltage 20V ac | ||
Maximum DC Voltage 26V | ||
Maximum Surge Current 2000A | ||
Capacitance 3.3nF | ||
Length 4.7mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Thickness 1.3mm | ||
Termination Style Surface Mount | ||
Depth 1.3mm | ||
Package/Case 1812 | ||
Energy Rating 0.3J | ||
Automotive Standard No | ||
- COO (Country of Origin):
- SI
The Bourns Electronics AV Series varistors offer excellent transient energy distribution. AV varistors require significantly less space and pad area than silicon TVS diodes, offering greater circuit board layout flexibility for the designer.
Non-plastic coating for better flammability rating
Broad range of current and energy handling
capabilities
