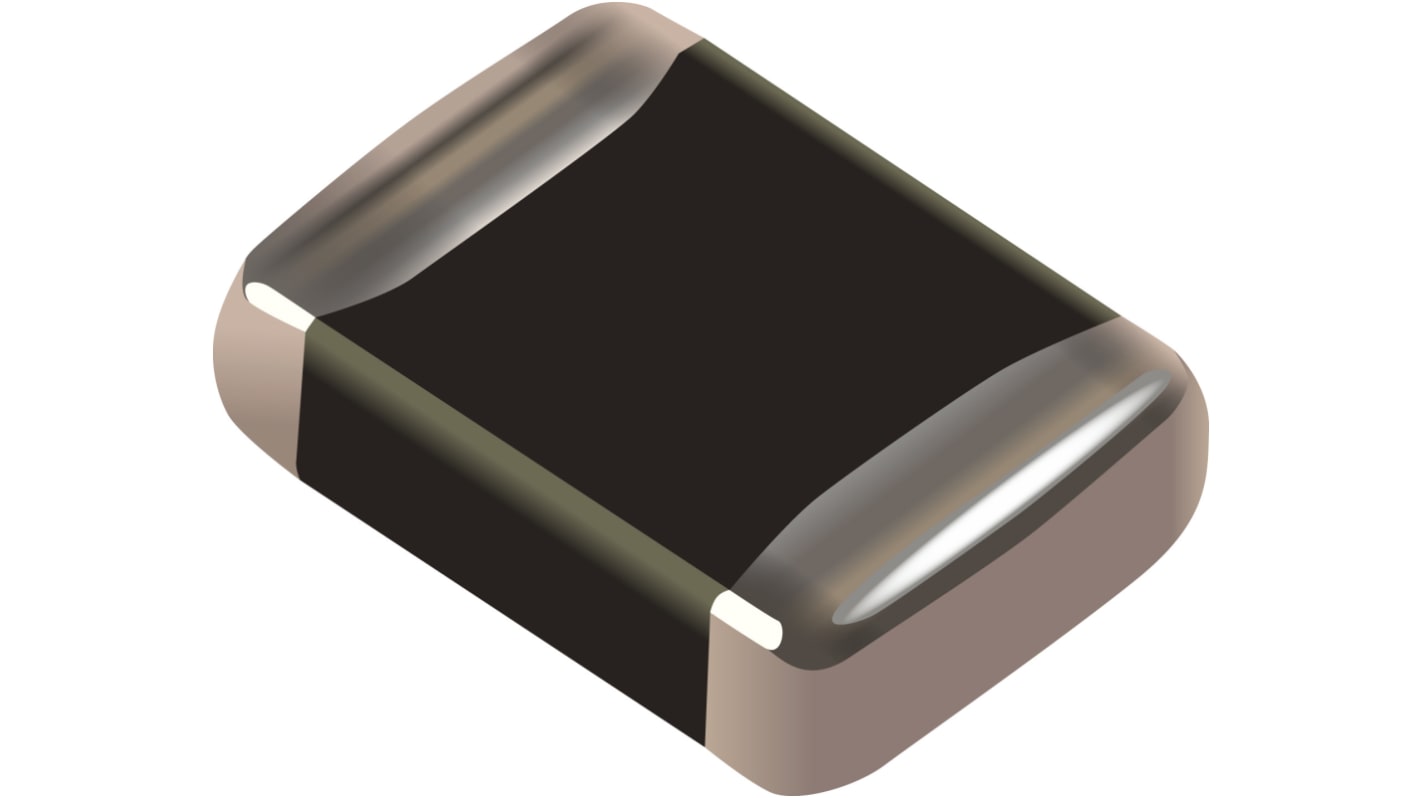

Bourns, AV Varistor 780pF 1A, Clamping 54V, Varistor 22V, 1206
- RS Stock No.:
- 209-8092
- Mfr. Part No.:
- AV20K1206201NIR1
- Brand:
- Bourns
800 In stock - FREE next working day delivery available
Price Each (On a Tape of 25)
£0.228
(exc. VAT)
£0.274
(inc. VAT)
Units | Per unit | Per Tape* |
|---|---|---|
| 25 - 75 | £0.228 | £5.70 |
| 100 - 225 | £0.212 | £5.30 |
| 250 - 975 | £0.18 | £4.50 |
| 1000 + | £0.163 | £4.075 |
*price indicative
- RS Stock No.:
- 209-8092
- Mfr. Part No.:
- AV20K1206201NIR1
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- SI
Product Details
The Bourns Electronics AV Series varistors offer excellent transient energy distribution. AV varistors require significantly less space and pad area than silicon TVS diodes, offering greater circuit board layout flexibility for the designer.
Non-plastic coating for better flammability rating
Broad range of current and energy handling
capabilities
Broad range of current and energy handling
capabilities
Specifications
Attribute | Value |
|---|---|
| Varistor Voltage | 22V |
| Maximum AC Voltage Rating | 20V ac |
| Maximum DC Voltage Rating | 26V dc |
| Clamping Voltage | 54V |
| Clamping Current | 1A |
| Material | Metal |
| Energy | 0.3J |
| Series | AV |
| Maximum Surge Current | 2000A |
| Capacitance | 780pF |
| Length | 3.2mm |
| Thickness | 1.2mm |
| Package/Case | 1206 |
