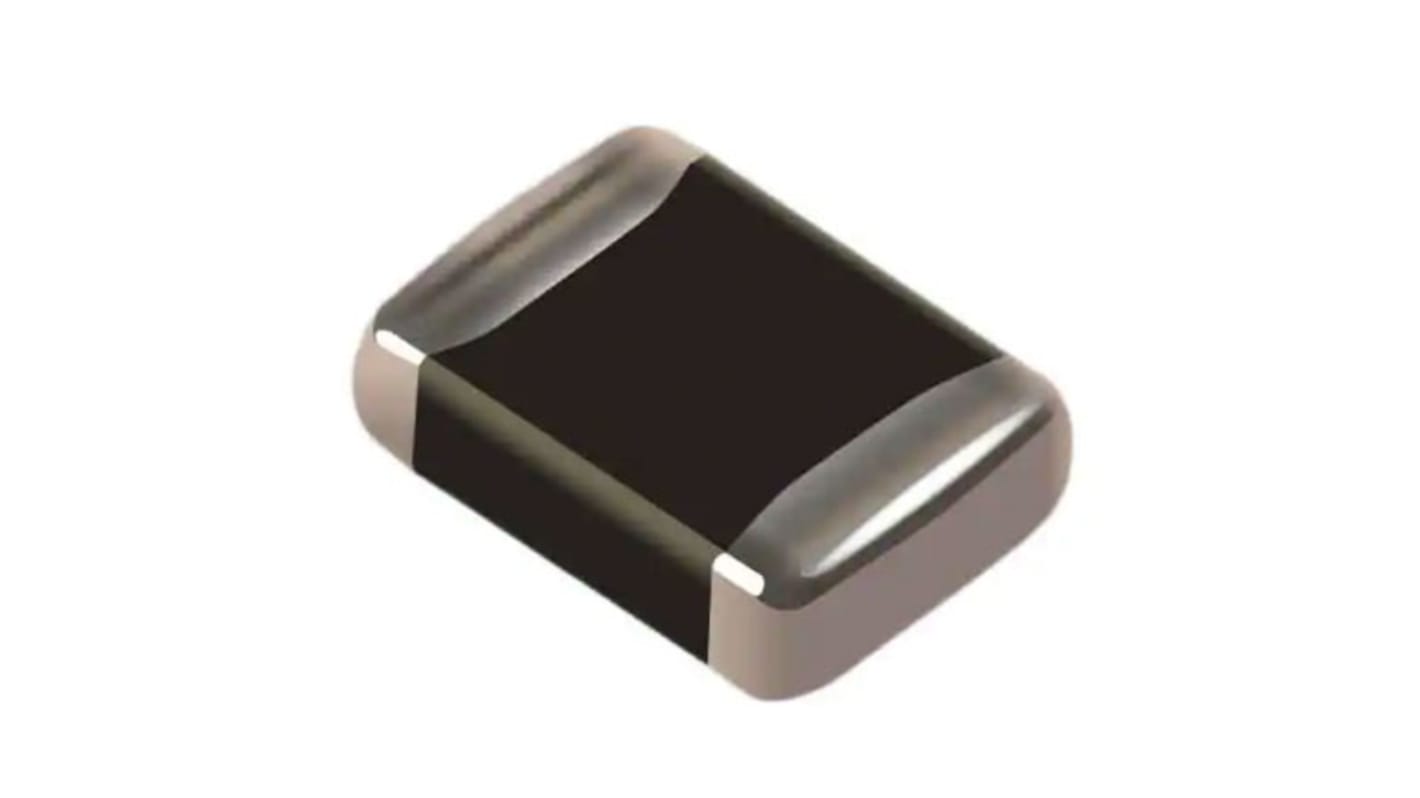

Bourns, ZVHT Varistor 160 pF 1 A, Clamping 77 V, Varistor 47 V, 0603
- RS Stock No.:
- 204-8801
- Mfr. Part No.:
- ZV30K0603300NIR1HT
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 50 units)*
£6.95
(exc. VAT)
£8.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.139 | £6.95 |
| 250 - 950 | £0.127 | £6.35 |
| 1000 - 1950 | £0.106 | £5.30 |
| 2000 + | £0.101 | £5.05 |
*price indicative
- RS Stock No.:
- 204-8801
- Mfr. Part No.:
- ZV30K0603300NIR1HT
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 47 V | |
| Product Type | Varistor | |
| Clamping Voltage VC | 77V | |
| Packaging | Tape & Reel | |
| Clamping Current | 1A | |
| Mount Type | Surface | |
| Series | ZVHT | |
| Maximum AC Voltage | 30V ac | |
| Maximum Surge Current | 30A | |
| Maximum DC Voltage | 38V | |
| Capacitance | 160pF | |
| Minimum Operating Temperature | -55°C | |
| Length | 1.6mm | |
| Maximum Operating Temperature | 150°C | |
| Termination Style | Surface Mount | |
| Standards/Approvals | UL, RoHS | |
| Depth | 0.8mm | |
| Thickness | 0.95mm | |
| Package/Case | 0603 | |
| Energy Rating | 0.1J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 47 V | ||
Product Type Varistor | ||
Clamping Voltage VC 77V | ||
Packaging Tape & Reel | ||
Clamping Current 1A | ||
Mount Type Surface | ||
Series ZVHT | ||
Maximum AC Voltage 30V ac | ||
Maximum Surge Current 30A | ||
Maximum DC Voltage 38V | ||
Capacitance 160pF | ||
Minimum Operating Temperature -55°C | ||
Length 1.6mm | ||
Maximum Operating Temperature 150°C | ||
Termination Style Surface Mount | ||
Standards/Approvals UL, RoHS | ||
Depth 0.8mm | ||
Thickness 0.95mm | ||
Package/Case 0603 | ||
Energy Rating 0.1J | ||
Automotive Standard No | ||
- COO (Country of Origin):
- SI
The Bourns ZVHT series low voltage multi-layered varistor with 160pF capacitance is designed to protect sensitive electronic devices against high voltage surges in the low voltage region.
Broad range of current and energy handling capabilities
Short response time
Low sensitivity
RoHS compliant
