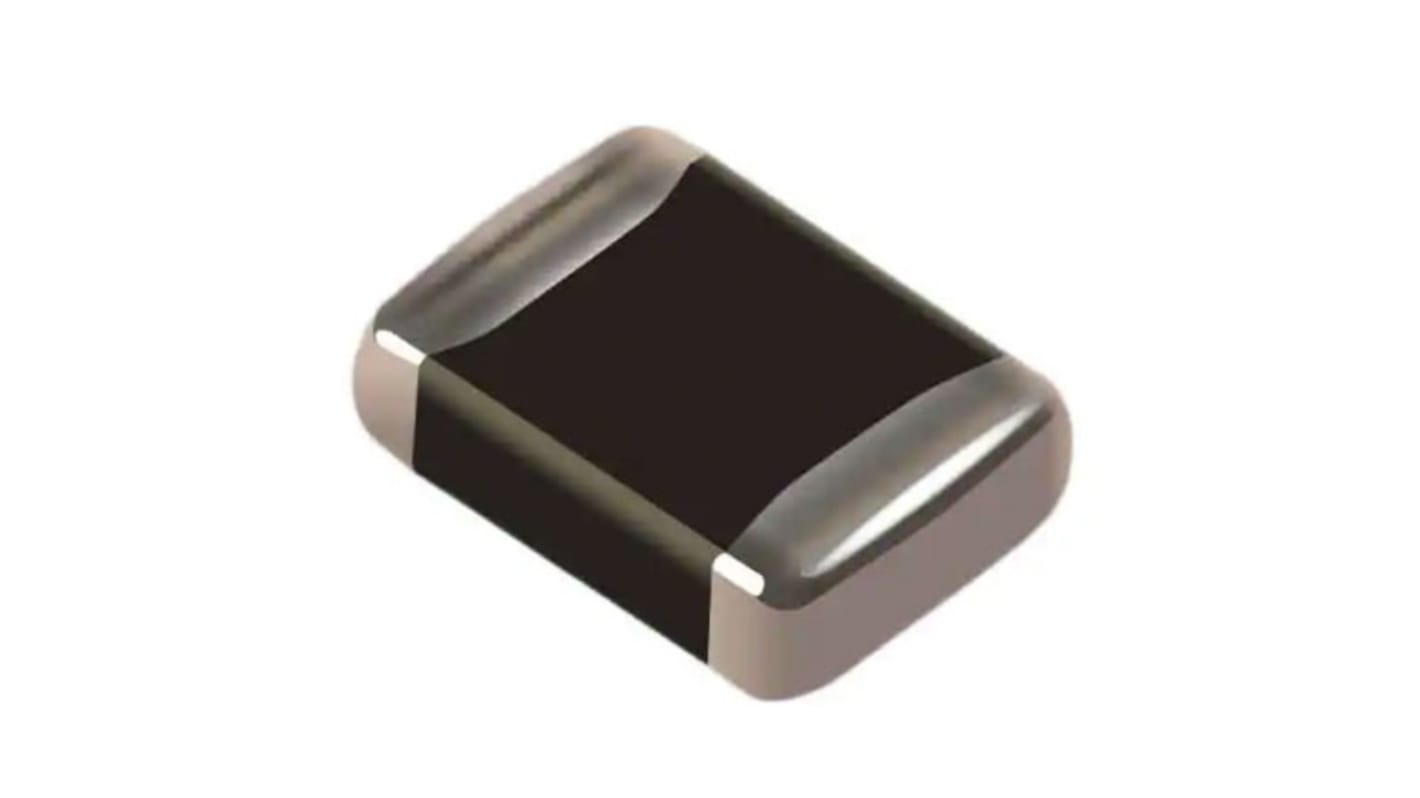

Bourns, ZVHT Varistor 2.3 nF 5 A, Clamping 65 V, Varistor 39 V, 1812
- RS Stock No.:
- 204-8797
- Mfr. Part No.:
- ZV25K1812801NIR1HT
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 10 units)*
£4.10
(exc. VAT)
£4.90
(inc. VAT)
Add 140 units to get free delivery
In Stock
- 410 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.41 | £4.10 |
| 100 - 490 | £0.358 | £3.58 |
| 500 + | £0.32 | £3.20 |
*price indicative
- RS Stock No.:
- 204-8797
- Mfr. Part No.:
- ZV25K1812801NIR1HT
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 39 V | |
| Product Type | Varistor | |
| Clamping Voltage VC | 65V | |
| Packaging | Tape & Reel | |
| Clamping Current | 5A | |
| Mount Type | Surface | |
| Series | ZVHT | |
| Maximum AC Voltage | 25V ac | |
| Maximum Surge Current | 800A | |
| Maximum DC Voltage | 31V | |
| Capacitance | 2.3nF | |
| Length | 4.7mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Thickness | 1.25mm | |
| Termination Style | Surface Mount | |
| Standards/Approvals | RoHS, UL | |
| Depth | 3.2mm | |
| Package/Case | 1812 | |
| Automotive Standard | No | |
| Energy Rating | 3.9J | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 39 V | ||
Product Type Varistor | ||
Clamping Voltage VC 65V | ||
Packaging Tape & Reel | ||
Clamping Current 5A | ||
Mount Type Surface | ||
Series ZVHT | ||
Maximum AC Voltage 25V ac | ||
Maximum Surge Current 800A | ||
Maximum DC Voltage 31V | ||
Capacitance 2.3nF | ||
Length 4.7mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Thickness 1.25mm | ||
Termination Style Surface Mount | ||
Standards/Approvals RoHS, UL | ||
Depth 3.2mm | ||
Package/Case 1812 | ||
Automotive Standard No | ||
Energy Rating 3.9J | ||
- COO (Country of Origin):
- SI
The Bourns ZVHT series low voltage multi-layered varistor with 2300pF capacitance is designed to protect sensitive electronic devices against high voltage surges in the low voltage region.
Broad range of current and energy handling capabilities
Short response time
Low sensitivity
RoHS compliant
