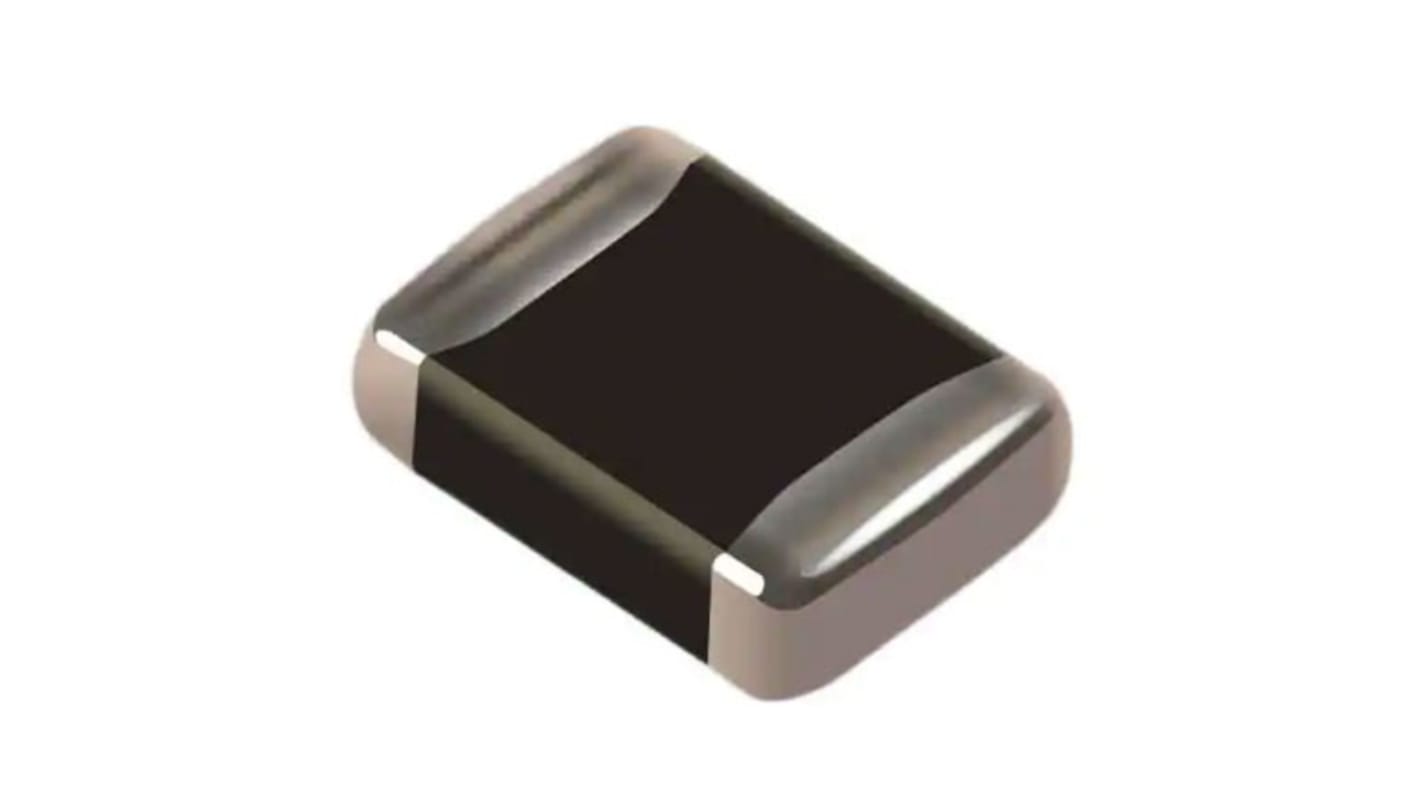

Bourns, ZVHT Varistor 210 pF 1 A, Clamping 33 V, Varistor 18 V, 0603
- RS Stock No.:
- 204-8750
- Mfr. Part No.:
- ZV11K0603300NIR1HT
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 50 units)*
£4.30
(exc. VAT)
£5.15
(inc. VAT)
Add 650 units to get free delivery
In Stock
- 1,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.086 | £4.30 |
| 250 - 950 | £0.078 | £3.90 |
| 1000 - 1950 | £0.066 | £3.30 |
| 2000 + | £0.063 | £3.15 |
*price indicative
- RS Stock No.:
- 204-8750
- Mfr. Part No.:
- ZV11K0603300NIR1HT
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 18 V | |
| Product Type | Varistor | |
| Clamping Voltage VC | 33V | |
| Packaging | Tape & Reel | |
| Clamping Current | 1A | |
| Mount Type | Surface | |
| Series | ZVHT | |
| Maximum AC Voltage | 11V ac | |
| Maximum DC Voltage | 14V dc | |
| Maximum Surge Current | 30A | |
| Capacitance | 210pF | |
| Length | 1.6mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | UL, RoHS | |
| Termination Style | Surface Mount | |
| Depth | 0.8mm | |
| Thickness | 0.95mm | |
| Package/Case | 0603 | |
| Energy Rating | 0.2J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 18 V | ||
Product Type Varistor | ||
Clamping Voltage VC 33V | ||
Packaging Tape & Reel | ||
Clamping Current 1A | ||
Mount Type Surface | ||
Series ZVHT | ||
Maximum AC Voltage 11V ac | ||
Maximum DC Voltage 14V dc | ||
Maximum Surge Current 30A | ||
Capacitance 210pF | ||
Length 1.6mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals UL, RoHS | ||
Termination Style Surface Mount | ||
Depth 0.8mm | ||
Thickness 0.95mm | ||
Package/Case 0603 | ||
Energy Rating 0.2J | ||
Automotive Standard No | ||
- COO (Country of Origin):
- SI
The Bourns ZVHT series low voltage multi-layered varistor with 210pF capacitance is designed to protect sensitive electronic devices against high voltage surges in the low voltage region.
Broad range of current and energy handling capabilities
Short response time
Low sensitivity
RoHS compliant
