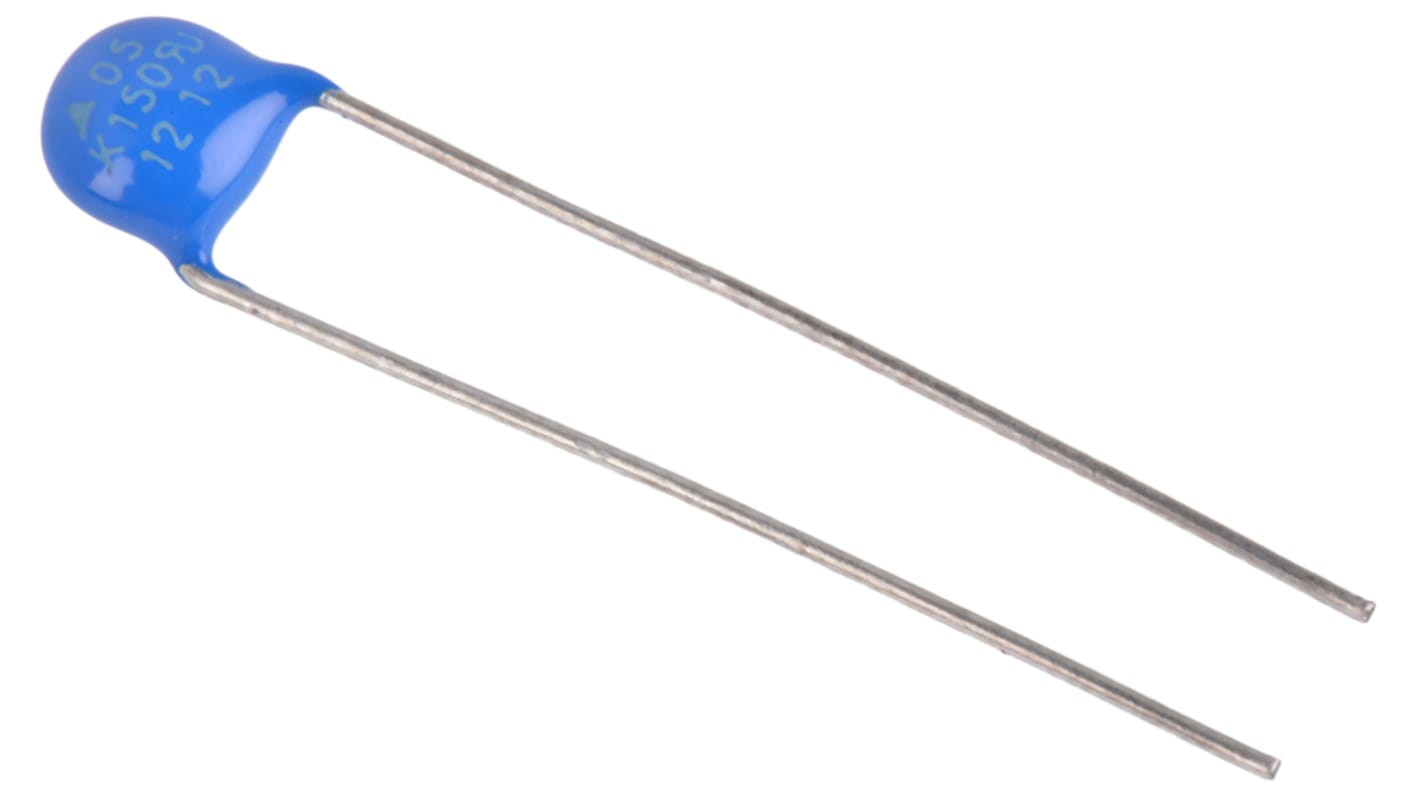

EPCOS, B722 Standard Metal Oxide Varistor 29700 pF 100 A, Clamping 2970 V, Varistor 18 to 1800 V
- RS Stock No.:
- 170-2900
- Mfr. Part No.:
- B72205S0151K101
- Brand:
- EPCOS
Subtotal (1 reel of 1000 units)*
£99.00
(exc. VAT)
£119.00
(inc. VAT)
Add 1000 units to get free delivery
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.099 | £99.00 |
*price indicative
- RS Stock No.:
- 170-2900
- Mfr. Part No.:
- B72205S0151K101
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Metal Oxide Varistor | |
| Varistor Voltage | 18 to 1800 V | |
| Clamping Voltage VC | 2970V | |
| Clamping Current | 100A | |
| Mount Type | Lead | |
| Series | B722 Standard | |
| Maximum AC Voltage | 1100V ac | |
| Diameter | 10 mm | |
| Maximum Surge Current | 8000A | |
| Maximum DC Voltage | 1465V dc | |
| Capacitance | 29700pF | |
| Minimum Operating Temperature | -40°C | |
| Length | 33.5mm | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 85°C | |
| Depth | 3.8mm | |
| Standards/Approvals | CSA, IEC, CQC, UL, VDE | |
| Thickness | 3.8mm | |
| Termination Style | Radial | |
| Automotive Standard | No | |
| Lead Pitch | 7.5mm | |
| Energy Rating | 1J | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Metal Oxide Varistor | ||
Varistor Voltage 18 to 1800 V | ||
Clamping Voltage VC 2970V | ||
Clamping Current 100A | ||
Mount Type Lead | ||
Series B722 Standard | ||
Maximum AC Voltage 1100V ac | ||
Diameter 10 mm | ||
Maximum Surge Current 8000A | ||
Maximum DC Voltage 1465V dc | ||
Capacitance 29700pF | ||
Minimum Operating Temperature -40°C | ||
Length 33.5mm | ||
Pin Count 2 | ||
Maximum Operating Temperature 85°C | ||
Depth 3.8mm | ||
Standards/Approvals CSA, IEC, CQC, UL, VDE | ||
Thickness 3.8mm | ||
Termination Style Radial | ||
Automotive Standard No | ||
Lead Pitch 7.5mm | ||
Energy Rating 1J | ||
- COO (Country of Origin):
- CN
Epcos - Leaded varistors, StandarD series
Round Varistor elements, leaded
Epoxy coating to UL94V-0
High surge current rating
