RS PRO Metal Oxide Varistor, Clamping 360V
- RS Stock No.:
- 240-214
- Brand:
- RS PRO
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 240-214
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum AC Voltage Rating | 132V | |
| Maximum DC Voltage Rating | 175V | |
| Clamping Voltage | 360V | |
| Energy | 200J | |
| Series | High Power | |
| Length | 61mm | |
| Depth | 50mm | |
| Thickness | 40mm | |
| Dimensions | 61 x 50 x 40mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum AC Voltage Rating 132V | ||
Maximum DC Voltage Rating 175V | ||
Clamping Voltage 360V | ||
Energy 200J | ||
Series High Power | ||
Length 61mm | ||
Depth 50mm | ||
Thickness 40mm | ||
Dimensions 61 x 50 x 40mm | ||
- COO (Country of Origin):
- GB

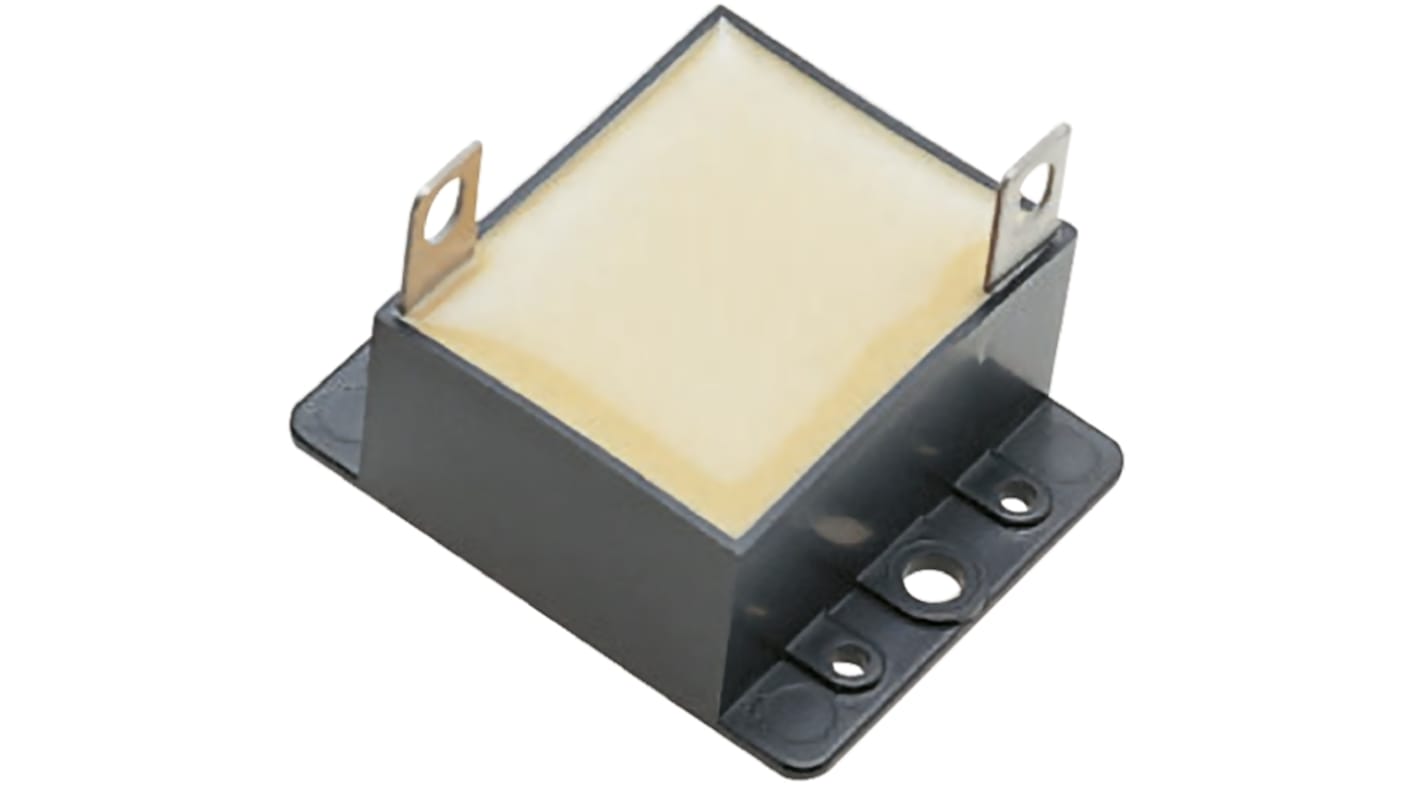

Metal Oxide Varistors High Power
High power metal oxide varistors suitable for reducing transient voltage spikes in industrial power applications.
Single and two-hole fixing types for distribution bus-bar mounting
Insulated plastic case types for flat surface mounting
High-mass large-diameter zinc oxide element
Repeatable protection against high-energy transient voltages
Operating Temperature Range: -40°C → +85°C
Insulated plastic case types for flat surface mounting
High-mass large-diameter zinc oxide element
Repeatable protection against high-energy transient voltages
Operating Temperature Range: -40°C → +85°C
