Subtotal (1 unit)*
£383.91
(exc. VAT)
£460.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £383.91 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£960.02
(exc. VAT)
£1,152.02
(inc. VAT)
- RS Stock No.:
- 890-2840
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage Rating | 240V | |
| Secondary Voltage Rating | 0 → 240V | |
| Power Rating | 1.92kVA | |
| Mounting Type | Surface Mount | |
| Knob Rotation | Clockwise | |
| Number of Phases | 1 | |
| Number of Outputs | 1 | |
| Termination Type | Wire Termination | |
| Weight | 7.8kg | |
| Dimensions | 165 x 165 x 140mm | |
| Primary Current Rating | 8A | |
| Depth | 140mm | |
| Diameter | 165mm | |
| Length | 165mm | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Construction | Encapsulated | |
| Width | 165mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 240V | ||
Secondary Voltage Rating 0 → 240V | ||
Power Rating 1.92kVA | ||
Mounting Type Surface Mount | ||
Knob Rotation Clockwise | ||
Number of Phases 1 | ||
Number of Outputs 1 | ||
Termination Type Wire Termination | ||
Weight 7.8kg | ||
Dimensions 165 x 165 x 140mm | ||
Primary Current Rating 8A | ||
Depth 140mm | ||
Diameter 165mm | ||
Length 165mm | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Construction Encapsulated | ||
Width 165mm | ||
- COO (Country of Origin):
- IN

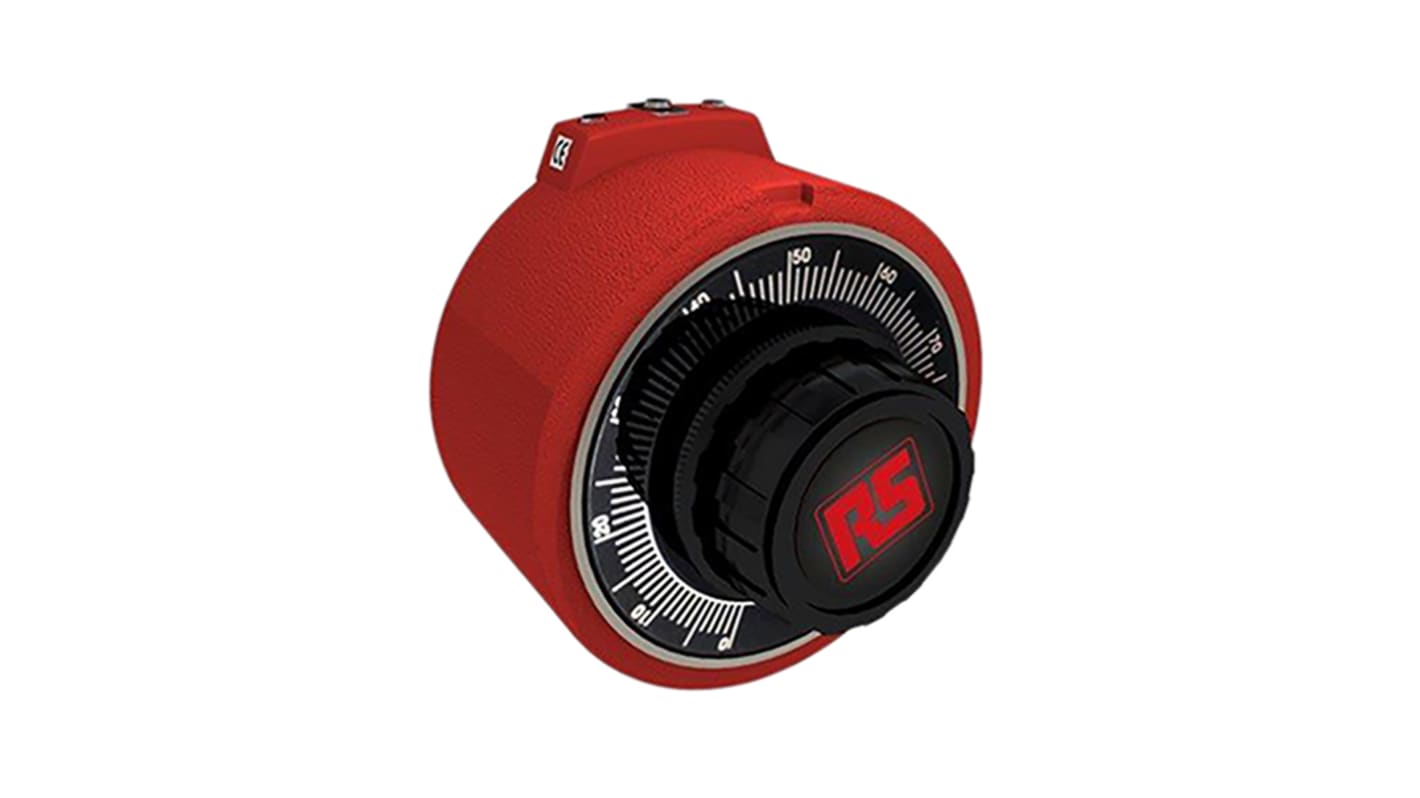

Encapsulated Variable Transformer
Professional range of single phase encapsulated variable transformers. The transformers are not designed to provide mains isolation but do operate at mains voltage. All of the transformers are open style and must be fitted in an enclosure or within a protected environment.
A robust range of open style resin cast variable transformers for flash mounting within control panels, enclosures or process control equipment
Single or three phase versions available in a range of current ratings
Continuously variable AC output voltage with overvoltage tap
Heavy duty construction
High efficiency & excellent regulation
No wave form distortion
Silver plated commutator
Over-load capacity
Smooth linear output
Negligible maintenance
Trouble free long life
Single or three phase versions available in a range of current ratings
Continuously variable AC output voltage with overvoltage tap
Heavy duty construction
High efficiency & excellent regulation
No wave form distortion
Silver plated commutator
Over-load capacity
Smooth linear output
Negligible maintenance
Trouble free long life
Variable Auto Transformers
Continuously variable alternating current (a.c.) output voltage
Rugged construction
Low operating torque
High efficiency/excellent regulation
Rugged construction
Low operating torque
High efficiency/excellent regulation
Silver-plated commutator
Low magnetising current
No waveform distortion, smooth linear output & overload capacity
Screw terminals
Complete with knob and dial
Low magnetising current
No waveform distortion, smooth linear output & overload capacity
Screw terminals
Complete with knob and dial
