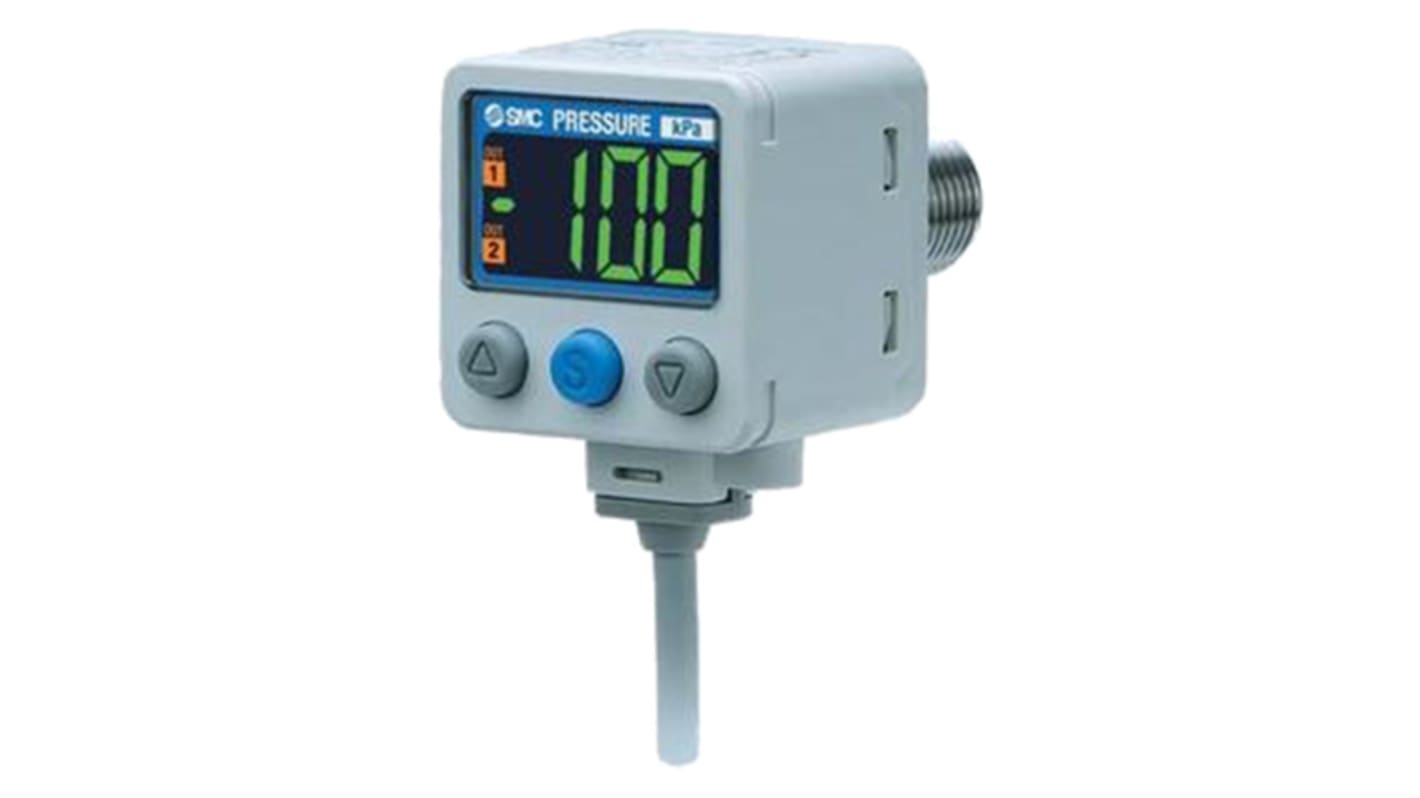

SMC Pressure Switch, R 1/4 -0.1MPa to +1 MPa
- RS Stock No.:
- 873-2679
- Mfr. Part No.:
- ISE80-02-T
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 873-2679
- Mfr. Part No.:
- ISE80-02-T
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Maximum Operating Pressure | +1 MPa | |
| Minimum Operating Pressure | -0.1MPa | |
| Pressure Type | Positive Pressure | |
| Connection | R 1/4 | |
| Suitable Media | Non Corrosive Fluid | |
| Type | Reed, Solid State | |
| Voltage Rating | 12 → 24V dc | |
| Connection Thread Size | 1/4 in | |
| Manufacturer Series | ISE80 | |
| Connection Thread Standard | R | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +50°C | |
| IP Rating | IP65 | |
| Output Type | 2 PNP Open Collector Outputs, Analogue Output | |
| Minimum Pressure Setting | -0.105MPa | |
| Maximum Pressure Setting | +1.1MPa | |
| Pressure Setting Range | -0.105 to +1.1MPa | |
Select all | ||
|---|---|---|
Brand SMC | ||
Maximum Operating Pressure +1 MPa | ||
Minimum Operating Pressure -0.1MPa | ||
Pressure Type Positive Pressure | ||
Connection R 1/4 | ||
Suitable Media Non Corrosive Fluid | ||
Type Reed, Solid State | ||
Voltage Rating 12 → 24V dc | ||
Connection Thread Size 1/4 in | ||
Manufacturer Series ISE80 | ||
Connection Thread Standard R | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +50°C | ||
IP Rating IP65 | ||
Output Type 2 PNP Open Collector Outputs, Analogue Output | ||
Minimum Pressure Setting -0.105MPa | ||
Maximum Pressure Setting +1.1MPa | ||
Pressure Setting Range -0.105 to +1.1MPa | ||
- COO (Country of Origin):
- JP
1/4 in. High Precision Digital Pressure Switch
A versatile pressure switch which can be used with both air and fluids
Choice of NPN or PNP, both with 2 open collector outputs, plus 1 Analogue output
Compound & Positive Pressure variants
High speed response with anti-chatter function
Stainless steel diaphragm prevents direct contact between sensor & measuring medium
Extremely low leakage
Functions; Auto Shift, Auto Pre-set, Key Lock, Peak & Bottom Display and Zero Out
Rear entry port R1/4, M5 x 0.8
Panel Mounting Kit Available
Operating Temperature Range 0 to +50°C
Choice of NPN or PNP, both with 2 open collector outputs, plus 1 Analogue output
Compound & Positive Pressure variants
High speed response with anti-chatter function
Stainless steel diaphragm prevents direct contact between sensor & measuring medium
Extremely low leakage
Functions; Auto Shift, Auto Pre-set, Key Lock, Peak & Bottom Display and Zero Out
Rear entry port R1/4, M5 x 0.8
Panel Mounting Kit Available
Operating Temperature Range 0 to +50°C
