SMC Vacuum Switch, -100kPa to 100 kPa
- RS Stock No.:
- 743-6623
- Mfr. Part No.:
- ZSE30AF-C6H-P-L
- Brand:
- SMC

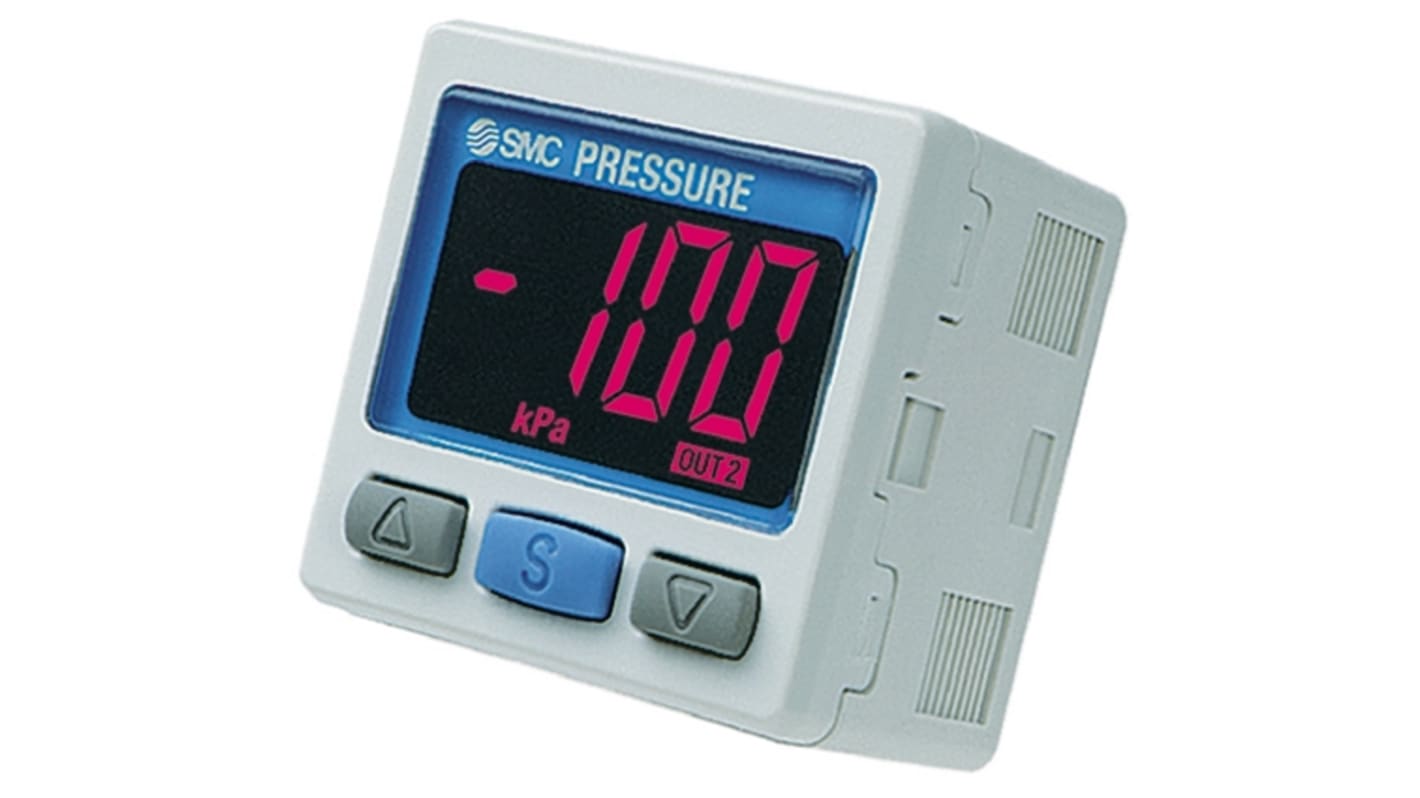

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 743-6623
- Mfr. Part No.:
- ZSE30AF-C6H-P-L
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Maximum Operating Pressure | 100 kPa | |
| Minimum Operating Pressure | -100kPa | |
| Pressure Type | Compound Pressure | |
| Suitable Media | Air, Gas | |
| Voltage Rating | 12 → 24V dc | |
| Manufacturer Series | ZSE30A(F) | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +50°C | |
| IP Rating | IP40 | |
| LED Indicator | Yes | |
Select all | ||
|---|---|---|
Brand SMC | ||
Maximum Operating Pressure 100 kPa | ||
Minimum Operating Pressure -100kPa | ||
Pressure Type Compound Pressure | ||
Suitable Media Air, Gas | ||
Voltage Rating 12 → 24V dc | ||
Manufacturer Series ZSE30A(F) | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +50°C | ||
IP Rating IP40 | ||
LED Indicator Yes | ||
Non Compliant
- COO (Country of Origin):
- JP
SMC Digital Pressure Switch
The SMC ZSE30A series digital pressure switch has a maximum operating pressure of 100kPa. It has a single output of PNP open collector. This switch is available with 2m lead wire with connector.
Note
Part number ZS-27-A is a 3-core cable assembly and suits all the now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L
Part number ZS-38-3L is a 3-core cable assembly and suits the new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P
Note
Part number ZS-27-A is a 3-core cable assembly and suits all the now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L
Part number ZS-38-3L is a 3-core cable assembly and suits the new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P
Features and Benefits
One-touch fitting of 6mm diameter connection
2-colour digital display for fast "abnormal condition" identification
Display calibration capability allowing uniformity of display
High precision resolution, typically 1/1000
User selectable pressure unit display
User-friendly, raised rubber button control
2-colour digital display for fast "abnormal condition" identification
Display calibration capability allowing uniformity of display
High precision resolution, typically 1/1000
User selectable pressure unit display
User-friendly, raised rubber button control
Certifications
CE certified
CSA certified
IP40 rated
UL approved
CSA certified
IP40 rated
UL approved
