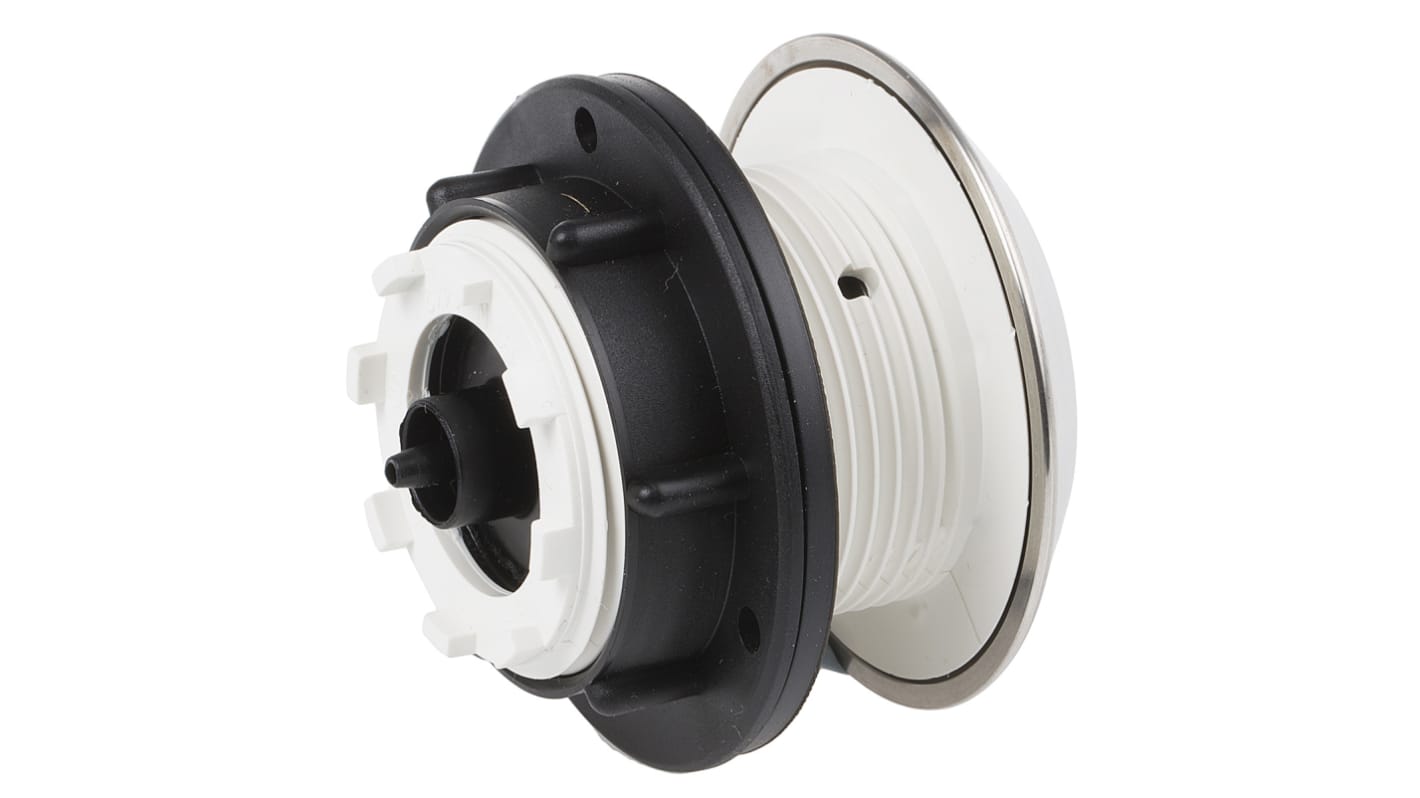

The Herga 6442 series air switch actuator has a back entry spout connection method with the thermoplastic body. Its air-operated switch system offers enhanced safety in hazardous areas by allowing remote operation of electrical circuits. This actuator is a bellows, which when compressed moves air down the air tubing to the switch element. This compressed-air then expands a bellows in the switch, which operates the electrical contacts. When used in wet environments or where electrical switching would be dangerous due to arcing, the switch and all electrical wiring can be located outside the hazardous area giving the operator total electrical isolation for the equipment. When the air switch and actuator are assembled, they form a sealed system and therefore temperature variation will cause pressure changes, which can in extreme cases affect the performance of the switch. To prevent this the total volume of the system must be kept below a critical value for a given temperature range and, to this end, a maximum length of air tubing (and hence volume) can be given for any combination of switch and actuator. The additional data tables give these lengths in metres, for moderate and extreme temperatures.

Surface mounting actuator suitable for use with all the air switches
Pushbutton requires a single mounting hole of 42mm diameter
Operating temperature ranges between 10°C and 60°C

Battery charging rooms
Laboratories, garages or wherever explosive gases, vapours or powders may exist

EN 60529
IPX4 rated
