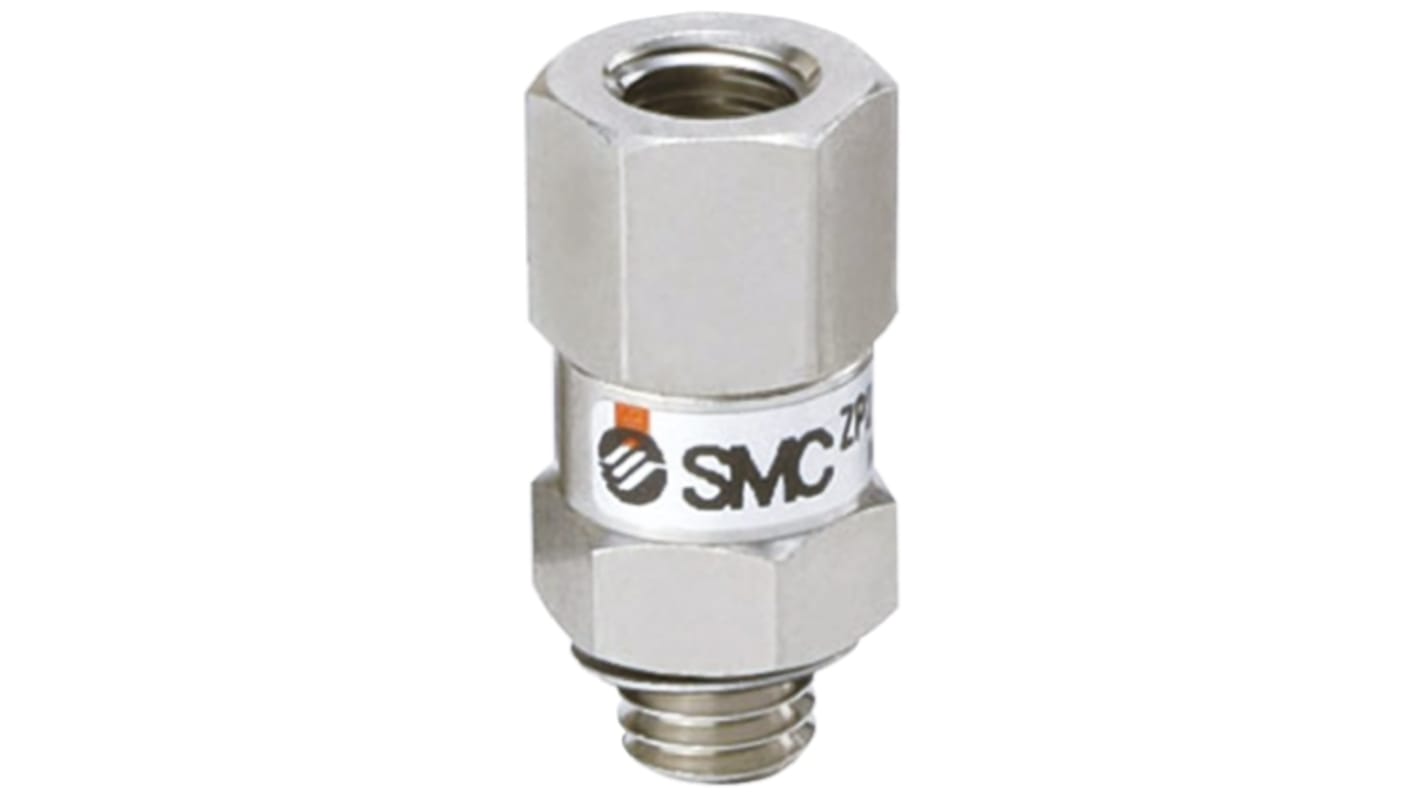

SMC Metric M5 port Vacuum Saving Valve, -100kPa to 0kPa
- RS Stock No.:
- 743-8727
- Mfr. Part No.:
- ZP2V-B5-03
- Brand:
- SMC
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 743-8727
- Mfr. Part No.:
- ZP2V-B5-03
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Size | Metric M5 | |
| Manufacturer Series | ZP2V | |
| Maximum Vacuum Pressure | 0kPa | |
| Typical Flow Rate | 3L/min | |
| Port Connection Thread Standard | Metric | |
| Minimum Vacuum Pressure | -100kPa | |
| Port Connection Thread Size | M5 | |
| Minimum Operating Temperature | +5°C | |
| Maximum Operating Temperature | +60°C | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand SMC | ||
Port Size Metric M5 | ||
Manufacturer Series ZP2V | ||
Maximum Vacuum Pressure 0kPa | ||
Typical Flow Rate 3L/min | ||
Port Connection Thread Standard Metric | ||
Minimum Vacuum Pressure -100kPa | ||
Port Connection Thread Size M5 | ||
Minimum Operating Temperature +5°C | ||
Maximum Operating Temperature +60°C | ||
Priced to Clear Yes | ||
Non Compliant
- COO (Country of Origin):
- JP
Vacuum Saving Valve
SMC ZP2V Vacuum Saving Valves ensure that there is no loss of pressure even when there is no work piece present. When multiple pads are operated by one vacuum generator, and some pads are not holding the work piece, the vacuum pressure becomes restricted and the work piece can remain held by the rest of pads.
