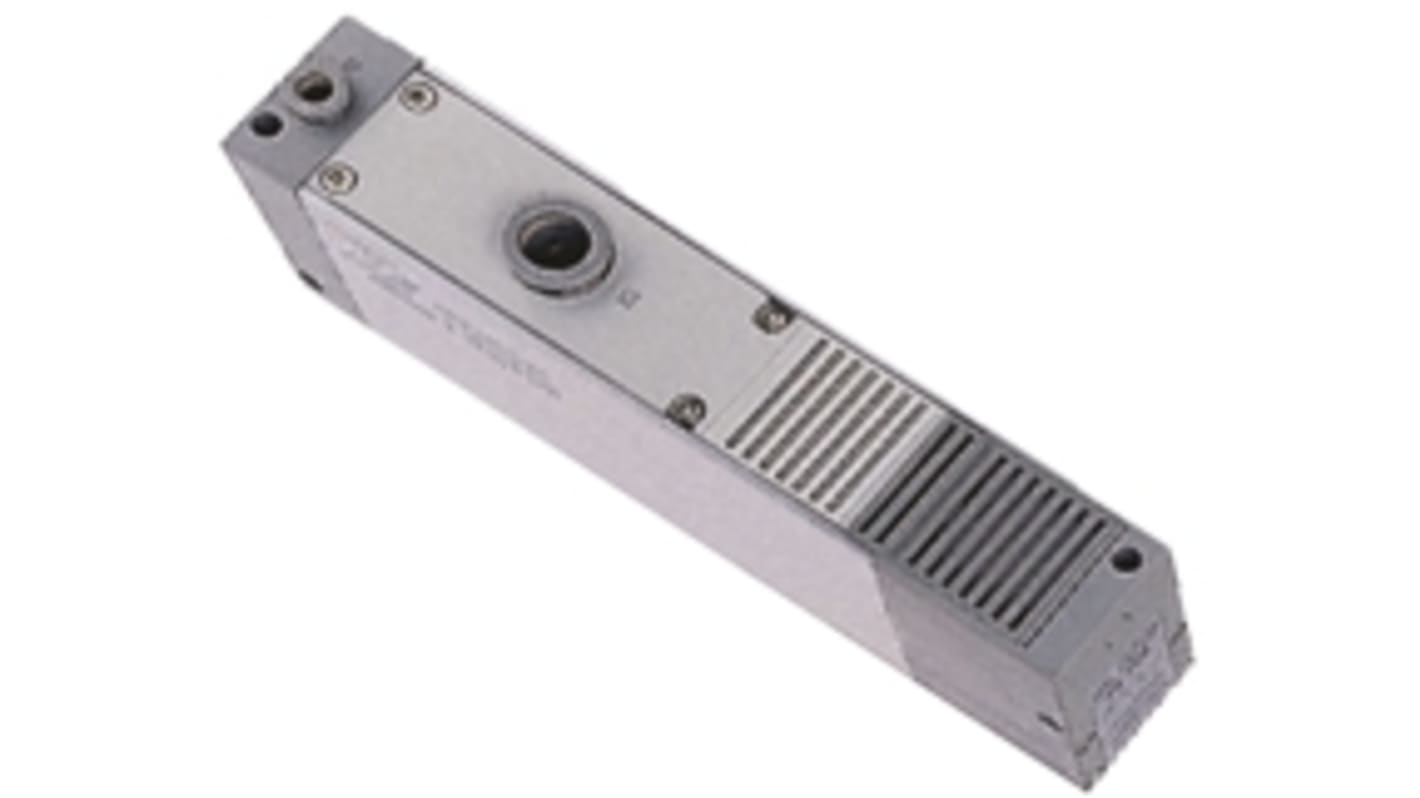

SMC Vacuum Generator, 1.2mm nozzle , -84kPa 200L/min, ZL212 series
- RS Stock No.:
- 847-8290
- Mfr. Part No.:
- ZL212-Q
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 847-8290
- Mfr. Part No.:
- ZL212-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Maximum Suction Flow | 200L/min | |
| Maximum Vacuum Pressure | -84kPa | |
| Nozzle Diameter | 1.2mm | |
| Manufacturer Series | ZL212 | |
| Silencer | Yes | |
| Maximum Input Pressure | 0.5MPa | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | +5°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Maximum Suction Flow 200L/min | ||
Maximum Vacuum Pressure -84kPa | ||
Nozzle Diameter 1.2mm | ||
Manufacturer Series ZL212 | ||
Silencer Yes | ||
Maximum Input Pressure 0.5MPa | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature +5°C | ||
- COO (Country of Origin):
- JP
Multi Stage ZL Series Vacuum Ejector
3-stage defuser system for high flow, low air consumption and energy saving
Free mount type mounting from three sides
Built-in one touch fittings - for easy piping
Built-in silencer and suction filter
1.2mm Nozzel size
Maximum 7 bar input air pressure
5 → +50 °C Temperature range
Available with or without vacuum gauge (Available in all markets via web if not shown)
Free mount type mounting from three sides
Built-in one touch fittings - for easy piping
Built-in silencer and suction filter
1.2mm Nozzel size
Maximum 7 bar input air pressure
5 → +50 °C Temperature range
Available with or without vacuum gauge (Available in all markets via web if not shown)
