ZK2 Vacuum Ejector w/ Valve 0.7mm Nozzle
- RS Stock No.:
- 124-4234
- Mfr. Part No.:
- ZK2A07K5TL-08
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-4234
- Mfr. Part No.:
- ZK2A07K5TL-08
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Maximum Suction Flow | 29L/min | |
| Maximum Vacuum Pressure | -91kPa | |
| Nozzle Diameter | 0.7mm | |
| Silencer | Yes | |
| Maximum Input Pressure | 0.6MPa | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | -5°C | |
| Inlet Port Size | 8 mm | |
Select all | ||
|---|---|---|
Brand SMC | ||
Maximum Suction Flow 29L/min | ||
Maximum Vacuum Pressure -91kPa | ||
Nozzle Diameter 0.7mm | ||
Silencer Yes | ||
Maximum Input Pressure 0.6MPa | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature -5°C | ||
Inlet Port Size 8 mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP

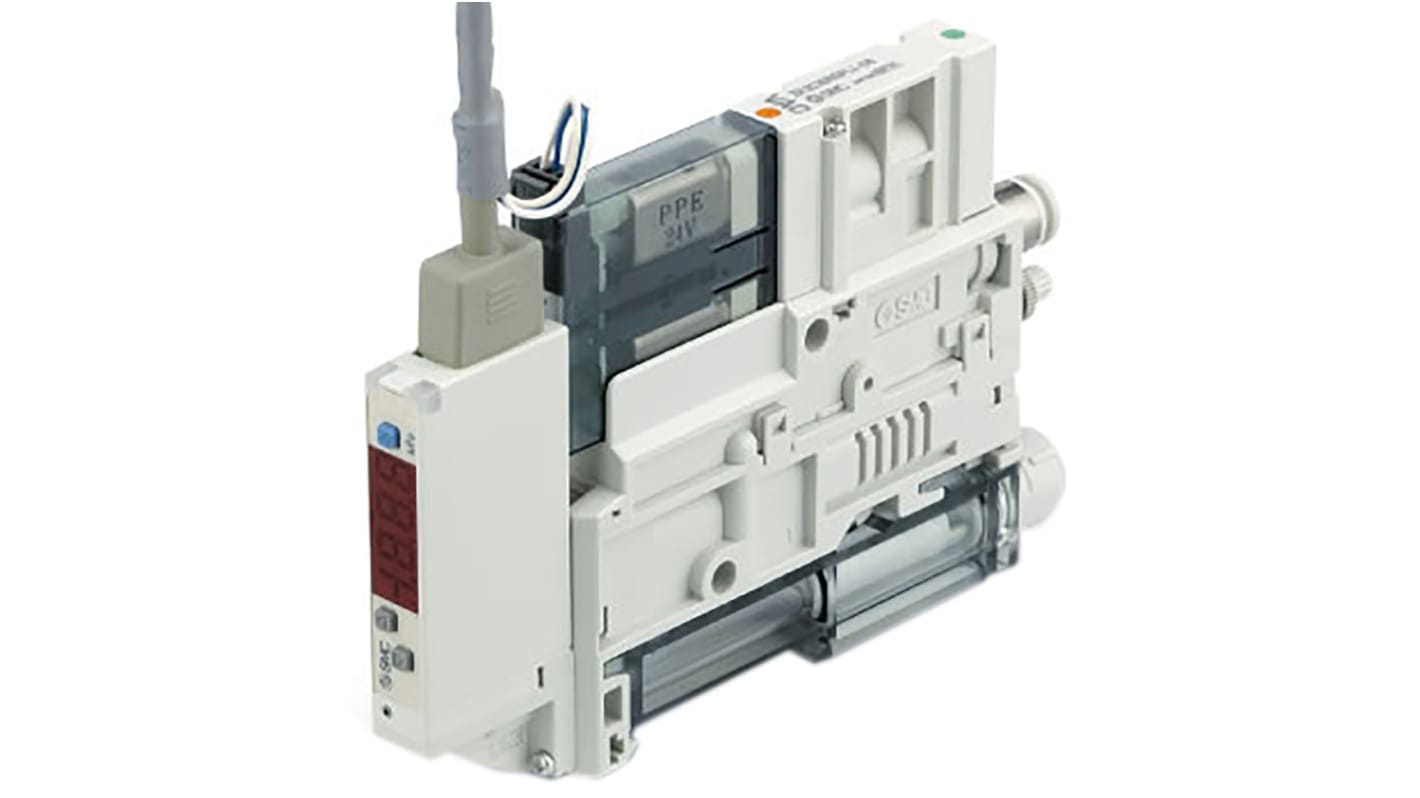

ZK2 Series Vacuum Ejector with Valve
The ZK2 series vacuum unit from SMC has been developed for a market with an increasing demand for high performance and energy efficient vacuum technology. The one piece design combines a pressure switch, control valves and vacuum ejector into one unit saving on weight and size and a two stage vacuum ejector to increase suction and reduce air consumption. The ZK2 also features a 2-port dual release and supply valve to prevent work pieces from being dropped.
Features and Benefits
• Easy to install
• Simple to maintain
• Reduced running costs
• Highly flexible configuration
• Excellent efficiency
• Integrated pressure switch
• Integrated supply and release valve
• Normally closed supply and release valves
• Simple to maintain
• Reduced running costs
• Highly flexible configuration
• Excellent efficiency
• Integrated pressure switch
• Integrated supply and release valve
• Normally closed supply and release valves
Pressure Sensor / Switch Options
The ZK2 is fitted a choice of 4 pressure sensor / pressure switch options,
• -101 to 0 kPa Pressure sensor with a single 1 to 5 V output.
• -100 to 100 kPa Pressure sensor with a single 1 to 5 V output.
• -101 to 0 kPa Digital pressure switch with 2 NPN outputs and selectable units.
• -100 to 100 kPa Digital pressure switch with a built-in energy saving function, 1 PNP output and selectable units.
• -101 to 0 kPa Pressure sensor with a single 1 to 5 V output.
• -100 to 100 kPa Pressure sensor with a single 1 to 5 V output.
• -101 to 0 kPa Digital pressure switch with 2 NPN outputs and selectable units.
• -100 to 100 kPa Digital pressure switch with a built-in energy saving function, 1 PNP output and selectable units.
