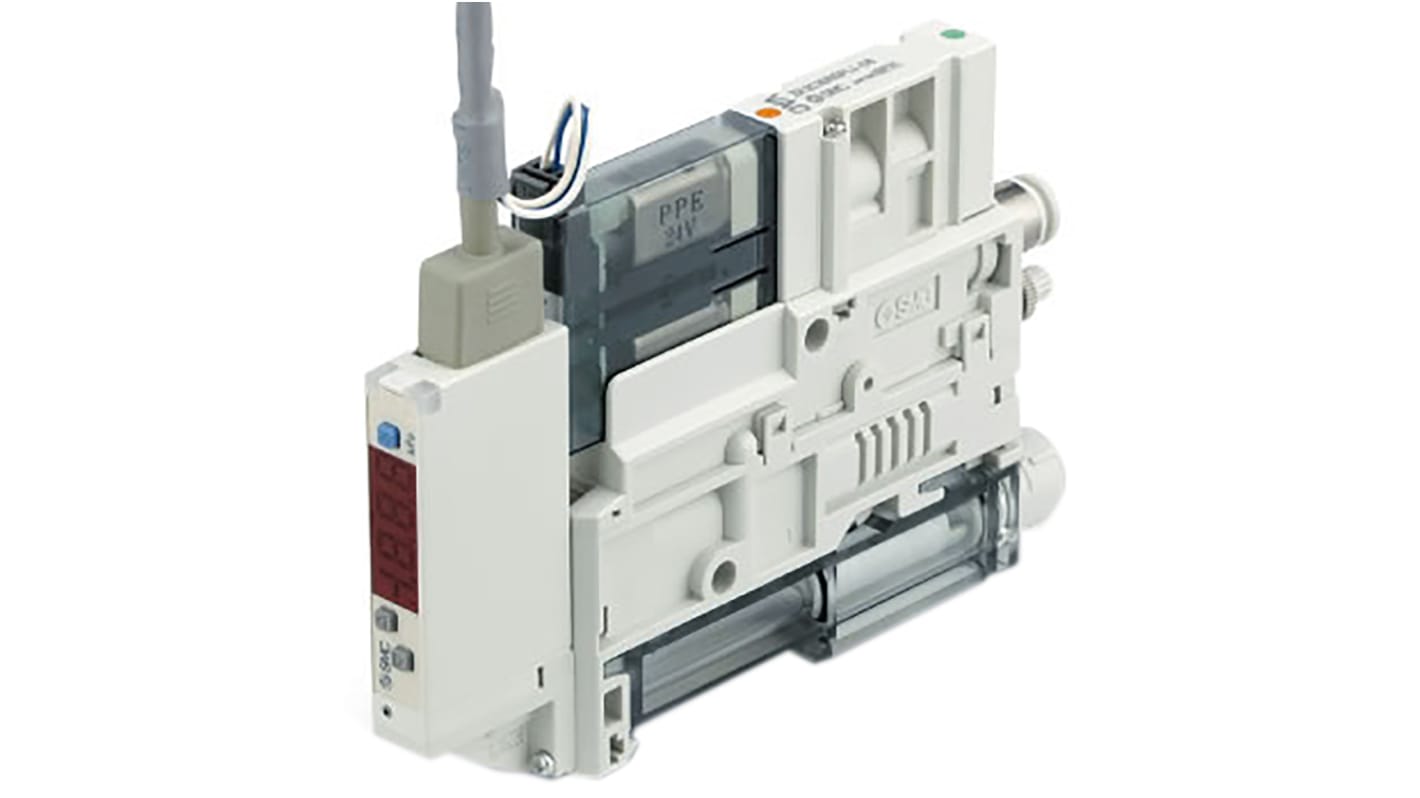

SMC Vacuum Generator, 0.7mm nozzle , -91kPa 29L/min
- RS Stock No.:
- 124-4231
- Mfr. Part No.:
- ZK2A07K5PL-08
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£255.26
(exc. VAT)
£306.31
(inc. VAT)
- RS Stock No.:
- 124-4231
- Mfr. Part No.:
- ZK2A07K5PL-08
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Maximum Suction Flow | 29L/min | |
| Maximum Vacuum Pressure | -91kPa | |
| Nozzle Diameter | 0.7mm | |
| Silencer | Yes | |
| Maximum Input Pressure | 0.6MPa | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | -5°C | |
| Inlet Port Size | 8 mm | |
Select all | ||
|---|---|---|
Brand SMC | ||
Maximum Suction Flow 29L/min | ||
Maximum Vacuum Pressure -91kPa | ||
Nozzle Diameter 0.7mm | ||
Silencer Yes | ||
Maximum Input Pressure 0.6MPa | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature -5°C | ||
Inlet Port Size 8 mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
ZK2 Series Vacuum Ejector with Valve
The ZK2 series vacuum unit from SMC has been developed for a market with an increasing demand for high performance and energy efficient vacuum technology. The one piece design combines a pressure switch, control valves and vacuum ejector into one unit saving on weight and size and a two stage vacuum ejector to increase suction and reduce air consumption. The ZK2 also features a 2-port dual release and supply valve to prevent work pieces from being dropped.
Features and Benefits
• Easy to install
• Simple to maintain
• Reduced running costs
• Highly flexible configuration
• Excellent efficiency
• Integrated pressure switch
• Integrated supply and release valve
• Normally closed supply and release valves
• Simple to maintain
• Reduced running costs
• Highly flexible configuration
• Excellent efficiency
• Integrated pressure switch
• Integrated supply and release valve
• Normally closed supply and release valves
Pressure Sensor / Switch Options
The ZK2 is fitted a choice of 4 pressure sensor / pressure switch options,
• -101 to 0 kPa Pressure sensor with a single 1 to 5 V output.
• -100 to 100 kPa Pressure sensor with a single 1 to 5 V output.
• -101 to 0 kPa Digital pressure switch with 2 NPN outputs and selectable units.
• -100 to 100 kPa Digital pressure switch with a built-in energy saving function, 1 PNP output and selectable units.
• -101 to 0 kPa Pressure sensor with a single 1 to 5 V output.
• -100 to 100 kPa Pressure sensor with a single 1 to 5 V output.
• -101 to 0 kPa Digital pressure switch with 2 NPN outputs and selectable units.
• -100 to 100 kPa Digital pressure switch with a built-in energy saving function, 1 PNP output and selectable units.
