OPTIBELT Drive Belt, belt section X13/AX 2286 mm, 1050 mm Length
- RS Stock No.:
- 217-1130
- Mfr. Part No.:
- X13 X 1080
- Brand:
- OPTIBELT
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£15.36
(exc. VAT)
£18.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.36 |
| 5 - 9 | £15.09 |
| 10 - 24 | £14.78 |
| 25 + | £14.44 |
*price indicative
- RS Stock No.:
- 217-1130
- Mfr. Part No.:
- X13 X 1080
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Drive Belt | |
| Belt Section | X13/AX | |
| Sub Type | Raw Edge Belt | |
| Series | SUPER TX | |
| Belt Material | Rubber | |
| Cord Material | Polyester | |
| Belt Width | 15mm | |
| Minimum Operating Temperature | -40°C | |
| Belt Height | 8mm | |
| Outside Length | 2286mm | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ISO 4184, DIN 2215 | |
| Inside Length | 1050mm | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Drive Belt | ||
Belt Section X13/AX | ||
Sub Type Raw Edge Belt | ||
Series SUPER TX | ||
Belt Material Rubber | ||
Cord Material Polyester | ||
Belt Width 15mm | ||
Minimum Operating Temperature -40°C | ||
Belt Height 8mm | ||
Outside Length 2286mm | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ISO 4184, DIN 2215 | ||
Inside Length 1050mm | ||

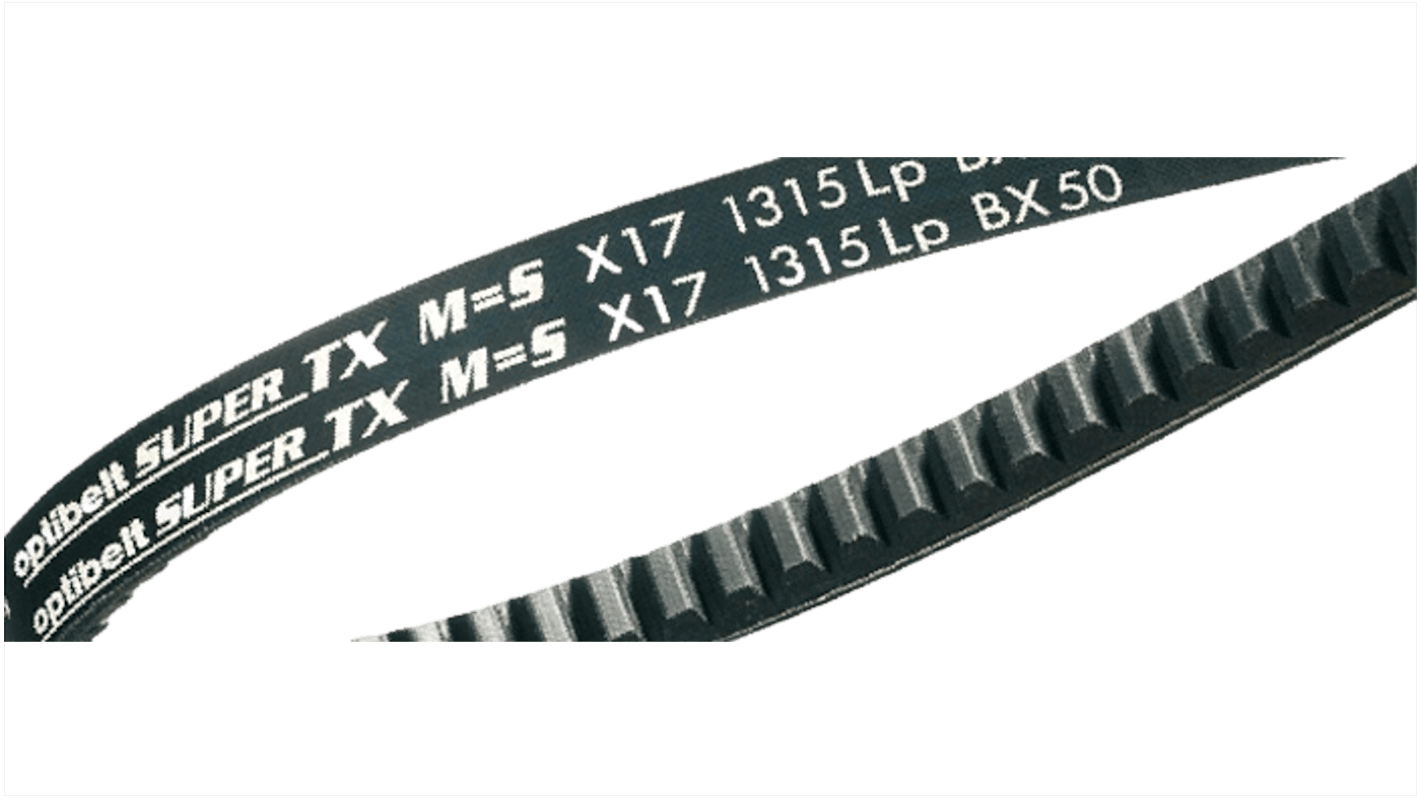

The OPTIBELT extraordinary flexibility of raw edge, moulded cogged SUPER TX V-belt enable extremely small pulley diameter to be used. It has high quality rubber compound in connection with low stretch tension cord guarantee a high power transmission capacity and an extended operational life. The-belt are always the right length for use in sets without measuring and guarantee a wide performance range and high efficiency.
Temperature range -30°C to +90°C
Low stretch
Electrically conductive
