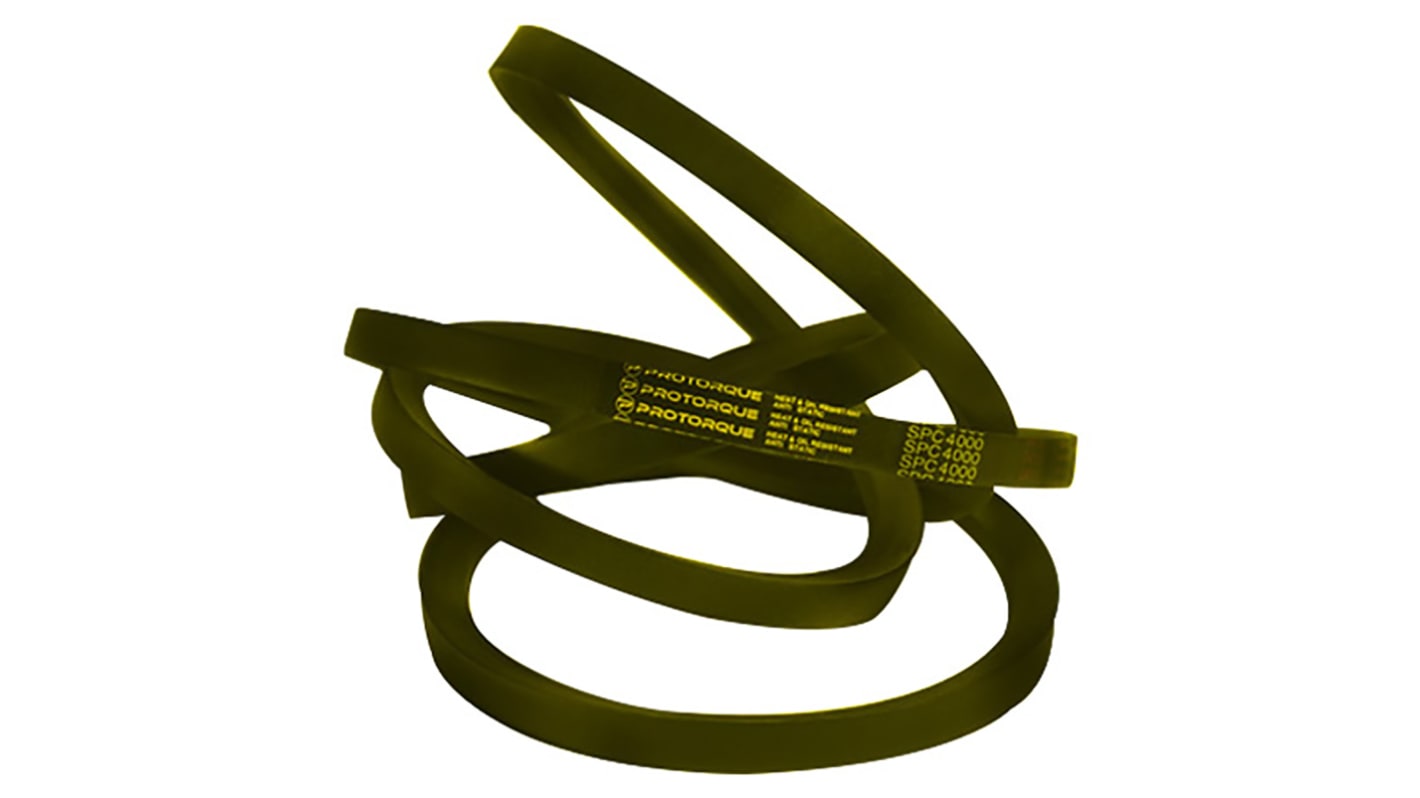

RS PRO Drive Belt, belt section SPC, 3550mm Length
- RS Stock No.:
- 136-8400
- Brand:
- RS PRO
Save 3% when you buy 10 units
Subtotal (1 unit)*
£46.93
(exc. VAT)
£56.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £46.93 |
5 - 9 | £46.00 |
10 + | £45.06 |
*price indicative
- RS Stock No.:
- 136-8400
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Belt Section | SPC | |
Outer Length | 3580mm | |
Datum Length | 3550mm | |
Inside Length | 3467mm | |
Top Width | 22mm | |
Height | 18mm | |
Minimum Pulley Diameter | 224mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +70°C | |
Length | 3550mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Belt Section SPC | ||
Outer Length 3580mm | ||
Datum Length 3550mm | ||
Inside Length 3467mm | ||
Top Width 22mm | ||
Height 18mm | ||
Minimum Pulley Diameter 224mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Length 3550mm | ||
- COO (Country of Origin):
- CN
Wrapped High Performance Wedge Belts
These high performance wedge belts from RS Pro have been designed to deliver at least double the amount of power that conventional V belts do.
Made from a heavy-duty wear resistant rubber, the RS Pro wedge belts deliver protection from oil, heat and dirt, giving them longevity.
The dynamic load capacity is a result of the specially treated low stretch polyester tension cords. These cords enable resistance to flex fatigue and shock loads.
With a flexible fibre loaded rubber base, these RS Pro wedge belts allow for high belt tensions and increased power transmission.
Made from a heavy-duty wear resistant rubber, the RS Pro wedge belts deliver protection from oil, heat and dirt, giving them longevity.
The dynamic load capacity is a result of the specially treated low stretch polyester tension cords. These cords enable resistance to flex fatigue and shock loads.
With a flexible fibre loaded rubber base, these RS Pro wedge belts allow for high belt tensions and increased power transmission.
Features and Benefits
Deeper profile for higher power
Consistent length as per ISO specifications
Operating temperature range -40 °C to +70 °C
Oil, heat and ozone resistant
Antistatic as per ISO 1813
Abrasion and wear resistant
RoHS and REACH compliant
Product Application Information
Suitable for all industrial applications where space, weight and high horsepower are important.
