Bulk discount available
Subtotal (1 unit)*
£22.27
(exc. VAT)
£26.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 10 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £22.27 |
| 5 - 9 | £21.84 |
| 10 - 24 | £21.38 |
| 25 + | £20.94 |
*price indicative
- RS Stock No.:
- 136-8394
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Belt Section | SPB | |
| Outer Length | 2672mm | |
| Datum Length | 2650mm | |
| Inside Length | 2590mm | |
| Top Width | 16.3mm | |
| Height | 13mm | |
| Minimum Pulley Diameter | 140mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +70°C | |
| Length | 2650mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Belt Section SPB | ||
Outer Length 2672mm | ||
Datum Length 2650mm | ||
Inside Length 2590mm | ||
Top Width 16.3mm | ||
Height 13mm | ||
Minimum Pulley Diameter 140mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Length 2650mm | ||
- COO (Country of Origin):
- CN

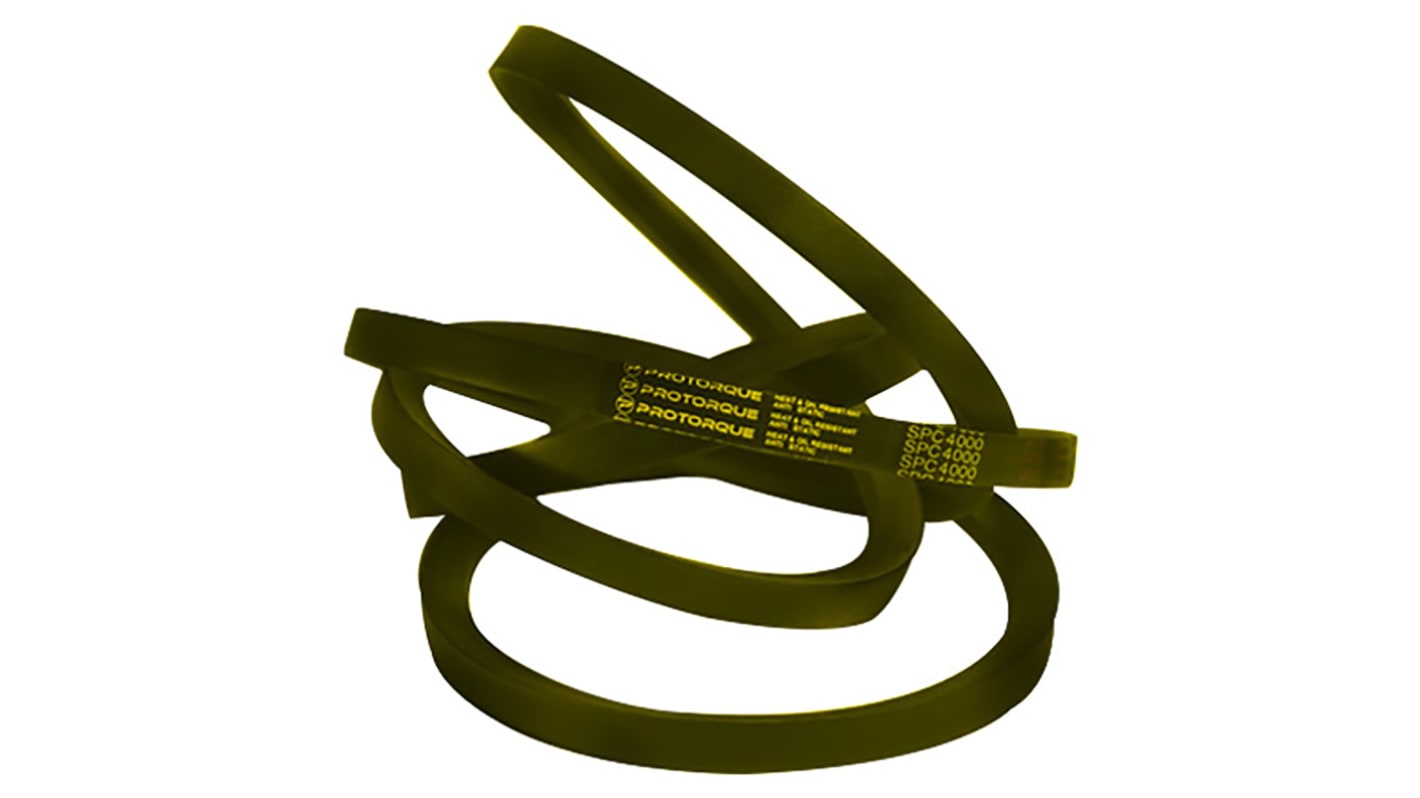

Wrapped High Performance Wedge Belts
These high performance wedge belts from RS Pro have been designed to deliver at least double the amount of power that conventional V belts do.
Made from a heavy-duty wear resistant rubber, the RS Pro wedge belts deliver protection from oil, heat and dirt, giving them longevity.
The dynamic load capacity is a result of the specially treated low stretch polyester tension cords. These cords enable resistance to flex fatigue and shock loads.
With a flexible fibre loaded rubber base, these RS Pro wedge belts allow for high belt tensions and increased power transmission.
Made from a heavy-duty wear resistant rubber, the RS Pro wedge belts deliver protection from oil, heat and dirt, giving them longevity.
The dynamic load capacity is a result of the specially treated low stretch polyester tension cords. These cords enable resistance to flex fatigue and shock loads.
With a flexible fibre loaded rubber base, these RS Pro wedge belts allow for high belt tensions and increased power transmission.
Features and Benefits
• Deeper profile for higher power
• Consistent length as per ISO specifications
• Operating temperature range -40 °C to +70 °C
• Oil, heat and ozone resistant
• Antistatic as per ISO 1813
• Abrasion and wear resistant
• RoHS and REACH compliant
Product Application Information
Suitable for all industrial applications where space, weight and high horsepower are important.
