AUV3-SQ32-0RT0K Broadcom AUV3 Series 1-LEDs UV LED 365 nm 1020 mW 35 °, 2-Pin Surface package
- RS Stock No.:
- 230-5350
- Distrelec Article No.:
- 304-22-424
- Mfr. Part No.:
- AUV3-SQ32-0RT0K
- Brand:
- Broadcom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£11.76
(exc. VAT)
£14.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 151 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 189 unit(s) shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £11.76 |
| 50 - 99 | £10.11 |
| 100 - 249 | £7.46 |
| 250 - 499 | £7.31 |
| 500 + | £6.93 |
*price indicative
- RS Stock No.:
- 230-5350
- Distrelec Article No.:
- 304-22-424
- Mfr. Part No.:
- AUV3-SQ32-0RT0K
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| UV Type | UV A | |
| Product Type | UV LED | |
| Number of LEDs | 1 | |
| Peak Wavelength | 365nm | |
| Radiant Flux | 1020mW | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Viewing Angle | 35 ° | |
| Lens Shape | Dome | |
| Number of Pins | 2 | |
| LED Material | InGaN | |
| Mount Type | Surface | |
| Width | 3.5mm | |
| Standards/Approvals | No | |
| Height | 2.48mm | |
| Length | 3.5mm | |
| Series | AUV3 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
UV Type UV A | ||
Product Type UV LED | ||
Number of LEDs 1 | ||
Peak Wavelength 365nm | ||
Radiant Flux 1020mW | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Viewing Angle 35 ° | ||
Lens Shape Dome | ||
Number of Pins 2 | ||
LED Material InGaN | ||
Mount Type Surface | ||
Width 3.5mm | ||
Standards/Approvals No | ||
Height 2.48mm | ||
Length 3.5mm | ||
Series AUV3 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW

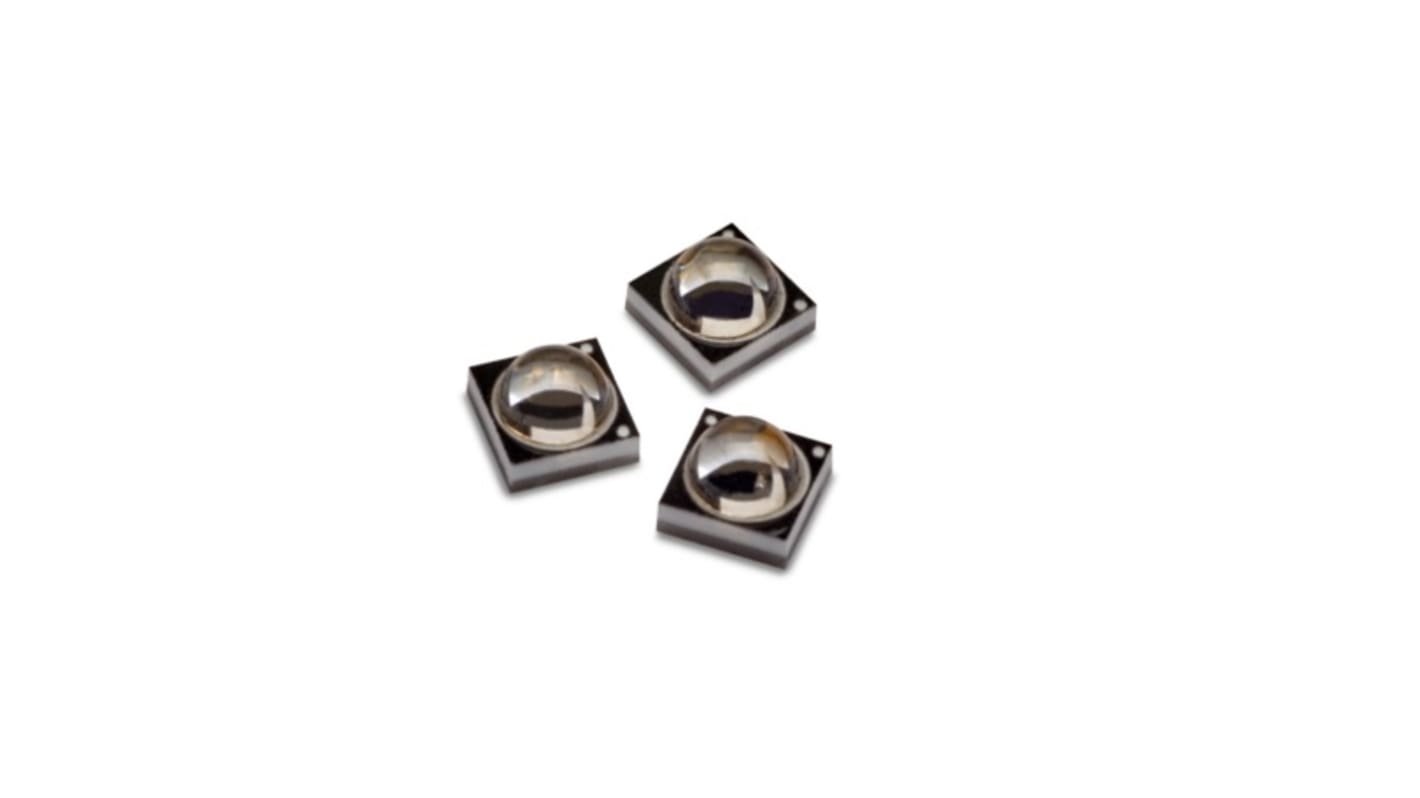

The Broadcom AUV3 series surface mount UV LEDs are energy-efficient LEDs that can be driven with high currents and can dissipate heat efficiently, resulting in higher reliability. Their low-profile package design addresses a wide variety of applications where superior robustness and high efficiency are required. They are packaged with ceramic-based materials, and the quartz lens on top of the package provides the product longevity needed for the respective end applications.
High-radiant flux output using InGaN dice technology.
Available in 360-nm to 400-nm wavelength range.
Available in 35° and 60° viewing angles.
Compatible with the reflow soldering process.
JEDEC MSL 1
