ILS-OV12-O275-VL010-SC201-W2. Intelligent LED Solutions ILS-OV12-O275-VLXXX-SC201-W2 Series 12-LEDs UV LED 275 nm 140 mW

View all UV LEDs
Bulk discount available

Subtotal (1 unit)*

£47.77

(exc. VAT)

£57.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship from another location
  • Plus 15 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£47.77
5 - 9£45.87
10 - 24£44.03
25 - 49£42.26
50 +£41.43

*price indicative

RS Stock No.:
225-0603
Distrelec Article No.:
302-96-142
Mfr. Part No.:
ILS-OV12-O275-VL010-SC201-W2.
Brand:
Intelligent LED Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Intelligent LED Solutions

Number of LEDs

12

UV Type

UV C

Product Type

UV LED

Peak Wavelength

275nm

Radiant Flux

140mW

Viewing Angle

130 °

Number of Pins

2

Mount Type

Through Hole

Length

275mm

Height

3.4mm

Standards/Approvals

IEC 62471:2006

Width

20mm

Series

ILS-OV12-O275-VLXXX-SC201-W2

Automotive Standard

No

COO (Country of Origin):
GB

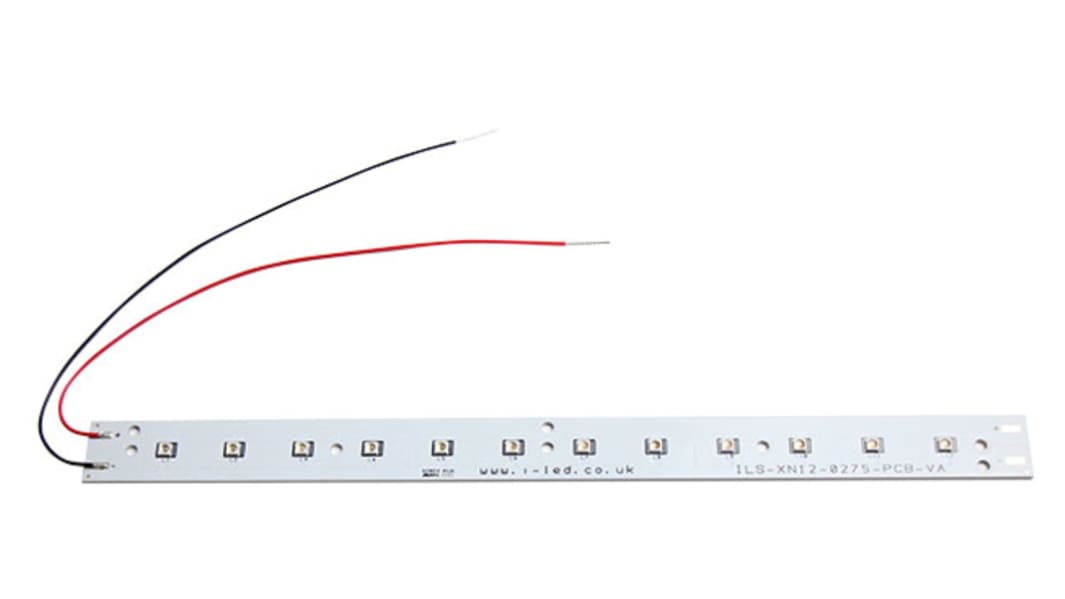

The Intelligent LED SolutionsViolet Linear Strip is available in 2 power output types, low and mid power. The OSLON UV 3636 is a robust package built on a ceramic substrate, coated in gold and has a quartz glass cover. It has been designed for multiple applications including disinfection, purification, treatment and sensing. This strip is compact, powerful LED light source built on aluminium substrates for optimal thermal management.

Available with 200mm wires

Mounting holes using M3 screws allows easy installation

Violet linear strips can be linked together to produce longer chains

Forward Current per strip is 600mA

Reverse voltage is 15V

Temperature range between 40°C and 60°C
