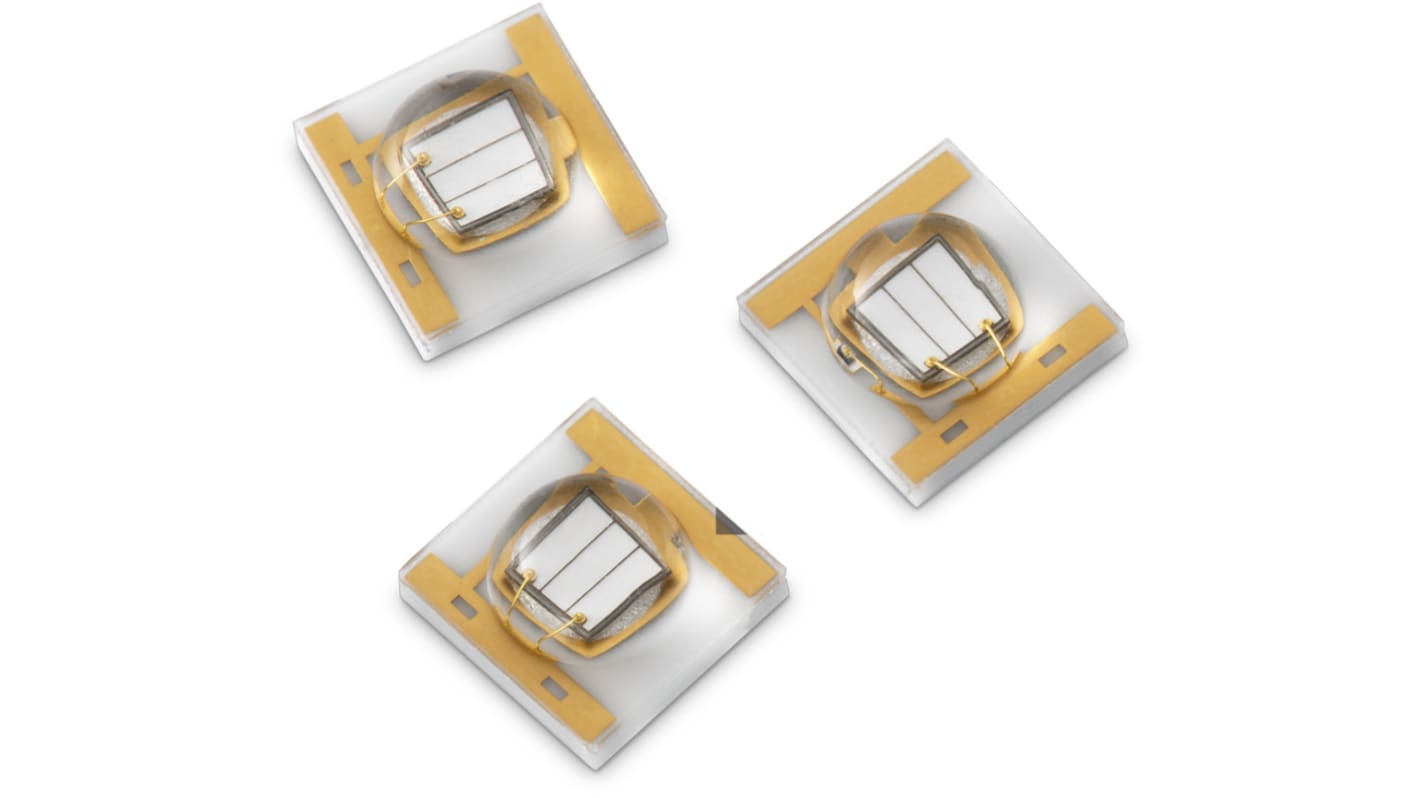

15335339AA350 Wurth Elektronik, WL-SUMW Series UV LED, 395 (Typ.)nm 1100mW 130 (Typ.) °, 2-Pin Surface Mount package
- RS Stock No.:
- 176-6074
- Mfr. Part No.:
- 15335339AA350
- Brand:
- Wurth Elektronik
85 In stock - FREE next working day delivery available
Added
Price Each
£11.39
(exc. VAT)
£13.67
(inc. VAT)
| Units | Per unit |
| 1 + | £11.39 |
- RS Stock No.:
- 176-6074
- Mfr. Part No.:
- 15335339AA350
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Characteristics
High power output UV LEDs
Low thermal resistancy
Standard soldering pad footprint
Peak wavelengths: 385, 395, 405 nm
Applications
UV Curing
Printing
Counterfeit detection
UV torch
High power output UV LEDs
Low thermal resistancy
Standard soldering pad footprint
Peak wavelengths: 385, 395, 405 nm
Applications
UV Curing
Printing
Counterfeit detection
UV torch
Specifications
Attribute | Value |
|---|---|
| Number of LEDs | 1 |
| Peak Wavelength | 395 (Typ.)nm |
| Radiant Flux | 1100mW |
| Package Type | 3535 |
| Viewing Angle | 130 (Typ.) ° |
| Lens Shape | Dome |
| Number of Pins | 2 |
| LED Material | AlInGaN |
| Mounting Type | Surface Mount |
| Height | 2.1mm |
| Length | 3.4mm |
| Width | 3.4mm |
| Series | WL-SUMW |
| Dimensions | 3.4 x 3.4 x 2.1mm |
