VAOL-3EUV0Y4 VCC, VAOL Series UV LED, 405nm 15 °, 2-Pin Through Hole package
- RS Stock No.:
- 137-1219
- Mfr. Part No.:
- VAOL-3EUV0Y4
- Brand:
- VCC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 137-1219
- Mfr. Part No.:
- VAOL-3EUV0Y4
- Brand:
- VCC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | VCC | |
| Number of LEDs | 1 | |
| Peak Wavelength | 405nm | |
| Luminous Intensity | 150 mcd | |
| Package Type | 3 mm | |
| Viewing Angle | 15 ° | |
| Number of Pins | 2 | |
| LED Material | InGaN | |
| Mounting Type | Through Hole | |
| Diameter | 3.9mm | |
| Height | 5.3mm | |
| Dimensions | 3.9 (Dia.) x 5.3mm | |
| Series | VAOL | |
Select all | ||
|---|---|---|
Brand VCC | ||
Number of LEDs 1 | ||
Peak Wavelength 405nm | ||
Luminous Intensity 150 mcd | ||
Package Type 3 mm | ||
Viewing Angle 15 ° | ||
Number of Pins 2 | ||
LED Material InGaN | ||
Mounting Type Through Hole | ||
Diameter 3.9mm | ||
Height 5.3mm | ||
Dimensions 3.9 (Dia.) x 5.3mm | ||
Series VAOL | ||

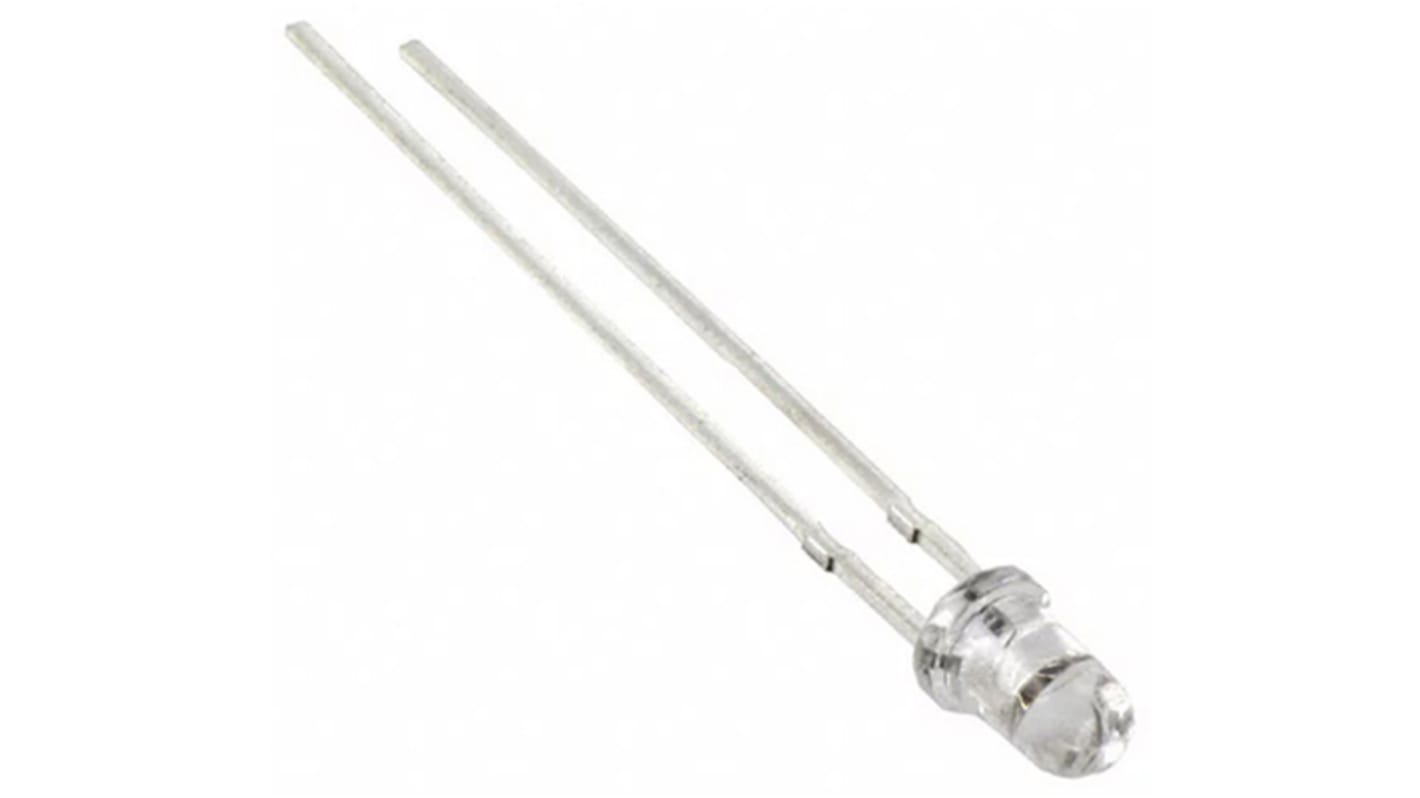

VCC Ultraviolet LED lamps, T1 3mm
UV (Ultraviolet) T1 (3mm) LED lamps from VCC. The LEDs utilise InGaN material technology and feature water-clear transparent lenses. Typical application areas include disinfection and sterilisation, adhesive curing, leak detection and security authentication.
Warning
UV LEDs emit ultraviolet light which can be hazardous to the human eye. Do not look at operating UV LEDs without necessary eye protection.
Ultraviolet (UV) LEDs, VCC
