Startech 1 port USB 1.1 over CATx Extension Cable up to40m

  • RS Stock No. 898-8393
  • Mfr. Part No. USB110EXT2
  • Brand Startech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

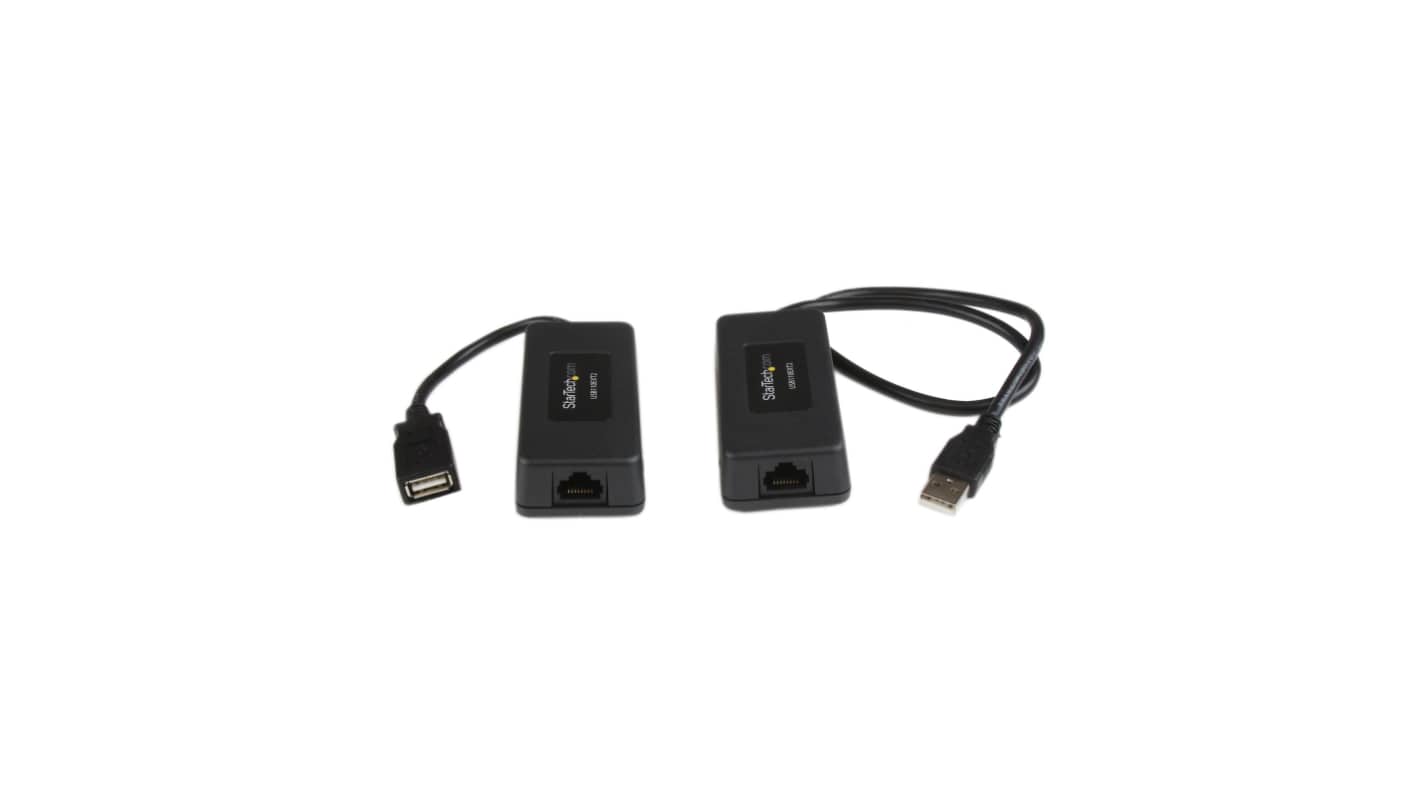

USB110EXT2 USB Over Cat5 Extender

The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.
The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.
Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Features & Benefits

• 1x USB 1.1 port, 1x RJ45 port
• Support for a maximum distance of up to 40m (131ft), over Cat5 or Cat6 cabling
• Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps
• Efficient circuit design provides up to 300mA of power at the remote end
• 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection
• Integrated USB cables
• No driver or software required
• USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 131 feet (40 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+
• Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options
• USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device

Applications

• Secured environments where the host computer must be in a secure, inaccessible location from the the keyboard, mouse, camera or other USB input devices
• Use existing in-wall Cat5/Cat6 wiring to extend USB 1.1 device connections between rooms
• Reduce cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/Cat6 cable
• Industrial control environments where the host computer must be located away from interference or contamination

What’s in the package?

• USB 1.1 Extender Local Unit
• USB 1.1 Extender Remote Unit
• Instruction Manual

KVM Extenders

Specifications
Attribute Value
USB Standard USB 1.1
Number of USB Ports 1
Extension Distance 40m
Transmission Method CATx
Local Device Dimensions 85 x 40 x 25mm
Local Device Depth 40mm
Local Device Height 25mm
Local Device Width 85mm
Remote Device Dimensions 85 x 40 x 25mm
Remote Device Depth 40mm
Remote Device Height 25mm
Remote Device Width 85mm
64 In stock - FREE next working day delivery available
Price Each
£ 88.79
(exc. VAT)
£ 106.55
(inc. VAT)
Units
Per unit
1 +
£88.79
