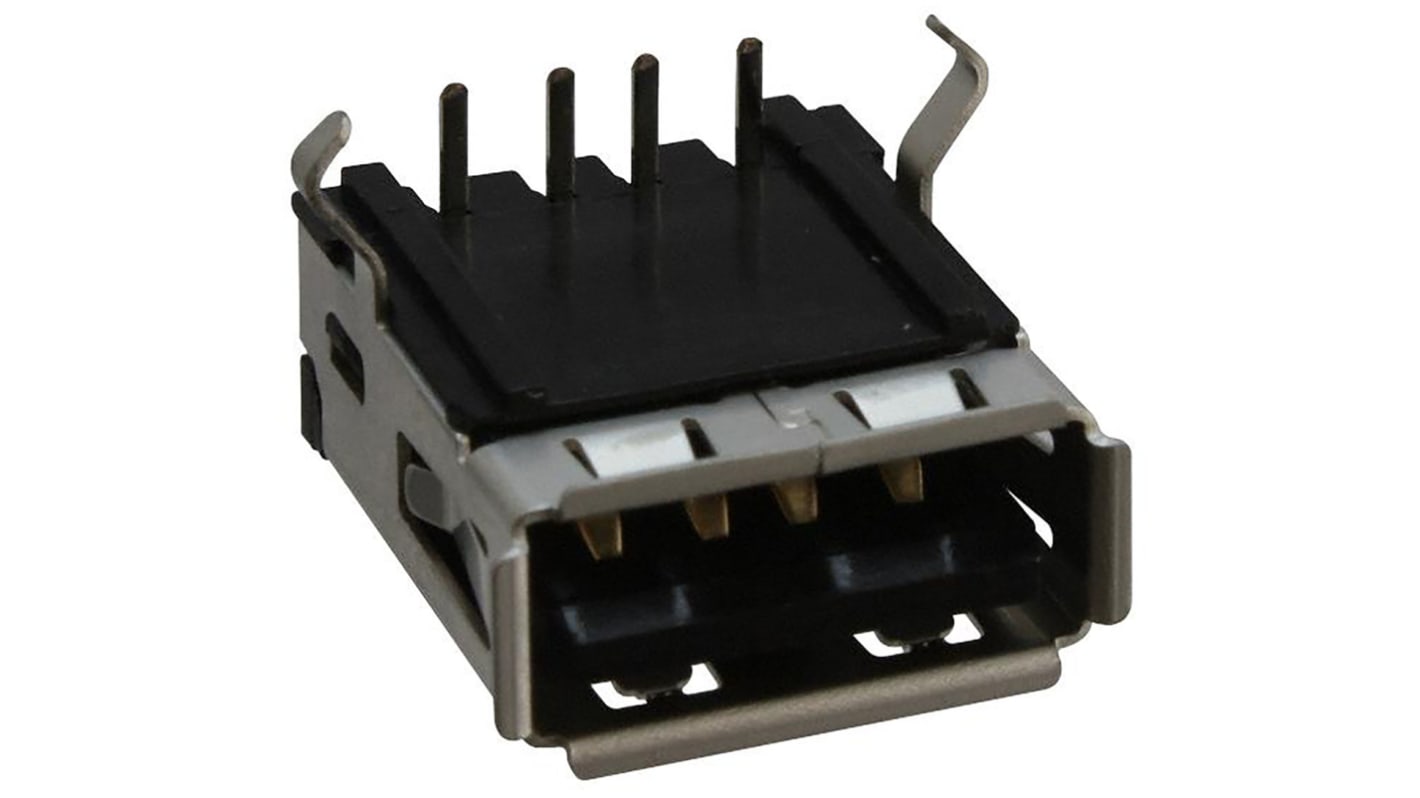

Molex Right Angle, Through Hole, Socket Type A USB Connector

RS Stock No.:: 800-6839
Mfr. Part No.:: 67643-0910
Brand:: Molex

Molex Right Angle, Through Hole, Socket Type A USB Connector

2756 In stock - FREE next working day delivery available

5 available from Europe for delivery within 1 working day(s).

Added

Price Each

£1.41

(exc. VAT)

£1.69

(inc. VAT)

Units	Per unit
1 - 14	£1.41
15 - 49	£1.20
50 - 99	£1.10
100 - 249	£0.99
250 +	£0.95

RS Stock No.:: 800-6839
Mfr. Part No.:: 67643-0910
Brand:: Molex

Technical Reference

Legislation and Compliance

Product Details

Molex Type A USB PCB Receptacle Connectors, 67643 Series

67643 series Type A USB right angle PCB mount receptacle connectors with full shielding, PCB location and retention features and keying and polarization for accurate mating. These 67643 series Type A USB connectors have 0.76 μm gold plated or gold flash contacts and are suitable for use with a PCB thickness of 1.6mm.
Stock numbers 800-6867 and 800-6879 have white nylon high temperature housings
Stock number 904-8200 has a black nylon high temperature housing.

Molex USB Connectors

Specifications

Attribute	Value
Gender	Female
Mounting Type	Through Hole
USB Type	A
Termination Method	Solder
Body Orientation	Right Angle
Number of Ports	1
Current Rating	1.5A
Voltage Rating	30.0 V
Contact Material	Phosphor Bronze
Minimum Operating Temperature	-40.0°C
Maximum Operating Temperature	+85°C
Series Number	67643
