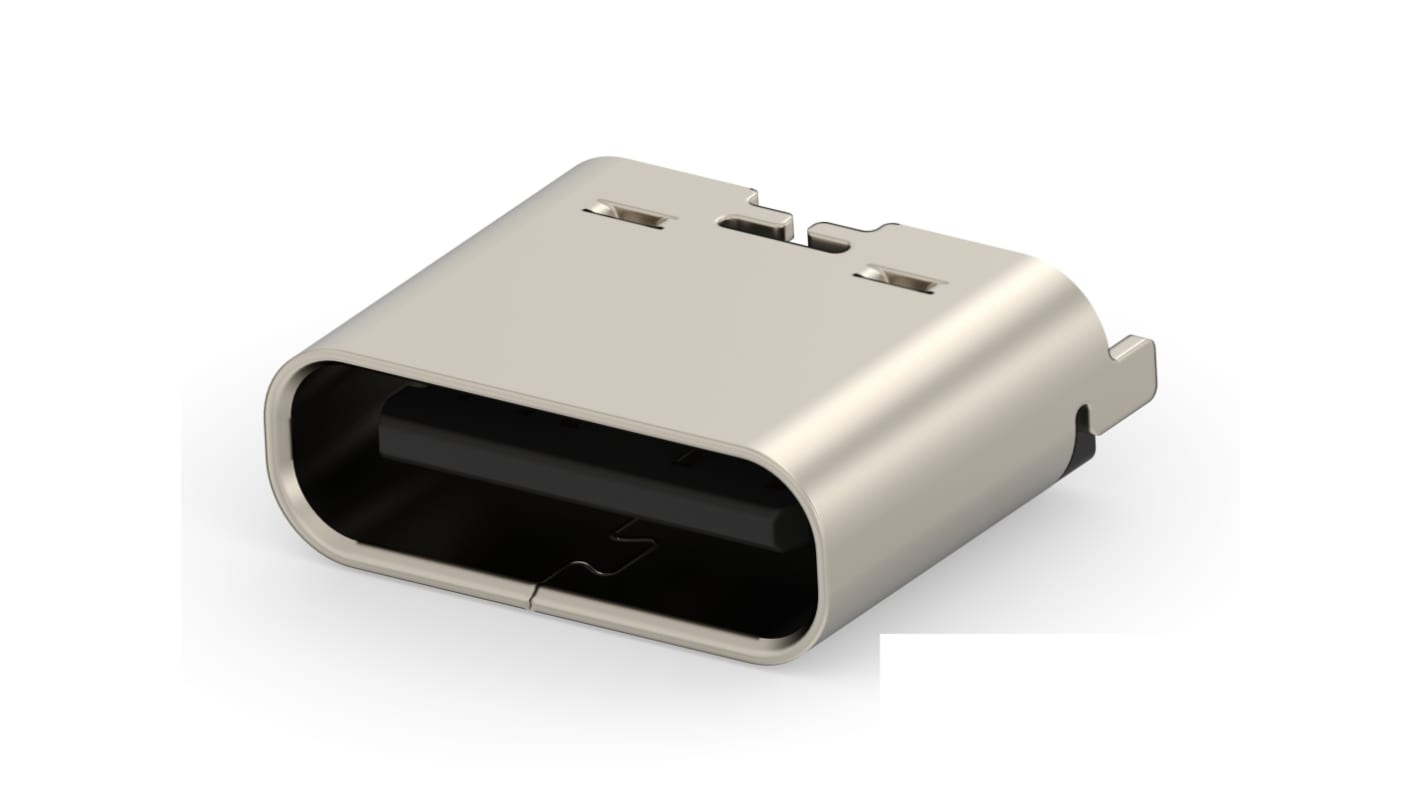

TE Connectivity Straight, Top Mount, Receptacle- Single Port Type C 2 USB C Connector
- RS Stock No.:
- 287-7371P
- Mfr. Part No.:
- 2480790-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£47.10
(exc. VAT)
£56.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9,945 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | £0.942 |
| 100 - 245 | £0.894 |
| 250 - 495 | £0.85 |
| 500 + | £0.774 |
*price indicative
- RS Stock No.:
- 287-7371P
- Mfr. Part No.:
- 2480790-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Receptacle | |
| Mounting Type | Top Mount | |
| USB Type | C | |
| Termination Method | Solder, Through Hole | |
| USB Version | 2 | |
| Body Orientation | Straight | |
| Number of Ports | 1 | |
| Current Rating | 3A | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Orientation | Horizontal | |
| Series Number | 2480 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Receptacle | ||
Mounting Type Top Mount | ||
USB Type C | ||
Termination Method Solder, Through Hole | ||
USB Version 2 | ||
Body Orientation Straight | ||
Number of Ports 1 | ||
Current Rating 3A | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Orientation Horizontal | ||
Series Number 2480 | ||
- COO (Country of Origin):
- CN
The TE Connectivity USB Type C charge only receptacles are a simplified version of a standard USB Type C receptacle that use the familiar USB Type C form factor for power only applications. USB charge only receptacles reduce the complexity and failure rate of the connector by eliminating most of the pins and associated solder points in the connector which also helps to reduce the overall cost. The 16 data transfer pins and 2 of the ground pins are removed, leaving only 4 power pins and 2 ground pins. The connectors mate with standard USB Type C plugs and cable assemblies that transfers both data and power, so there are no additional steps or hardware needed by the end user when interacting with the product. The customer end product can also be upgraded to a higher performance standard USB Type C receptacle with little to no change in the existing board design.
Durability 20000 cycles
Insulator UL 94V0 rated
Standard USB Type C interface
Mates with standard USB Type C plugs and cable assemblies
Designed to allow upgrade to standard USB Type C receptacle
Insulator UL 94V0 rated
Standard USB Type C interface
Mates with standard USB Type C plugs and cable assemblies
Designed to allow upgrade to standard USB Type C receptacle
