Bulgin Straight, Panel Mount, Socket- Single Port Type Type A 3 IP68 USB Connector
- RS Stock No.:
- 287-0926
- Mfr. Part No.:
- PX0460/A3
- Brand:
- Bulgin
Bulk discount available
Subtotal (1 unit)*
£29.01
(exc. VAT)
£34.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £29.01 |
10 - 24 | £27.79 |
25 - 49 | £26.60 |
50 - 99 | £24.77 |
100 + | £23.93 |
*price indicative
- RS Stock No.:
- 287-0926
- Mfr. Part No.:
- PX0460/A3
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Gender | Female | |
Mounting Type | Panel Mount | |
USB Type | Type A | |
Termination Method | Crimp | |
USB Version | 3 | |
IP Rating | IP68 | |
Body Orientation | Straight | |
Number of Ports | 1 | |
Current Rating | 1A | |
Voltage Rating | 5 V | |
Series | Standard Buccaneer - USB | |
Contact Material | Copper Alloy | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +70°C | |
Series Number | PX0460 | |
Orientation | Straight | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Gender Female | ||
Mounting Type Panel Mount | ||
USB Type Type A | ||
Termination Method Crimp | ||
USB Version 3 | ||
IP Rating IP68 | ||
Body Orientation Straight | ||
Number of Ports 1 | ||
Current Rating 1A | ||
Voltage Rating 5 V | ||
Series Standard Buccaneer - USB | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +70°C | ||
Series Number PX0460 | ||
Orientation Straight | ||
- COO (Country of Origin):
- CN

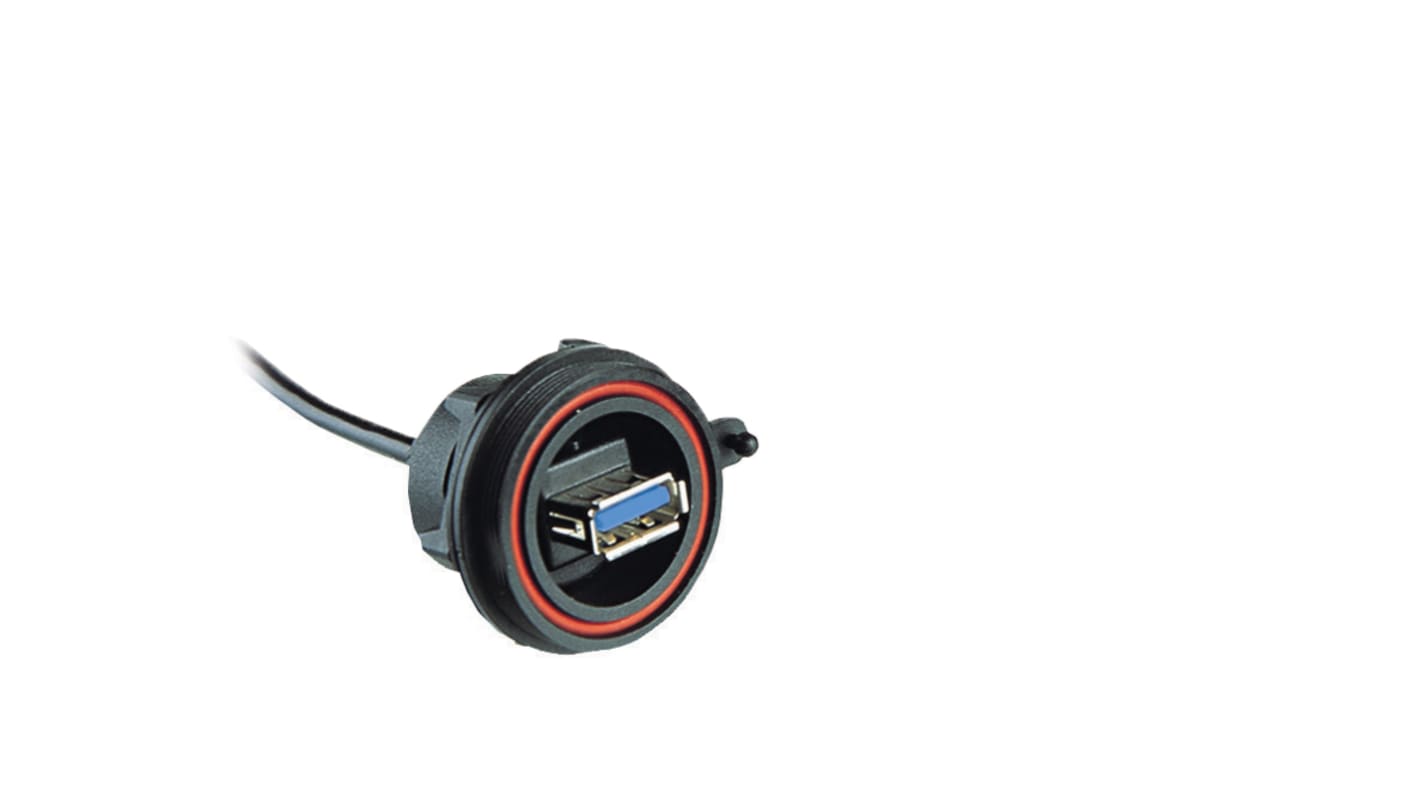

The Bulgin front panel mounting leaded USB 3.0 connector px0460 is a high-quality sealed a socket connector designed for front of panel installation. It is water and dustproof to IP68 when mated with compatible connectors, making it ideal for various industrial applications.
Sealed USB 3.0 Type A socket to 200mm long cable terminated in 5 way crimp connector for easy connection
Identical to PX0843 but with exposed braid for use with PX0465 Screening Can
Current Max -1A
Voltage Max - 5V
Number Of Contacts - 9 Contacts for reliable performance
Identical to PX0843 but with exposed braid for use with PX0465 Screening Can
Current Max -1A
Voltage Max - 5V
Number Of Contacts - 9 Contacts for reliable performance
