Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

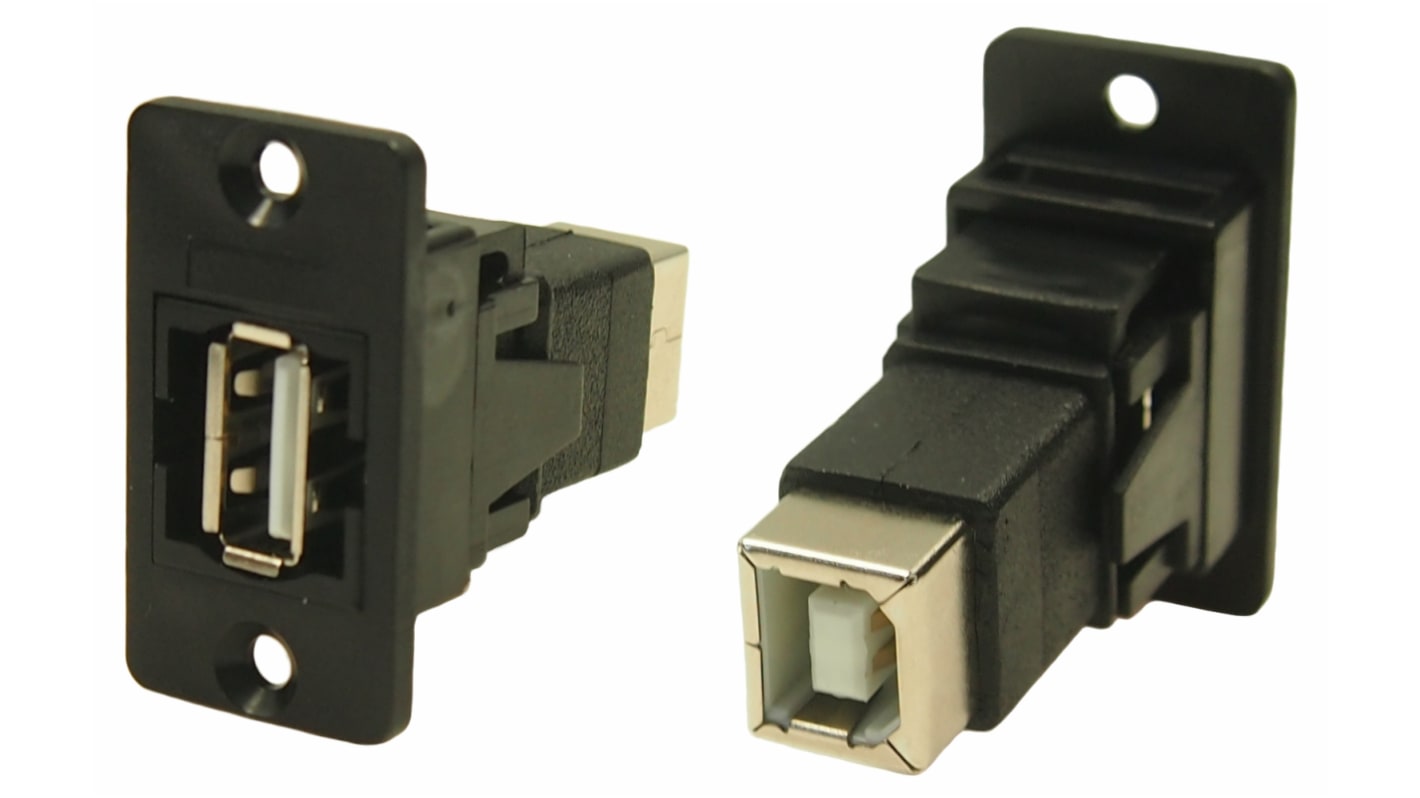

RS PRO Slim Front Mounted USB 2.0 A-B
Introducing from RS PRO a range of high-quality USB Type A-B connectors with female to female gender connections. These USB 2.0 connectors take up minimal space and are perfect for custom USB port interface configurations that include rack panels, enclosures, and electronic equipment. USB connectors are commonly used in audio & video applications such a television, DVDs, and computers.
Features and Benefits
USB 2.0 Connector
Type A-B, female receptacle
Metal frame feedthrough
Standard rectangular cut-out
Optional hole mounting
Use standard cable for each connector style
Low rear profile ideal for applications with minimal space
No soldering or punch termination
Compatible with standard USB cables
Type A-B, female receptacle
Metal frame feedthrough
Standard rectangular cut-out
Optional hole mounting
Use standard cable for each connector style
Low rear profile ideal for applications with minimal space
No soldering or punch termination
Compatible with standard USB cables
Material
Insert: ABS UL94 HB
Plastic Frame: Polyamide UL94 V2
Shell: Nickel-plated steel
Contacts: Gold Plated
Plastic Frame: Polyamide UL94 V2
Shell: Nickel-plated steel
Contacts: Gold Plated
Specifications
Voltage rating: 30V AC
Current rating: 1.5 A max
Contact resistance: 50mΩ max
Insulation resistance: 20MΩ min
Dielectric withstanding voltage: 500V AC
Operating Temperature: -20°C to 50°C
Current rating: 1.5 A max
Contact resistance: 50mΩ max
Insulation resistance: 20MΩ min
Dielectric withstanding voltage: 500V AC
Operating Temperature: -20°C to 50°C
Variants
FAQs
How do you Identify USB 2.0 & USB 3.0?
USB white plug is USB 2.0
USB blue plug is USB 3.0
USB blue plug is USB 3.0
What does USB stand for?
USB (Universal Serial Bus) is an industrial standard that indicates the spec of cables & connectors, power supply and communication interfaces.
Applications
Audio & Video Equipment
Computers
Custom Electrical Enclosures
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Gender | Female to Female |
USB Type | A to B |
Mounting Type | Panel Mount |
Termination Method | Plug In |
USB Version | 2.0 |
Body Orientation | Straight |
Number of Ports | 2 |
Current Rating | 1.5A |
Voltage Rating | 30 V ac |
Series | FT |
Contact Material | Gold Plated |
