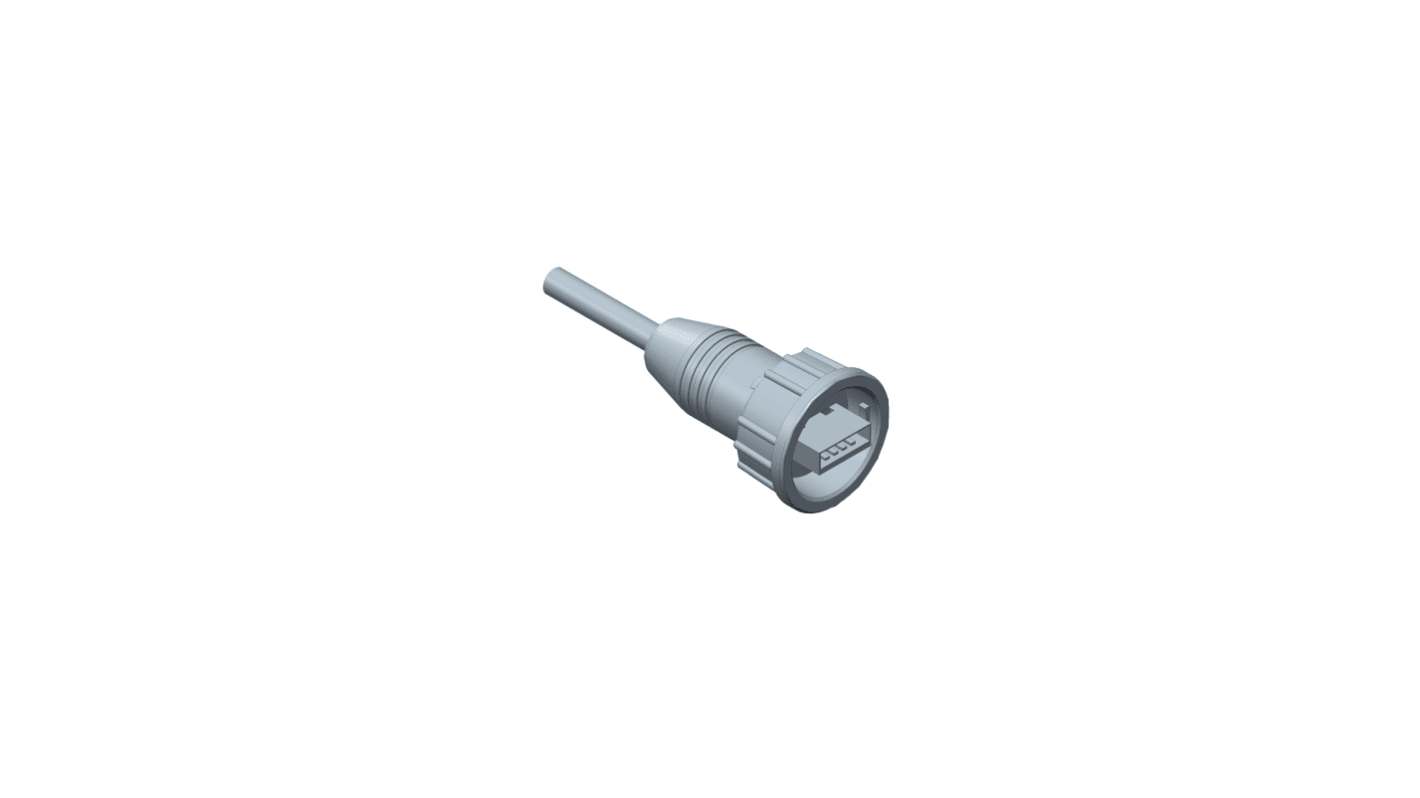

Amphenol Industrial Straight, Cable Male- 1 Port Type USB Type A IP67 USB Connector USB 2.0
- RS Stock No.:
- 174-7656
- Mfr. Part No.:
- UA-20BFMM-NL7A01
- Brand:
- Amphenol Industrial
Subtotal (1 unit)*
£10.86
(exc. VAT)
£13.03
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.86 |
*price indicative
- RS Stock No.:
- 174-7656
- Mfr. Part No.:
- UA-20BFMM-NL7A01
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | USB Connector | |
| Mount Type | Cable | |
| USB Type | USB Type A | |
| Current | 1A | |
| USB Specification | USB 2.0 | |
| Connector Gender | Male | |
| IP Rating | IP67 | |
| Orientation | Straight | |
| Number of Ports | 1 | |
| Voltage | 100V | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Series | UA | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type USB Connector | ||
Mount Type Cable | ||
USB Type USB Type A | ||
Current 1A | ||
USB Specification USB 2.0 | ||
Connector Gender Male | ||
IP Rating IP67 | ||
Orientation Straight | ||
Number of Ports 1 | ||
Voltage 100V | ||
Termination Type Solder | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Contact Material Copper Alloy | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Series UA | ||
- COO (Country of Origin):
- CN
The Amphenol UA series, Type A USB 2. 0 connector without strain relief have female connector housing gender with cable length of 1 meter and current rating of 1A.
RoHS compliant
IP67 waterproof rating
