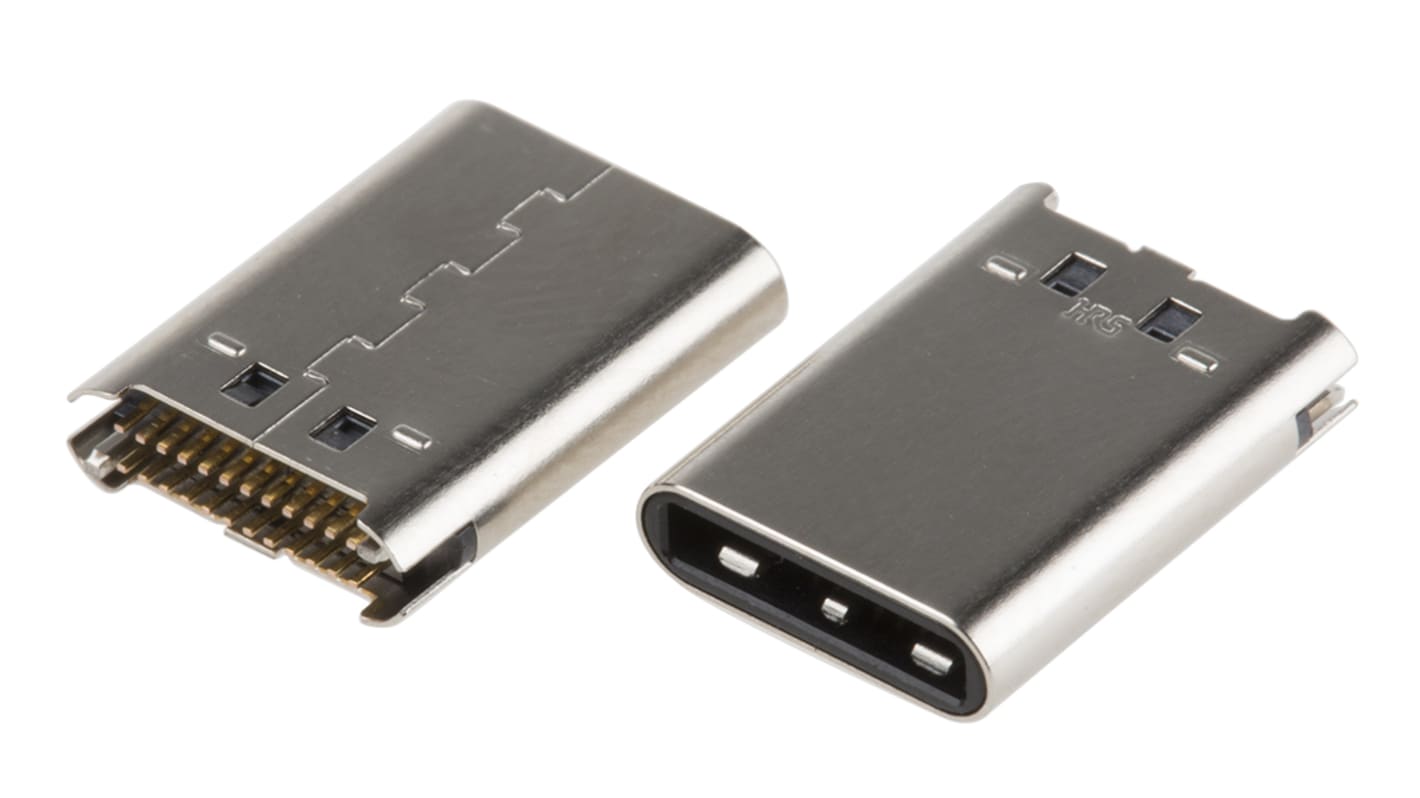

Hirose Straight, PCB Mount, Plug- Single Port Type C 3.1 USB Connector
- RS Stock No.:
- 173-9647
- Mfr. Part No.:
- CX60-24S-UNIT
- Brand:
- Hirose
Bulk discount available
Subtotal (1 pack of 150 units)*
£188.70
(exc. VAT)
£226.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 450 unit(s) ready to ship
- Plus 999,999,450 unit(s) shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
150 - 150 | £1.258 | £188.70 |
300 - 300 | £1.069 | £160.35 |
450 - 450 | £0.944 | £141.60 |
600 - 600 | £0.865 | £129.75 |
750 + | £0.842 | £126.30 |
*price indicative
- RS Stock No.:
- 173-9647
- Mfr. Part No.:
- CX60-24S-UNIT
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirose | |
Gender | Male | |
Mounting Type | PCB Mount | |
USB Type | C | |
Termination Method | Solder | |
USB Version | 3.1 | |
Body Orientation | Straight | |
Number of Ports | 1 | |
Current Rating | 1.25A | |
Voltage Rating | 20.0 V | |
Series | CX | |
Contact Material | Copper Alloy | |
Minimum Operating Temperature | -30.0°C | |
Maximum Operating Temperature | +85°C | |
Series Number | 60 | |
Select all | ||
---|---|---|
Brand Hirose | ||
Gender Male | ||
Mounting Type PCB Mount | ||
USB Type C | ||
Termination Method Solder | ||
USB Version 3.1 | ||
Body Orientation Straight | ||
Number of Ports 1 | ||
Current Rating 1.25A | ||
Voltage Rating 20.0 V | ||
Series CX | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -30.0°C | ||
Maximum Operating Temperature +85°C | ||
Series Number 60 | ||
- COO (Country of Origin):
- KR
The Next-Generation USB Standard "USB Type-C™" Connector (USB Type-C™ is a registered trademark of USB Implementers Forum)
Reversible interface for easy mating
Supports 10Gbps Transmission (USB 3.1 Gen.2)
Clear tactile click (Excellent locking)
Design with superior mechanical strength
Plug: Slim overmold design
Receptacle: Top-mount and mid-mount types are available. Both types offer a Hybrid PCB termination featuring easy solder reworking. The Double-row SMT type is excellent for high-speed transmission
Supports 10Gbps Transmission (USB 3.1 Gen.2)
Clear tactile click (Excellent locking)
Design with superior mechanical strength
Plug: Slim overmold design
Receptacle: Top-mount and mid-mount types are available. Both types offer a Hybrid PCB termination featuring easy solder reworking. The Double-row SMT type is excellent for high-speed transmission
