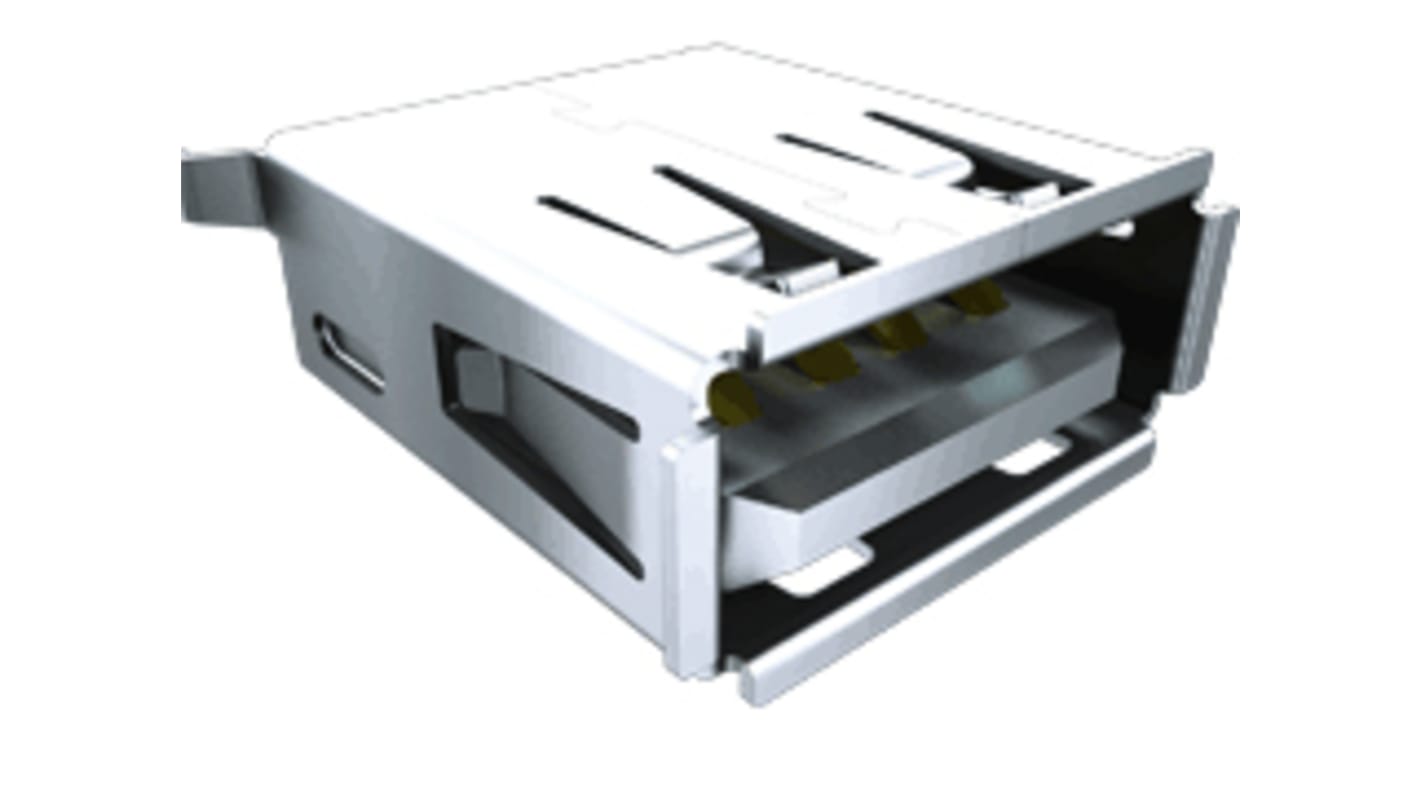

Samtec, USB-A USB Connector, Through Hole, Socket 2.0 A, Solder, Right Angle- Single Port

  • RS Stock No. 161-2303
  • Mfr. Part No. USB-A-D-F-B-TH
  • Brand Samtec
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

USB 2.0 Interface, Type A

Available in black or white insulators
Available in standard or high-retention
Available with though-hole or surface mount tails
Cost saving flash gold plating available
Dual stack jack available

Specifications
Attribute Value
Gender Female
Mounting Type Through Hole
USB Type A
Termination Method Solder
USB Version 2.0
Body Orientation Right Angle
Number of Ports 1
Voltage Rating 30.0 V
Series USB-A
Contact Material Phosphor Bronze
Minimum Operating Temperature -50.0°C
Maximum Operating Temperature +85°C
Available to back order for despatch 15/09/2020
Price Each (In a Tray of 10)
£ 0.879
(exc. VAT)
£ 1.055
(inc. VAT)
Units
Per unit
Per Tray*
10 +
£0.879
£8.79
*price indicative
