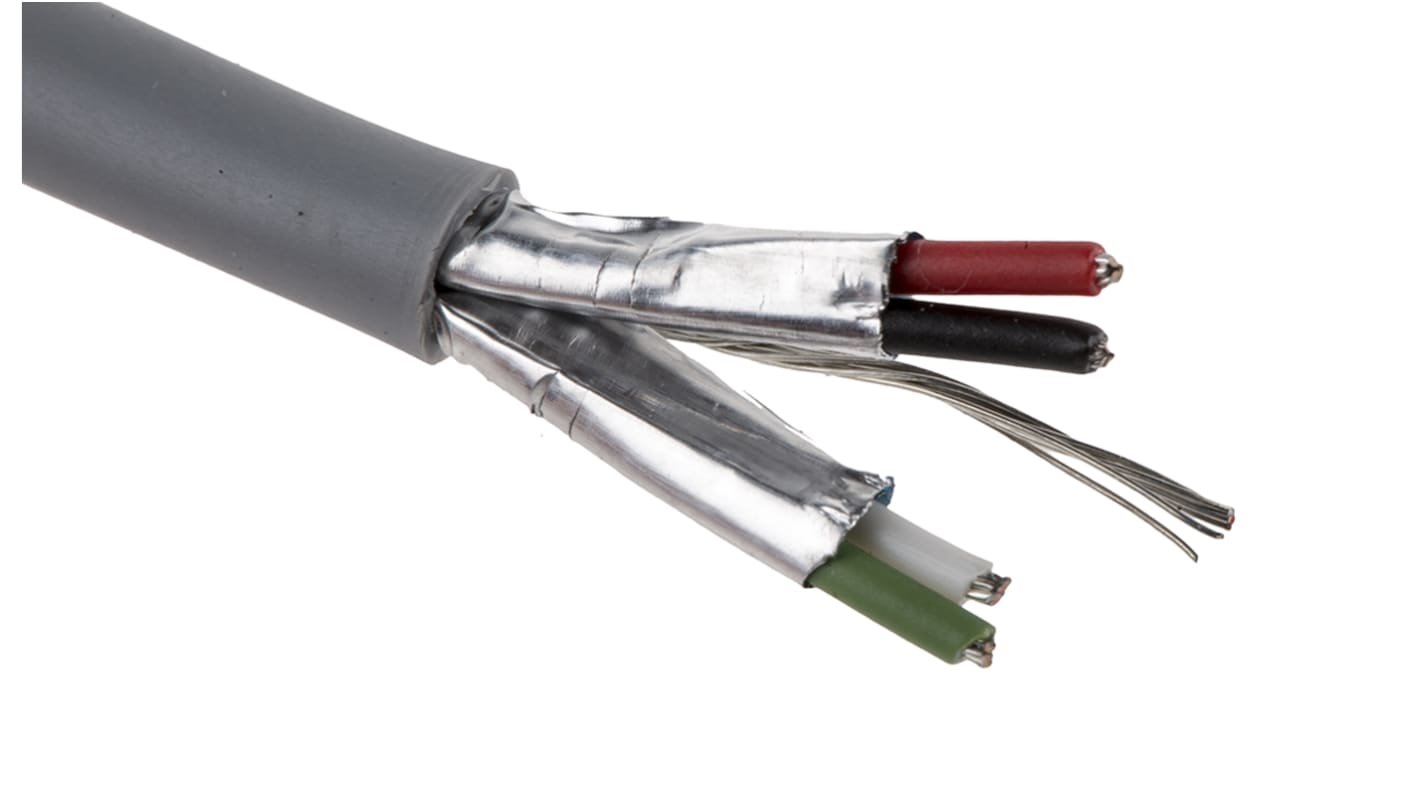

RS PRO Multipair Industrial Cable, 2 Pairs, Screened, 22 AWG, 100m, Aluminium Foil-PET Tape Shield
- RS Stock No.:
- 811-7424
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 304 Metre(s)
£554.01
(exc. VAT)
£664.81
(inc. VAT)
- RS Stock No.:
- 811-7424
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Pairs | 2 | |
| American Wire Gauge | 22 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | Aluminium Foil-PET Tape | |
| Sheath Colour | Grey | |
| Outer Diameter | 4.2mm | |
| Outer Sheath Material | LSZH | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 45 Ω | |
| Standards Met | CE, CSA Certified, UL | |
| Shielded/Unshielded | Shielded | |
| Voltage Rating | 300 V | |
| Core Strands | 7/0.76 mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Pairs 2 | ||
American Wire Gauge 22 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Aluminium Foil-PET Tape | ||
Sheath Colour Grey | ||
Outer Diameter 4.2mm | ||
Outer Sheath Material LSZH | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 45 Ω | ||
Standards Met CE, CSA Certified, UL | ||
Shielded/Unshielded Shielded | ||
Voltage Rating 300 V | ||
Core Strands 7/0.76 mm | ||
- COO (Country of Origin):
- CN
Two Pair Industrial Foil Shield UL LSZH PVC 22AWG Cable
RS Pro two pair LSZH industrial foil shielded cable that can be used in multi conductor audio, control and instrumentation applications.
Features and Benefits
Tinnned copper construction
2 pairs (4 cores)
PP Insulation
LSZH jacket
UL
Standards
UL
