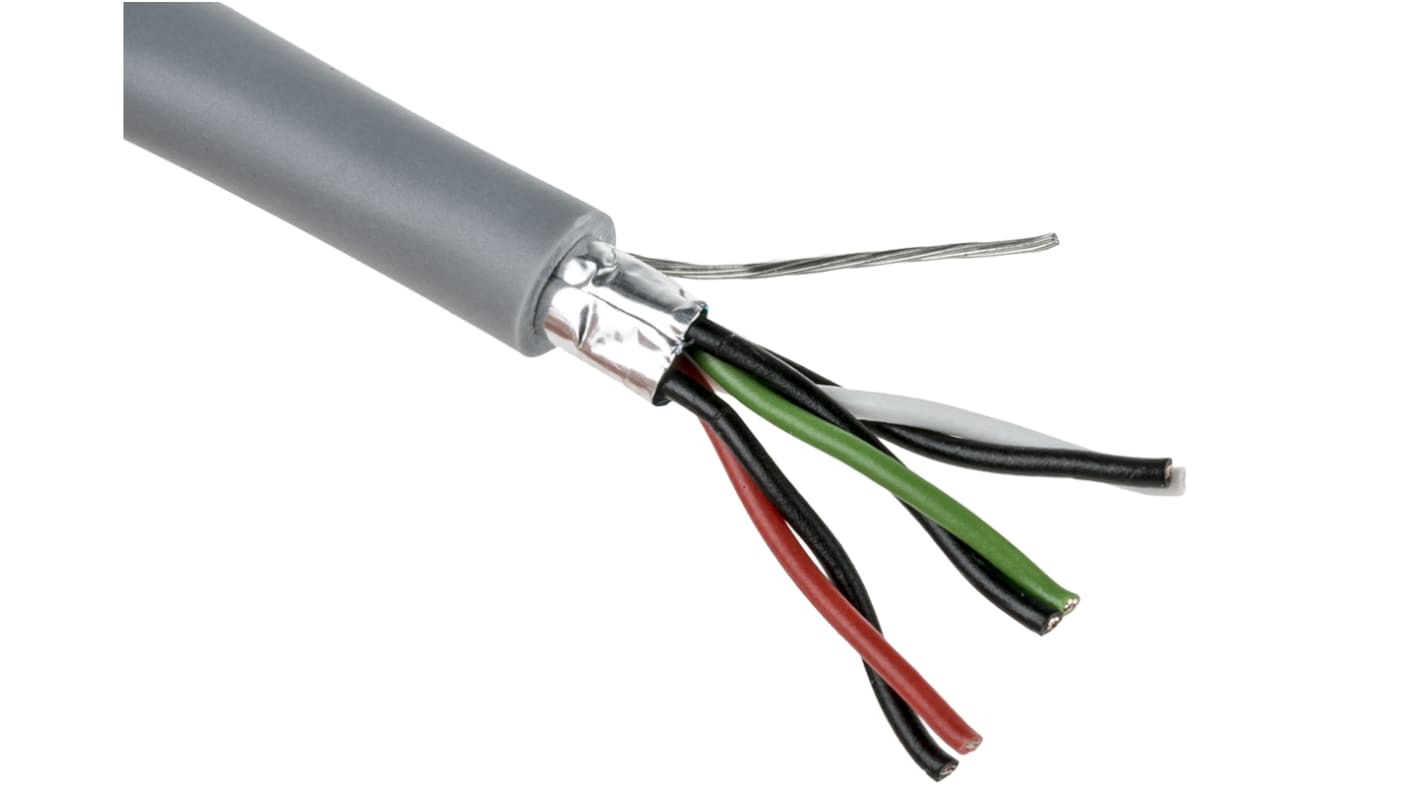

RS PRO Data Cable, 3 Pairs, 0.22 mm², Screened, 24 AWG, 100m, Screened Shield
- RS Stock No.:
- 811-7386
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 30 Metre(s)
£67.88
(exc. VAT)
£81.46
(inc. VAT)
- RS Stock No.:
- 811-7386
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Pairs | 3 | |
| Cross Sectional Area | 0.22 mm² | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | Foil | |
| Sheath Colour | Grey | |
| Outer Diameter | 5.9mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 75 Ω | |
| Core Strands | 7/0.6 mm | |
| Standards Met | CSA FT4, EU Low Voltage Directive 2006/95/EC, RS 232 | |
| Voltage Rating | 300 V | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Pairs 3 | ||
Cross Sectional Area 0.22 mm² | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Foil | ||
Sheath Colour Grey | ||
Outer Diameter 5.9mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 75 Ω | ||
Core Strands 7/0.6 mm | ||
Standards Met CSA FT4, EU Low Voltage Directive 2006/95/EC, RS 232 | ||
Voltage Rating 300 V | ||
- COO (Country of Origin):
- CN
UL 2464 foil shielded cable
RS Pro foil shielded multipair industrial cable, designed for use in a wide variety of applications such as computer cable for EIA RS-232 applications.
Features and Benefits
Tinned copper construction
PVC insulation
PVC Jacket
UL 2464
Standards
UL, CSA, CE
RS PRO 3 Pair Screened Multipair Industrial Cable 0.22 mm² (CSA FT4, EU Low Voltage Directive 2006/95/EC, RS 232) Grey
This RS PRO 3-pair low-voltage multipair industrial cable is used to reliably process high volumes of data. It contains 3 twisted pairs of conductors which are colour coded for easy installation.
Each conductor has 7 core strands of 0.6 mm each and is foil-shielded to reduce external electrical interference. A tinned-copper drain wire provides grounding. There's a flexible outer sheath of grey PVC for protection from damage in challenging environments. The cable has an outer diameter of 5.9 mm and a cross-sectional area of 0.22 mm².
This cable is flame-tested to CSA FT4 standards and it also meets the EU Low Voltage Directive 2006/95/EC, ensuring high safety levels for users. It also complies with the Electronic Industries Association RS232 standard for serial data transmission. You'll often find screened multipair industrial cables used by telecommunication organisations in telephone and data networks.
Each conductor has 7 core strands of 0.6 mm each and is foil-shielded to reduce external electrical interference. A tinned-copper drain wire provides grounding. There's a flexible outer sheath of grey PVC for protection from damage in challenging environments. The cable has an outer diameter of 5.9 mm and a cross-sectional area of 0.22 mm².
This cable is flame-tested to CSA FT4 standards and it also meets the EU Low Voltage Directive 2006/95/EC, ensuring high safety levels for users. It also complies with the Electronic Industries Association RS232 standard for serial data transmission. You'll often find screened multipair industrial cables used by telecommunication organisations in telephone and data networks.
Features and Benefits
• 3 pairs of conductors
• 24 AWG
• Voltage rating of 300 V
• Characteristic impedance of 75 Ω
• Core strands are 7/0.6 mm
• Cross-sectional area of 0.22 mm²
• Outer diameter of 5.9 mm
• Comes in a length of 100 m
• Outer sheath made of grey PVC
• 24 AWG
• Voltage rating of 300 V
• Characteristic impedance of 75 Ω
• Core strands are 7/0.6 mm
• Cross-sectional area of 0.22 mm²
• Outer diameter of 5.9 mm
• Comes in a length of 100 m
• Outer sheath made of grey PVC
