RS PRO Multipair Industrial Cable, 1 Pairs, Screened, 24 AWG, 100m, Screened Shield, LiHCH Cable
- RS Stock No.:
- 811-7373
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£73.94
(exc. VAT)
£88.73
(inc. VAT)
- RS Stock No.:
- 811-7373
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Pairs | 1 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | Foil | |
| Sheath Colour | Grey | |
| Cable Type | LiHCH | |
| Outer Diameter | 3.96mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 75 Ω | |
| Shielded/Unshielded | Shielded | |
| Series | Unitronic LiHCH | |
| Voltage Rating | 300 V | |
| Core Strands | 7/0.6 mm | |
| Standards Met | CE, CSA Certified, UL | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Pairs 1 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Foil | ||
Sheath Colour Grey | ||
Cable Type LiHCH | ||
Outer Diameter 3.96mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 75 Ω | ||
Shielded/Unshielded Shielded | ||
Series Unitronic LiHCH | ||
Voltage Rating 300 V | ||
Core Strands 7/0.6 mm | ||
Standards Met CE, CSA Certified, UL | ||
- COO (Country of Origin):
- CN

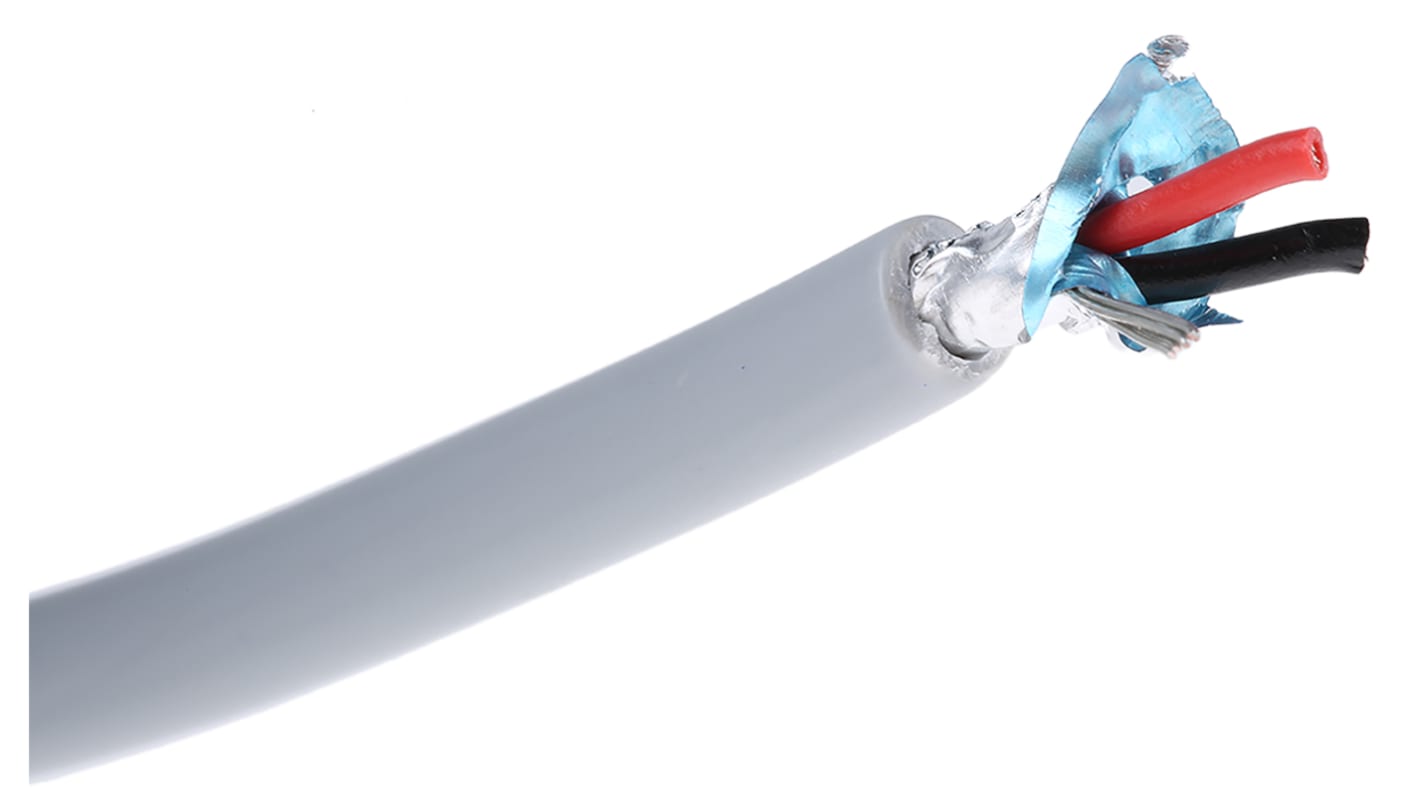

RS PRO 1 Pair Screened Multipair Industrial Cable, Grey, 100 m
This twisted cable from RS PRO is specifically designed to transmit large volumes of data at high speeds. It's frequently used in telephone and digital networking applications due to its reliable resistance to external interference.
The cable's twisted wires carry current in opposite directions to cancel out magnetic field forces. This stops any nearby components from electrically interfering with its function, for the clear and rapid transfer of data. The conductor's polyvinyl chloride (PVC) shield is highly resistant to abrasion, which helps ensure the good working function of its inner wiring and a long product life.
You can use this cable both at home or in an industrial setting. It's generally used to connect a computer to a peripheral device, such as a printer. The cable meets Underwriters' Laboratories (UL) 2464 standards for flexible conductor cables, which guarantees its suitability for use in measuring, control and command applications.
The cable's twisted wires carry current in opposite directions to cancel out magnetic field forces. This stops any nearby components from electrically interfering with its function, for the clear and rapid transfer of data. The conductor's polyvinyl chloride (PVC) shield is highly resistant to abrasion, which helps ensure the good working function of its inner wiring and a long product life.
You can use this cable both at home or in an industrial setting. It's generally used to connect a computer to a peripheral device, such as a printer. The cable meets Underwriters' Laboratories (UL) 2464 standards for flexible conductor cables, which guarantees its suitability for use in measuring, control and command applications.
Features and Benefits
• Wire size of 24 American Wire Gauge (AWG)
• Twisted-pair cable type
• Characteristic impedance of 75 Ω
• Seven core strands of 0.6 mm
• Length of 100 m
• One pair per pack
• Outer diameter of 3.96 mm
• Polyvinyl chloride (PVC) outer sheath material
• Unitronic LiHCH series
• Grey sheath colour
• Foil shield type
• Screened
• CE and CSA certified
• Underwriters' Laboratories (UL) 2464 compliant
• Voltage rating of 300 V
• Twisted-pair cable type
• Characteristic impedance of 75 Ω
• Seven core strands of 0.6 mm
• Length of 100 m
• One pair per pack
• Outer diameter of 3.96 mm
• Polyvinyl chloride (PVC) outer sheath material
• Unitronic LiHCH series
• Grey sheath colour
• Foil shield type
• Screened
• CE and CSA certified
• Underwriters' Laboratories (UL) 2464 compliant
• Voltage rating of 300 V
