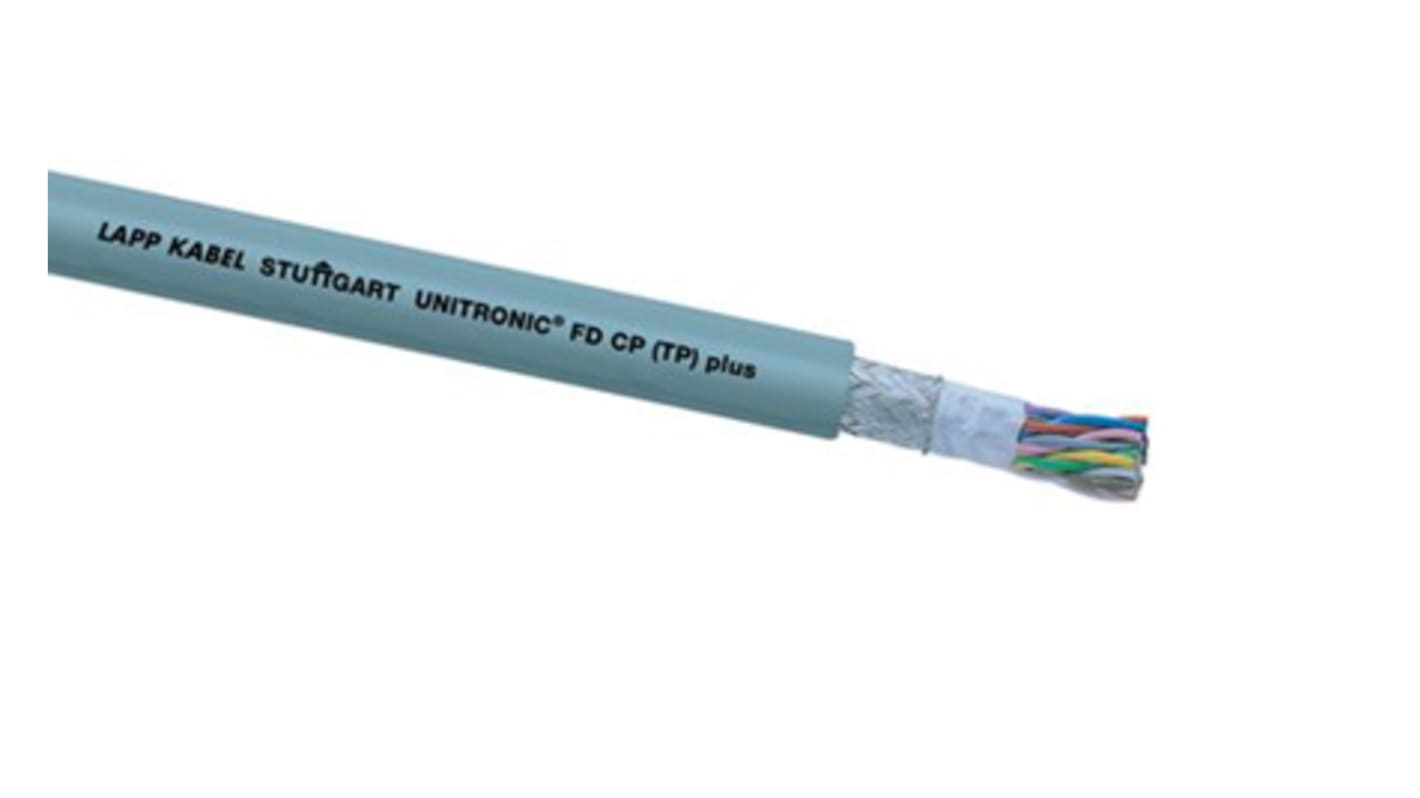

Lapp UNITRONIC Series Data Cable, 1 Pairs, 2 Cores, 0.75 mm², Screened, 19 AWG, Screened Shield, FD CP Cable
- RS Stock No.:
- 807-9013
- Mfr. Part No.:
- 0030965
- Brand:
- Lapp
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£410.47
(exc. VAT)
£492.56
(inc. VAT)
- RS Stock No.:
- 807-9013
- Mfr. Part No.:
- 0030965
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.75 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 19 AWG | |
| Screened/Unscreened | Screened | |
| Shield Type | S/UTP | |
| Sheath Colour | Grey | |
| Cable Type | FD CP | |
| Outer Diameter | 6.3mm | |
| Outer Sheath Material | PUR | |
| Cable Shape | Twisted Pair | |
| Voltage Rating | 250 V | |
| Series | UNITRONIC | |
| Standards Met | IEC60332-1 | |
| Fire Behaviour | Flame Retardant | |
| Shielded/Unshielded | Shielded | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.75 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 19 AWG | ||
Screened/Unscreened Screened | ||
Shield Type S/UTP | ||
Sheath Colour Grey | ||
Cable Type FD CP | ||
Outer Diameter 6.3mm | ||
Outer Sheath Material PUR | ||
Cable Shape Twisted Pair | ||
Voltage Rating 250 V | ||
Series UNITRONIC | ||
Standards Met IEC60332-1 | ||
Fire Behaviour Flame Retardant | ||
Shielded/Unshielded Shielded | ||
- COO (Country of Origin):
- DE
LAPP Data Cable, 250V Voltage Rating, 19AWG - UNITRONIC Series - 0030965
Choose this data cable from LAPP for low-voltage industrial applications where you need flexibility. The twisted pair structure protects against electrical interference from nearby equipment and eliminates crosstalk, ensuring reliable transmission without distortion. As the cable operates in temperatures ranging from -40°C to +80°C, it's a reliable and long-lasting choice for machine tools working in harsh conditions.
Features & Benefits
• Shielded type for insulation and grounding as well as enhanced mechanical strength
• Braiding is resistant to twisting for use in dynamic applications
• Halogen-free so it won't emit toxic fumes in the event of a fire
• Braiding is resistant to twisting for use in dynamic applications
• Halogen-free so it won't emit toxic fumes in the event of a fire
Applications
• Wind turbines
• Robotics systems
• Power chains
• Robotics systems
• Power chains
Does this cable have solid or stranded conductors?
This cable contains extra-fine copper wire strands, helping to ensure flexibility so that the component can bend around corners. Stranded conductors are also more conductive and durable than solid ones.
