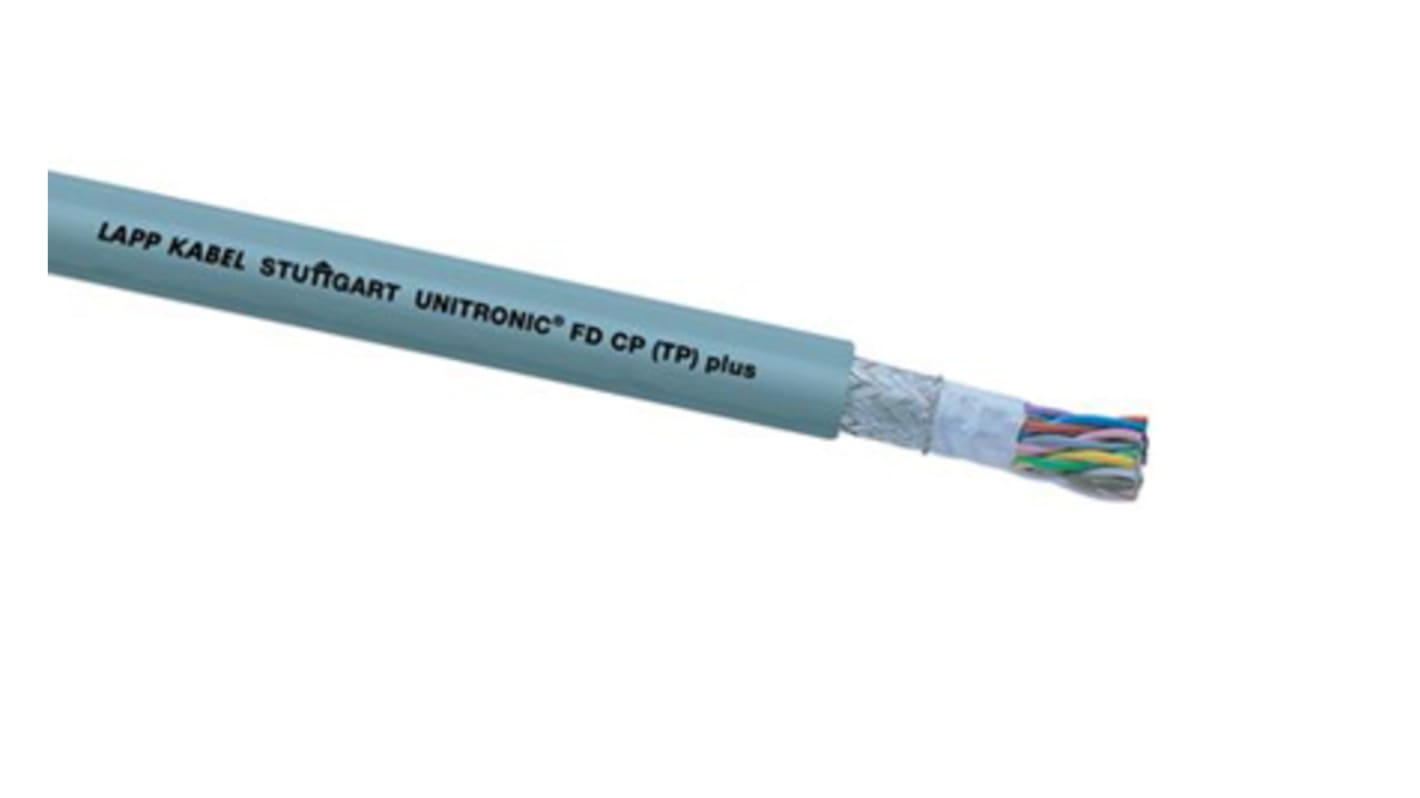

Lapp UNITRONIC Series Data Cable, 1 Pairs, 2 Cores, 0.9 mm², Screened, 18 AWG, Screened Shield, FD CP Cable
- RS Stock No.:
- 807-8997
- Mfr. Part No.:
- 0030955
- Brand:
- Lapp
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£461.75
(exc. VAT)
£554.10
(inc. VAT)
- RS Stock No.:
- 807-8997
- Mfr. Part No.:
- 0030955
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.9 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 18 AWG | |
| Screened/Unscreened | Screened | |
| Shield Type | S/UTP | |
| Sheath Colour | Grey | |
| Cable Type | FD CP | |
| Outer Diameter | 6.7mm | |
| Outer Sheath Material | PUR | |
| Cable Shape | Twisted Pair | |
| Voltage Rating | 250 V | |
| Shielded/Unshielded | Shielded | |
| Series | UNITRONIC | |
| Standards Met | IEC60332-1 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Flame Retardant | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.9 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 18 AWG | ||
Screened/Unscreened Screened | ||
Shield Type S/UTP | ||
Sheath Colour Grey | ||
Cable Type FD CP | ||
Outer Diameter 6.7mm | ||
Outer Sheath Material PUR | ||
Cable Shape Twisted Pair | ||
Voltage Rating 250 V | ||
Shielded/Unshielded Shielded | ||
Series UNITRONIC | ||
Standards Met IEC60332-1 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- DE
Unitronic FD CP Powerchain Cable
From Lapp, this Unitronic series cable is optimized for use in power chains. With a high degree of mechanical and torsion resistance, this highly flexible cable is well suited for dynamic applications.
The Unitronic data transmission cable is comprised of extra-fine strands of bare copper wire in a special PUR outer sheath that is resistant to tears, notches and oil. Coupled with a wide operating temperature range, the cable is suitable for the kind of challenging environments where drag train and carrier machinery may be used.
Furthermore, this industrial cable features screened tinned copper braiding, offering EMI resistance for environments where electromagnetic interference is a concern. It is also halogen free and flame-retardant, for increased safety.
With great flexural strength, the Unitronic Powerchain FD CP data cable allows easy installation and modifications where necessary, and is a popular choice for industrial cables in power chain use.
Features & Benefits
• Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
• Overall braid minimises electrical interference
• Wide temperature range for applications in harsh climatic environments
• Cold Resistant and flexible at low temperatures
• Flame retardant to IEC 60332-1-2, VW-1, FT2
• Halogen-free
• Increased oil, abrasion & cut resistance
• Great flexural strength
• Microbe & hydrolysis resistance
Applications
Due to its flexibility and torsion resistance, the Unitronic Powerchain cable is well suited to any process that requires movement, such as linear robots. It is also ideal for torsional applications such as in wind turbine generators.
• Measuring, control and regulating circuits
• Drag trains for horizontal travel up to 100 meters
• Automated Handling Equipment
Accessories
Lapp Unitronic cables are best used with accessories that match their capabilities, and a range of appropriate cable glands are available.
• 136-8515 is an M12 Skintop Halogen Free EMC Cable Gland
• 136-8516 is an M16 Skintop Halogen Free EMC Cable Gland
• 136-8517 is an M20 Skintop Halogen Free EMC Cable Gland
• 136-8518 is an M25 Skintop Halogen Free EMC Cable Gland
• 136-8519 is an M32 Skintop Halogen Free EMC Cable Gland
The Unitronic data transmission cable is comprised of extra-fine strands of bare copper wire in a special PUR outer sheath that is resistant to tears, notches and oil. Coupled with a wide operating temperature range, the cable is suitable for the kind of challenging environments where drag train and carrier machinery may be used.
Furthermore, this industrial cable features screened tinned copper braiding, offering EMI resistance for environments where electromagnetic interference is a concern. It is also halogen free and flame-retardant, for increased safety.
With great flexural strength, the Unitronic Powerchain FD CP data cable allows easy installation and modifications where necessary, and is a popular choice for industrial cables in power chain use.
Features & Benefits
• Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
• Overall braid minimises electrical interference
• Wide temperature range for applications in harsh climatic environments
• Cold Resistant and flexible at low temperatures
• Flame retardant to IEC 60332-1-2, VW-1, FT2
• Halogen-free
• Increased oil, abrasion & cut resistance
• Great flexural strength
• Microbe & hydrolysis resistance
Applications
Due to its flexibility and torsion resistance, the Unitronic Powerchain cable is well suited to any process that requires movement, such as linear robots. It is also ideal for torsional applications such as in wind turbine generators.
• Measuring, control and regulating circuits
• Drag trains for horizontal travel up to 100 meters
• Automated Handling Equipment
Accessories
Lapp Unitronic cables are best used with accessories that match their capabilities, and a range of appropriate cable glands are available.
• 136-8515 is an M12 Skintop Halogen Free EMC Cable Gland
• 136-8516 is an M16 Skintop Halogen Free EMC Cable Gland
• 136-8517 is an M20 Skintop Halogen Free EMC Cable Gland
• 136-8518 is an M25 Skintop Halogen Free EMC Cable Gland
• 136-8519 is an M32 Skintop Halogen Free EMC Cable Gland
LAPP UNITRONIC Series Data Cable, PUR, S/UTP Shield - 0030955
This data cable is specifically designed for use in automation, electronics, electrical, and mechanical industries. With a cross-sectional area of 0.9mm², this cable is a reliable solution for various applications in power chains, manipulators, and moving machine parts.
Features & Benefits
• Flame retardant feature ensures safety in case of any fire hazard
• Screened and shielding provides protection against interference for uninterrupted data transmission
• Grey sheath material enhances durability and resistance to oil, abrasion, tear, and harsh environmental conditions
• IEC60332-1 compliant for international standards quality and safety
• Twisted pair design facilitates decoupling and reduces signal interference
• Screened and shielding provides protection against interference for uninterrupted data transmission
• Grey sheath material enhances durability and resistance to oil, abrasion, tear, and harsh environmental conditions
• IEC60332-1 compliant for international standards quality and safety
• Twisted pair design facilitates decoupling and reduces signal interference
Applications
• Ideal for automation systems, power chains, and wind turbines.
• Suitable for use in harsh environments and applications requiring torsional flexibility.
• Suitable for use in harsh environments and applications requiring torsional flexibility.
Can this data cable be used in power chains?
Yes, this cable is designed for use in power chains due to its high flexibility and durability.
Will this cable provide protection against interference in electronic applications?
Yes, the screened and shielded design ensures reliable data transmission without interference.
Is the Lapp UNITRONIC data cable suitable for use in wind turbines?
Yes, this cable is designed for torsional applications in wind turbines, ensuring reliable performance.
Can this cable withstand harsh environmental conditions?
Yes, this cable is resistant to oil, abrasion, tear, and harsh environmental factors for long-lasting performance.
