Lapp UNITRONIC Series Data Cable, 6 Pairs, 12 Cores, 0.5 mm², Screened, 20 AWG, Screened Shield, FD CP Cable
- RS Stock No.:
- 807-8975
- Mfr. Part No.:
- 0030941
- Brand:
- Lapp
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£1,341.93
(exc. VAT)
£1,610.32
(inc. VAT)
- RS Stock No.:
- 807-8975
- Mfr. Part No.:
- 0030941
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 6 | |
| Cross Sectional Area | 0.5 mm² | |
| Number of Cores | 12 | |
| American Wire Gauge | 20 AWG | |
| Screened/Unscreened | Screened | |
| Shield Type | S/UTP | |
| Sheath Colour | Grey | |
| Cable Type | FD CP | |
| Outer Diameter | 12.3mm | |
| Outer Sheath Material | PUR | |
| Cable Shape | Twisted Pair | |
| Shielded/Unshielded | Shielded | |
| Fire Behaviour | Flame Retardant | |
| Series | UNITRONIC | |
| Standards Met | IEC60332-1 | |
| Voltage Rating | 250 V | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 6 | ||
Cross Sectional Area 0.5 mm² | ||
Number of Cores 12 | ||
American Wire Gauge 20 AWG | ||
Screened/Unscreened Screened | ||
Shield Type S/UTP | ||
Sheath Colour Grey | ||
Cable Type FD CP | ||
Outer Diameter 12.3mm | ||
Outer Sheath Material PUR | ||
Cable Shape Twisted Pair | ||
Shielded/Unshielded Shielded | ||
Fire Behaviour Flame Retardant | ||
Series UNITRONIC | ||
Standards Met IEC60332-1 | ||
Voltage Rating 250 V | ||
- COO (Country of Origin):
- DE

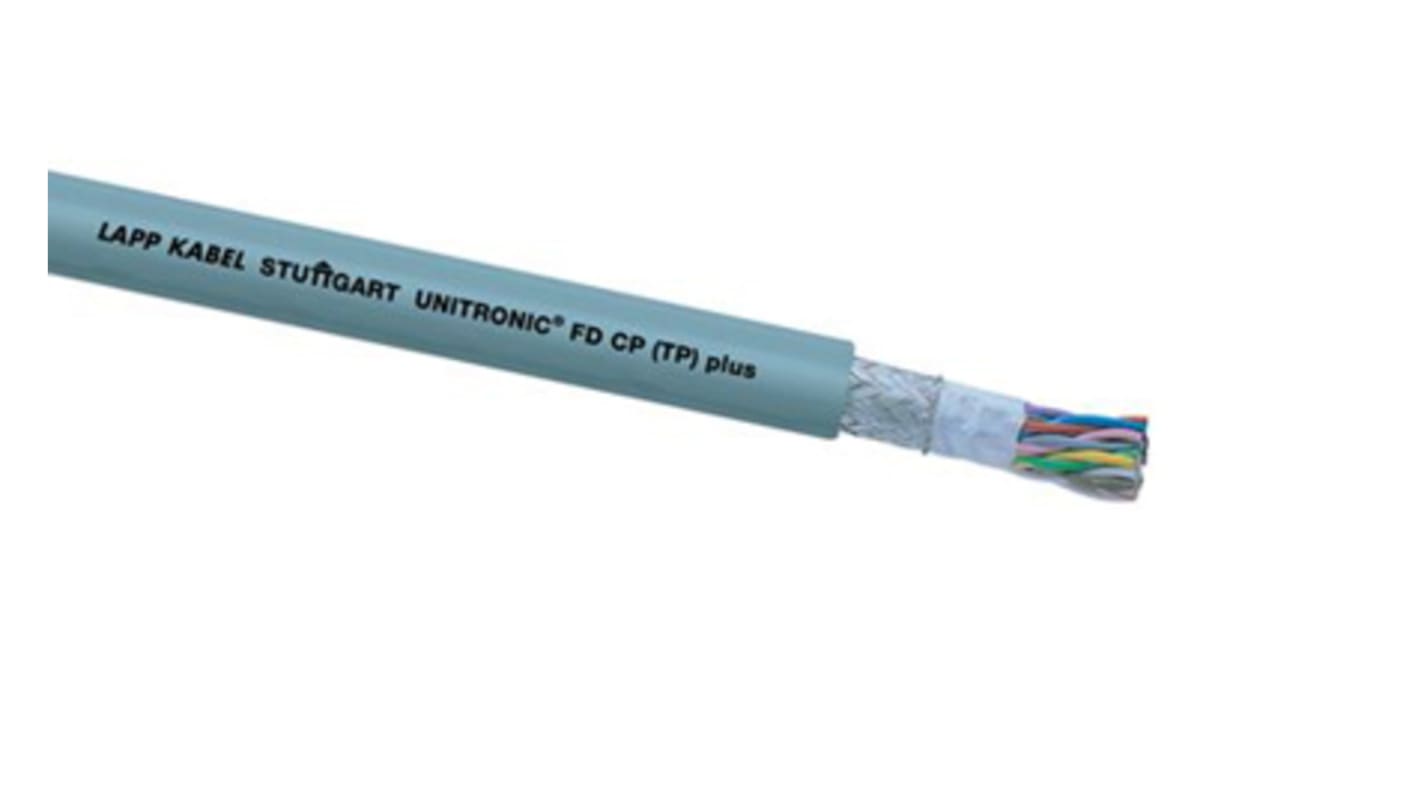

Unitronic FD CP Powerchain Cable
From Lapp, this Unitronic series cable is optimized for use in power chains. With a high degree of mechanical and torsion resistance, this highly flexible cable is well suited for dynamic applications.
The Unitronic data transmission cable is comprised of extra-fine strands of bare copper wire in a special PUR outer sheath that is resistant to tears, notches and oil. Coupled with a wide operating temperature range, the cable is suitable for the kind of challenging environments where drag train and carrier machinery may be used.
Furthermore, this industrial cable features screened tinned copper braiding, offering EMI resistance for environments where electromagnetic interference is a concern. It is also halogen free and flame-retardant, for increased safety.
With great flexural strength, the Unitronic Powerchain FD CP data cable allows easy installation and modifications where necessary, and is a popular choice for industrial cables in power chain use.
Features & Benefits
• Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
• Overall braid minimises electrical interference
• Wide temperature range for applications in harsh climatic environments
• Cold Resistant and flexible at low temperatures
• Flame retardant to IEC 60332-1-2, VW-1, FT2
• Halogen-free
• Increased oil, abrasion & cut resistance
• Great flexural strength
• Microbe & hydrolysis resistance
Applications
Due to its flexibility and torsion resistance, the Unitronic Powerchain cable is well suited to any process that requires movement, such as linear robots. It is also ideal for torsional applications such as in wind turbine generators.
• Measuring, control and regulating circuits
• Drag trains for horizontal travel up to 100 meters
• Automated Handling Equipment
Accessories
Lapp Unitronic cables are best used with accessories that match their capabilities, and a range of appropriate cable glands are available.
• 136-8515 is an M12 Skintop Halogen Free EMC Cable Gland
• 136-8516 is an M16 Skintop Halogen Free EMC Cable Gland
• 136-8517 is an M20 Skintop Halogen Free EMC Cable Gland
• 136-8518 is an M25 Skintop Halogen Free EMC Cable Gland
• 136-8519 is an M32 Skintop Halogen Free EMC Cable Gland
