Lapp UNITRONIC Series Data Cable, 6 Pairs, 12 Cores, 0.14 mm², Screened, 26 AWG, Screened Shield, FD CP Cable
- RS Stock No.:
- 807-8944
- Mfr. Part No.:
- 0030914
- Brand:
- Lapp
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£677.47
(exc. VAT)
£812.96
(inc. VAT)
- RS Stock No.:
- 807-8944
- Mfr. Part No.:
- 0030914
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 6 | |
| Cross Sectional Area | 0.14 mm² | |
| Number of Cores | 12 | |
| American Wire Gauge | 26 AWG | |
| Screened/Unscreened | Screened | |
| Shield Type | S/UTP | |
| Sheath Colour | Grey | |
| Cable Type | FD CP | |
| Outer Diameter | 7.5mm | |
| Outer Sheath Material | PUR | |
| Cable Shape | Twisted Pair | |
| Series | UNITRONIC | |
| Standards Met | IEC60332-1 | |
| Fire Behaviour | Flame Retardant | |
| Shielded/Unshielded | Shielded | |
| Voltage Rating | 250 V | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 6 | ||
Cross Sectional Area 0.14 mm² | ||
Number of Cores 12 | ||
American Wire Gauge 26 AWG | ||
Screened/Unscreened Screened | ||
Shield Type S/UTP | ||
Sheath Colour Grey | ||
Cable Type FD CP | ||
Outer Diameter 7.5mm | ||
Outer Sheath Material PUR | ||
Cable Shape Twisted Pair | ||
Series UNITRONIC | ||
Standards Met IEC60332-1 | ||
Fire Behaviour Flame Retardant | ||
Shielded/Unshielded Shielded | ||
Voltage Rating 250 V | ||
- COO (Country of Origin):
- DE

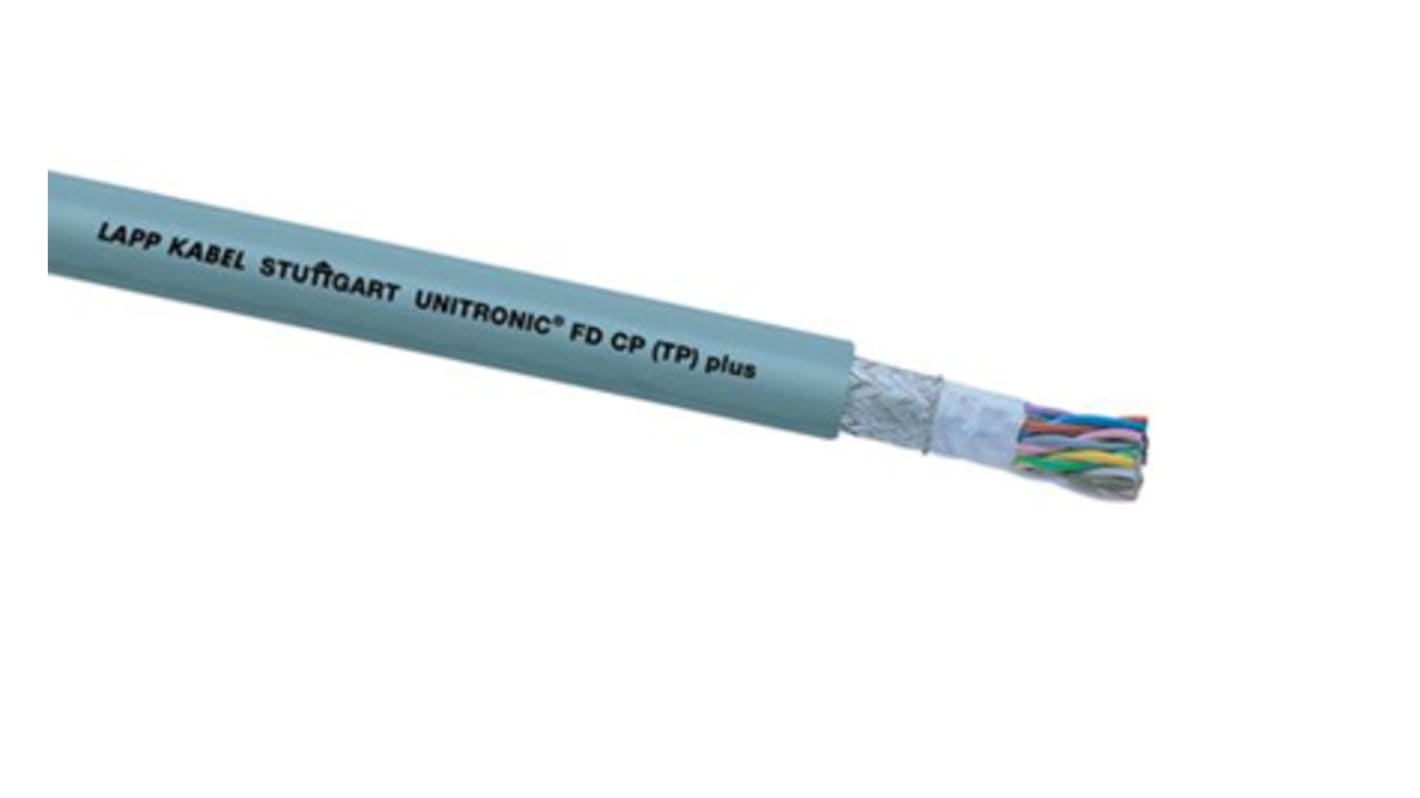

LAPP Data Cable, 26AWG, Grey PUR Sheath - UNITRONIC Series - 0030914
Use this data cable from LAPP to connect multiple devices in your network. The PUR outer sheath is resistant to the moisture and abrasion you'd expect in demanding environments. A braided tinned-copper wire shield helps to deflect EMI, giving you reliable signal transfer. For safety in the event of a fire, this cable is flame-retardant.
Features & Benefits
• Twisted-pair design prevents crosstalk and delivers a low-noise signal
• Wide operating temperature range of -40°C to +80°C for use in challenging environments
• Halogen-free construction means it won't emit toxic fumes if exposed to flames
• Wide operating temperature range of -40°C to +80°C for use in challenging environments
• Halogen-free construction means it won't emit toxic fumes if exposed to flames
Applications
• Power chains
• Automatic manipulators
• Automatic manipulators
How flexible is this cable?
This cable has a minimum bending radius of four times its diameter in a fixed installation and 7.5 times its diameter in a flexible installation, so it's simple to install in tight spaces and around corners.
