RS PRO Data Cable, 36 Cores, 0.06 mm², Screened, 30 AWG, 25m, Tinned Copper Shield

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
660-0426
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.06 mm²

Number of Cores

36

American Wire Gauge

30 AWG

Screened/Unscreened

Screened

Length

25m

Shield Type

Tinned Copper

Sheath Colour

Black

Outer Diameter

6.9mm

Outer Sheath Material

PVC

Cable Shape

Multicore

Fire Behaviour

Flame Retardant

Core Strands

7/0.1 mm

Shielded/Unshielded

Shielded

Voltage Rating

300 V

7 / 0.1mm (0.055mm²) - Screened

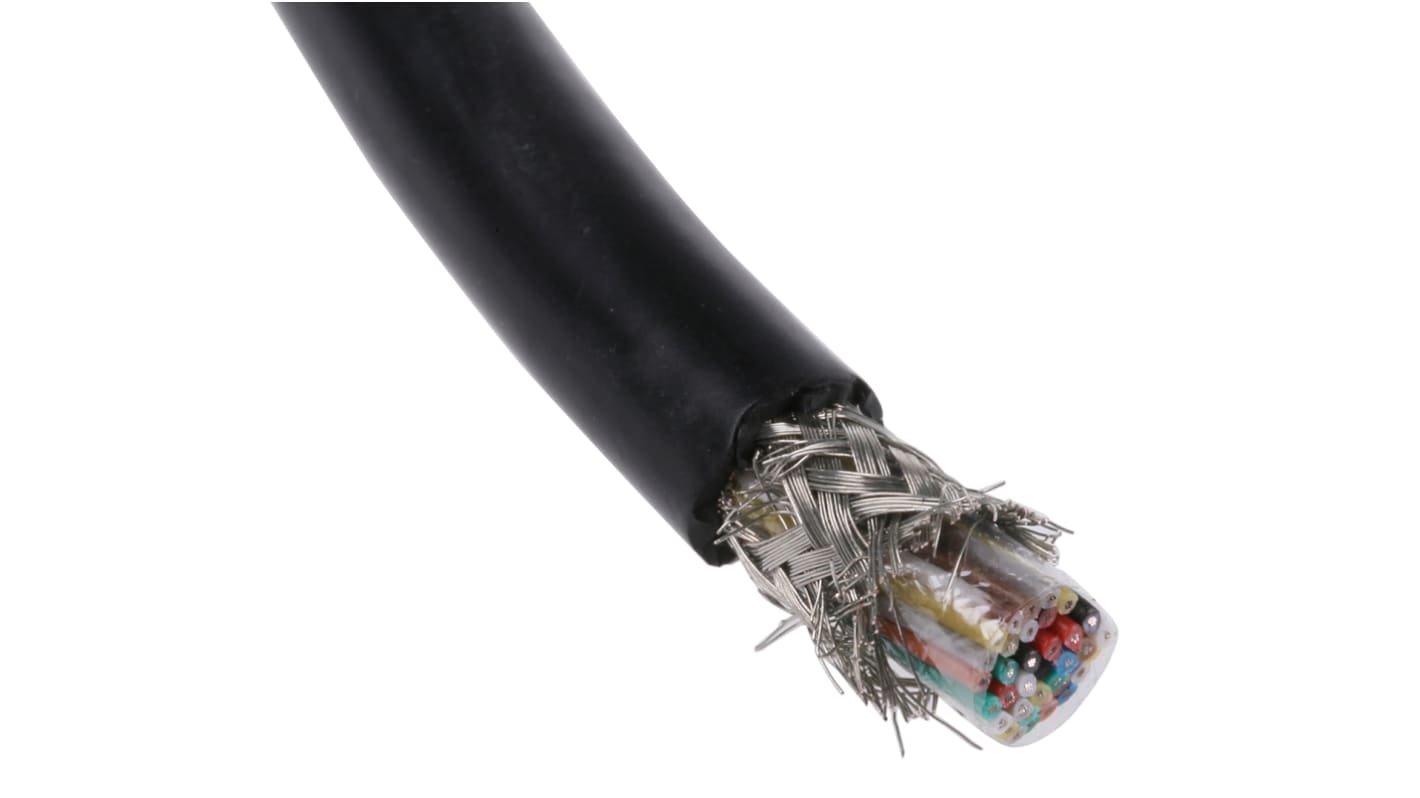

Tinned copper stranded conductors covered by 0.2mm PVC, overall tinned copper braided screen with an outer black PVC sheath.

Features and Benefits


Max. working voltage 250V
Max. current per core 0.25A
Core/Screen capacitance (nominal) 85pF/m
Resistance per core 384Ω/km

Note

The bend radius is 8 x the cable outer diameter measurement.

Standards

DEF STAN 61.12 parts 4 and 5

Warning

These cables are not to be regarded as power cables, or cables for the direct connection of equipment to mains power supplies.

Standards

Defence Standard 61-12, Parts 4 and 5; NBN EN ISO 9001; OP-QAO-003; OP-QIO-504; KI-QIO-616
