MPN

Belden 9841 Series Multipair Cable, 1 Pairs, 2 Cores, 0.2 mm², Screened, 24 AWG, 152m, Screened Shield, RS-485 Cable

RS Stock No.:: 331-8893
Distrelec Article No.:: 304-10-133
Mfr. Part No.:: 9841.01152
Brand:: Belden

Belden 9841 Series Multipair Cable, 1 Pairs, 2 Cores, 0.2 mm², Screened, 24 AWG, 152m, Screened Shield, RS-485 Cable

Subtotal (1 reel of 152 metres)*

£991.54

(exc. VAT)

£1,189.85

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

13 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£991.54	£6.523

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Data Cable, 2 Cores, 0.25 mm², Screened, 23 AWG, 100m, Screened Shield, LiYCY Cable

RS Stock No.: 136-8203

1 Reel of 100 Metre(s)

£87.98

(exc. VAT)

£105.58

(inc. VAT)

RS Stock No.:: 331-8893
Distrelec Article No.:: 304-10-133
Mfr. Part No.:: 9841.01152
Brand:: Belden

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Number of Pairs	1
	Cross Sectional Area	0.2 mm²
	Number of Cores	2
	American Wire Gauge	24 AWG
	Screened/Unscreened	Screened
	Length	152m
	Shield Type	Tinned Copper Braid
	CPR Certification	Eca
	Sheath Colour	Chrome
	Cable Type	RS-485
	Outer Diameter	5.9mm
	Outer Sheath Material	PVC
	Characteristic Impedance	120 Ω
	Shielded/Unshielded	Shielded
	Core Strands	7/0.20 mm
	Voltage Rating	300 V
	Series	9841
	Minimum Operating Temperature	-30°C
	Fire Behaviour	Flame Retardant
	Standards Met	Euroclass Eca
	Maximum Operating Temperature	+80°C

	Select all
	Brand Belden
	Number of Pairs 1
	Cross Sectional Area 0.2 mm²
	Number of Cores 2
	American Wire Gauge 24 AWG
	Screened/Unscreened Screened
	Length 152m
	Shield Type Tinned Copper Braid
	CPR Certification Eca
	Sheath Colour Chrome
	Cable Type RS-485
	Outer Diameter 5.9mm
	Outer Sheath Material PVC
	Characteristic Impedance 120 Ω
	Shielded/Unshielded Shielded
	Core Strands 7/0.20 mm
	Voltage Rating 300 V
	Series 9841
	Minimum Operating Temperature -30°C
	Fire Behaviour Flame Retardant
	Standards Met Euroclass Eca
	Maximum Operating Temperature +80°C

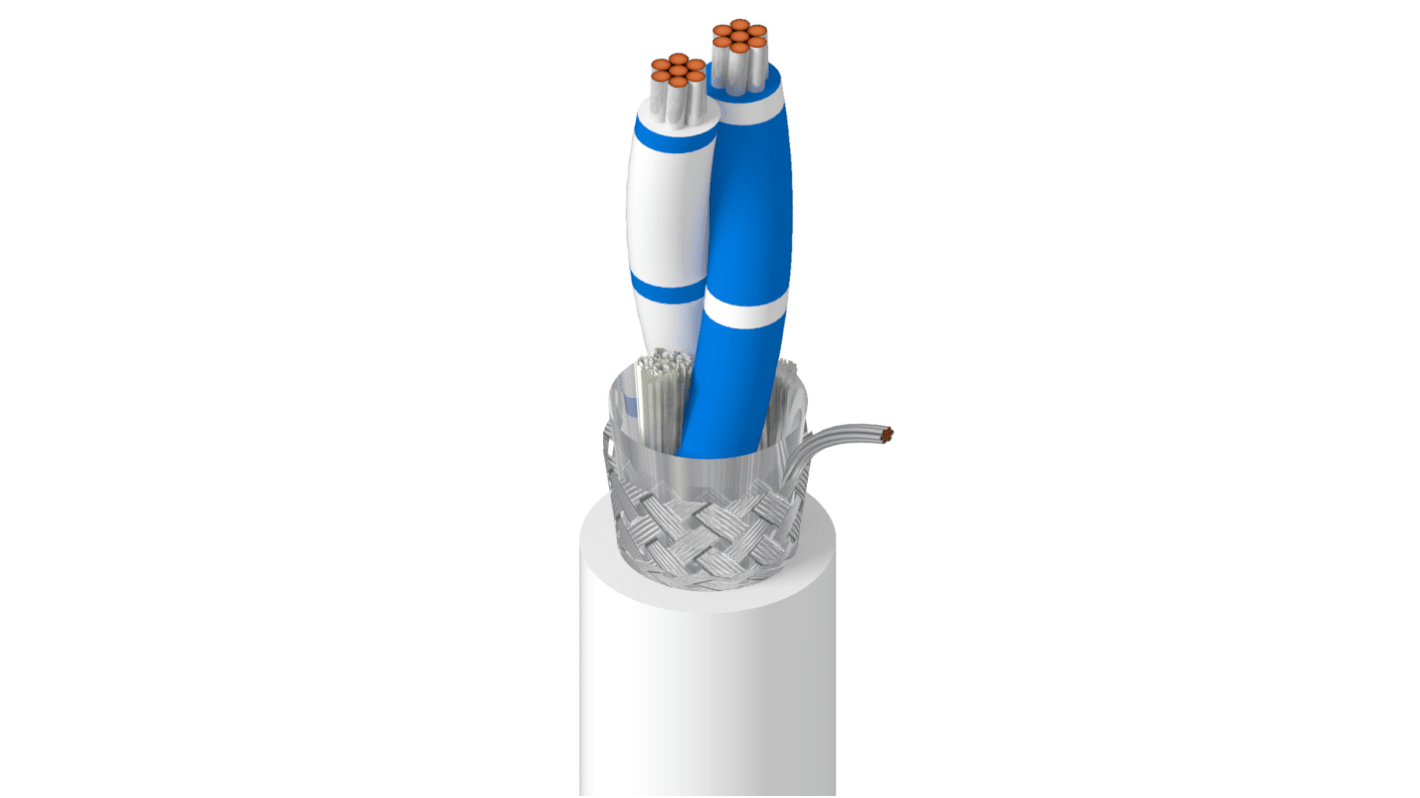

Belden 9841 Series Multipair Cable, 152m Length, 2 Cores - 9841.01152

This multipair cable is designed for industrial communication applications, specifically tailored for RS-485 systems. Featuring an overall length of 152m, it consists of a single pair of 24 AWG conductors made of tinned copper, encased in a flame-retardant PVC sheath. The cable boasts excellent shielding through tinned copper braid and is compliant with Eca CPR standards, suitable for a variety of demanding environments.

Features & Benefits

• Screened design minimises electromagnetic interference
• Flame retardant construction enhances safety in installations
• Tinned copper braid provides superior signal integrity
• PVC sheath ensures durability in various settings
• 300V voltage rating supports robust performance
• Operating temperature range from -30 °C to +80 °C

Applications

• Utilised for point-of-sale systems to ensure stable connections
• Employed in computer communications for reliable data transmission
• Ideal for low voltage analogue and digital control systems
• Suitable for panel wiring in industrial environments
• Tasks include interfacing with PLCs, VFDs, and SCADA systems

How does the cable maintain performance over long distances?

The cable features a characteristic impedance of 120 Ω, optimised for RS-485 communication, ensuring minimal signal loss even over extended runs. This is crucial for maintaining data integrity between devices situated far apart in industrial settings.

What kind of environments is this cable designed for?

The multipair cable is intended for indoor use, capable of withstanding operational conditions ranging from -30 °C up to +80 °C. Its flame-retardant attributes contribute to safety in potentially hazardous locations.

What installation considerations should be taken into account?

When installing, maintain a minimum bend radius of 2.5 in (64 mm) to avoid damaging the cable structure. Adhere to the maximum pull tension of 72.3 lbs (32.8 kg) to ensure longevity and prevent failure during setup.

What types of signals can this cable handle effectively?

This cable is adept at transmitting low voltage analogue signals, such as 4-20mA and 0-10V, as well as low voltage digital control signals, making it versatile for various automation tasks and applications.

What shielding does this cable employ to ensure data integrity?

The multipair cable uses an effective combination of Beldfoil and tinned copper braid that offers 100% coverage, providing exceptional protection against electromagnetic interference (EMI) for reliable communication.
