Lapp UNITRONIC LiFYCY Series Data Cable 8 Pairs 0.08 mm² 100 m Grey Sheath PVC
- RS Stock No.:
- 283-2197
- Mfr. Part No.:
- 34233
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£977.62
(exc. VAT)
£1,173.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £977.62 | £9.776 |
*price indicative
- RS Stock No.:
- 283-2197
- Mfr. Part No.:
- 34233
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 8 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.08mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 7.1mm | |
| Conductor Type | Extra Fine | |
| Minimum Operating Temperature | -40°C | |
| Jacket Material | PVC | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Design based on standard VDE 0812 | |
| Screened/Unscreened | Screened | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 | |
| Conductor Material | Bare Copper | |
| Series | UNITRONIC LiFYCY | |
| Voltage | 150V | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 8 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.08mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 7.1mm | ||
Conductor Type Extra Fine | ||
Minimum Operating Temperature -40°C | ||
Jacket Material PVC | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Design based on standard VDE 0812 | ||
Screened/Unscreened Screened | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 | ||
Conductor Material Bare Copper | ||
Series UNITRONIC LiFYCY | ||
Voltage 150V | ||
- COO (Country of Origin):
- DE

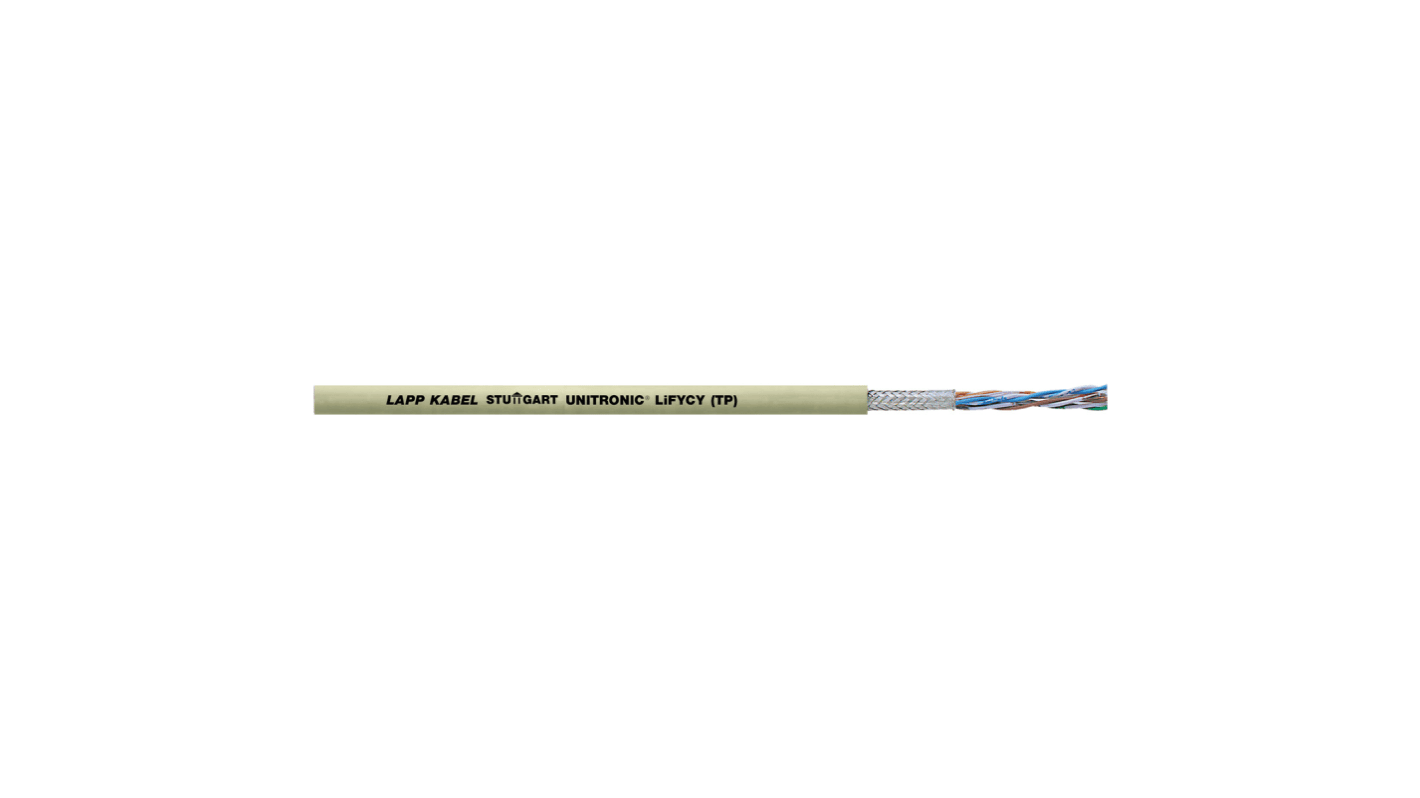

The Lapp screened miniature data transmission cable consists of twisted pairs and is suitable for low-frequency applications. It is designed for fixed installation and can be conditionally used for flexibility. This cable is intended for use in dry and damp interiors but is not suitable for outdoor usage.
Good decoupling of the conductor circuits.
Provides protection against electromagnetic interferences.
