Lapp UNITRONIC FD P plus A Series Twisted Pair Cable 2 Pairs 0.34 mm² 100 m Grey Sheath Polyurethane
- RS Stock No.:
- 280-5084
- Distrelec Article No.:
- 300-49-396
- Mfr. Part No.:
- 0028669
- Brand:
- Lapp
Subtotal (100 metres, on reels of 100)*
£227.52
(exc. VAT)
£273.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 1 unit(s) shipping from 11 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £227.52 | £2.275 |
*price indicative
- RS Stock No.:
- 280-5084
- Distrelec Article No.:
- 300-49-396
- Mfr. Part No.:
- 0028669
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Twisted Pair Cable | |
| Number of Pairs | 2 | |
| Cross Sectional Area | 0.34 mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 5.4mm | |
| Jacket Material | Polyurethane | |
| Conductor Type | Extra Fine | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL AWM Style 21576 | |
| Series | UNITRONIC FD P plus A | |
| Conductor Material | Copper | |
| Fire Behaviour | Flame Retardant | |
| Voltage | 1000V | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Twisted Pair Cable | ||
Number of Pairs 2 | ||
Cross Sectional Area 0.34 mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 5.4mm | ||
Jacket Material Polyurethane | ||
Conductor Type Extra Fine | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL AWM Style 21576 | ||
Series UNITRONIC FD P plus A | ||
Conductor Material Copper | ||
Fire Behaviour Flame Retardant | ||
Voltage 1000V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

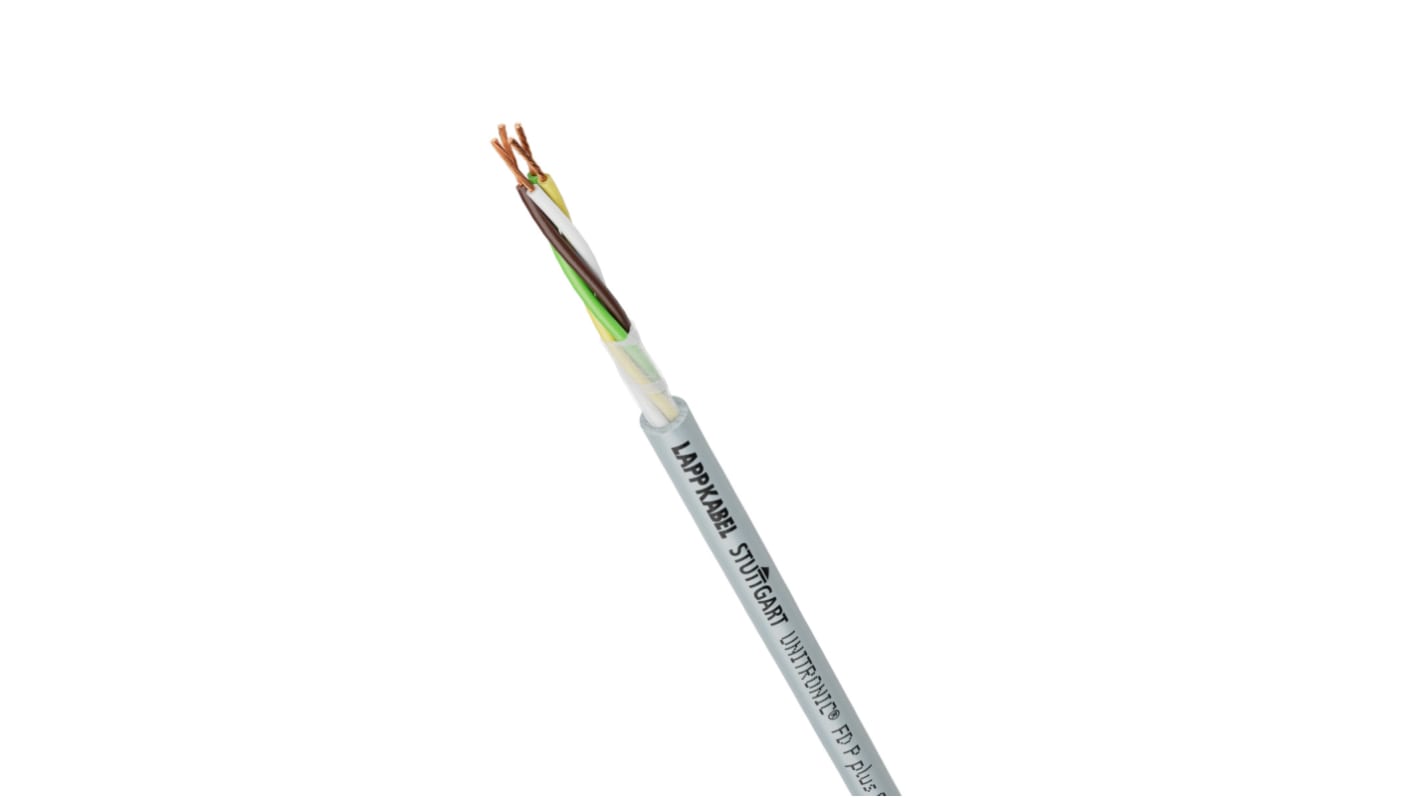

The Lapp UNITRONIC FD P plus A is a high flexible data cable. The cable with low capacitance is designed especially for use in power chains automatic manipulators in permanently moved machine parts. It is cold resistant and for harsh environmental conditions. Conductor used is extrafine wire strands of bare copper wires. Insulation used is special Polyolefin based compound.
Outer sheath of PUR compound
The cable is increased oil and abrasion and tear and notch resistant
Additional microbe and hydrolysis resistant
Flame retardant
Halogen free materials used
Grey colour
