Alpha Wire Ecogen Ecocable Mini Series Data Cable, 3 Pairs, 6 Cores, 0.15 mm², Screened, 26 AWG, 30m, Screened Shield,

RS Stock No.:: 136-8495
Mfr. Part No.:: 78163 SL005
Brand:: Alpha Wire

Alpha Wire Ecogen Ecocable Mini Series Data Cable, 3 Pairs, 6 Cores, 0.15 mm², Screened, 26 AWG, 30m, Screened Shield,

Subtotal (1 reel of 30 metres)*

£274.16

(exc. VAT)

£328.99

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

999,999,999 unit(s) shipping from 15 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£274.16	£9.139

*price indicative

RS Stock No.:: 136-8495
Mfr. Part No.:: 78163 SL005
Brand:: Alpha Wire

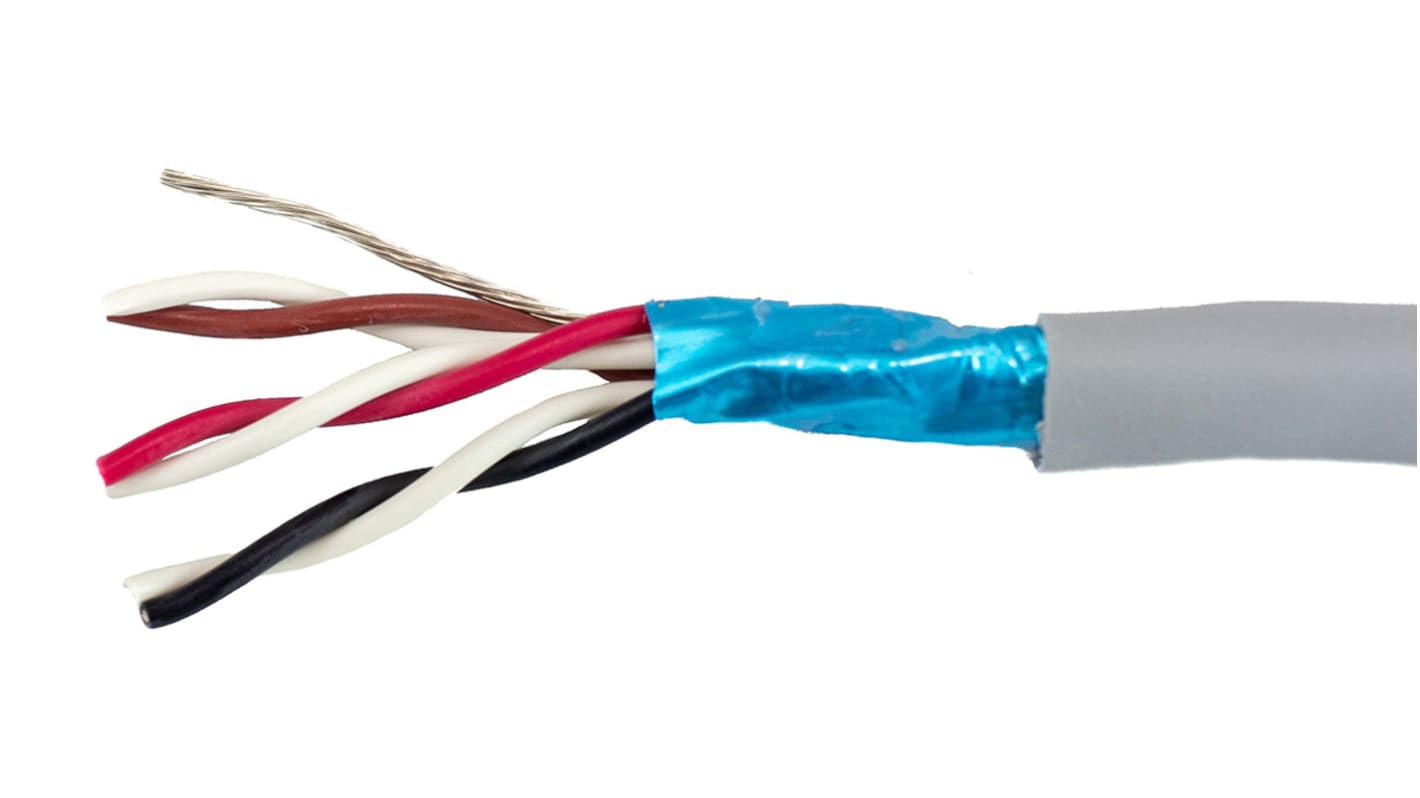

Alpha Wire EcoCable Mini - 300 V Foil Shielded, Multipair

The foil shielded EcoCable Mini range from Alpha Wire is a 300 Volt electrical cable which is fully recyclable due to its mPPE sheath and insulation construction. This stranded cable can handle extreme temperatures, contains zero halogens and is smaller and lighter than its PVC equivalent. Foil shielded cables consist of an aluminium/polyester shield and a tinned copper drain wire. Cables can be lighter and smaller with moderate resistance to EMI.

Features and Benefits

Temperature Range: -40°C to +80°C

Tinned copper conductors

mPPE insulation and jacket

Zero halogen

Specific gravity: 1.03

100% recyclable

Low outgassing

Available in several sizes of AWG

Foil shielding

How do communication cables work?

Communication cables work by sending information between two points, often at long distances via their copper conductors or optical fibres. Data communication requires clean transmission with little to no interference from external sources.

What is mPPE?

mPPE is a modified polyphenylene ether thermoplastic. Cables made from mPPE have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

Product Application Information

Communication cables are used in a wide range of applications such as radio transmitters, electronic circuits, telecommunication, automation and studios. They are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.

Approvals

• UL AWM 21460 • UL VW-1 • CSA I A/B FT1 • CE • RoHS • REACH • WEEE • ISO 10993-5

Belden Ecogen Ecocable Mini Series Data Cable, 30m Length, 26 AWG Wire Gauge - 78163 SL005

This data cable is an advanced solution designed for high-performance applications. With a length of 30m and constructed as a twisted pair cable, it features six individual cores made from 26 AWG tinned copper. The cable's outer diameter measures 4.01mm, providing a compact and flexible choice for various installations while ensuring reliable signal transmission.

Features & Benefits

• Screened design minimises interference for stable data transfer
• Halogen-free material enhances safety in case of fire
• Maximum temperature rating of +80°C suits diverse environments
• CE marked, ensuring compliance with safety standards
• Foil shield provides additional protection against electromagnetic interference
• EcoCable construction supports environmentally responsible use

Applications

• Utilised in industrial automation systems for effective data transmission
• Suitable for communication networks requiring robust performance
• Ideal for use in electrical and mechanical control systems
• Applicable in environments where cable flexibility is essential

What are the advantages of using a screened cable in high-frequency applications?

The screened construction significantly reduces electromagnetic interference, allowing for clearer signal integrity, which is crucial in high-frequency data transmission.

Can it withstand extreme temperature conditions during operation?

Yes, it operates effectively in a temperature range from -40°C to +80°C, making it suitable for a wide variety of environments and applications.

How does the cable's halogen-free material contribute to safety?

Halogen-free materials prevent the release of toxic gases in the event of combustion, ensuring greater safety for users and the surrounding environment.

What protection does the foil shield offer in data transmission scenarios?

The foil shield acts as a barrier against external electromagnetic fields, enhancing the reliability of data being transmitted through the cable, especially in electrically noisy environments.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Number of Pairs	3
	Cross Sectional Area	0.15 mm²
	Number of Cores	6
	American Wire Gauge	26 AWG
	Screened/Unscreened	Screened
	Length	30m
	Shield Type	Foil
	Sheath Colour	Grey
	Cable Type	EcoCable
	Outer Diameter	4.01mm
	Outer Sheath Material	MPPE
	Cable Shape	Twisted Pair
	Characteristic Impedance	81 Ω
	Core Strands	19/38 AWG
	Series	EcoCable Mini
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Halogen Free
	Standards Met	CE, CSA, UL
	Voltage Rating	300 V

	Select all
	Brand Alpha Wire
	Number of Pairs 3
	Cross Sectional Area 0.15 mm²
	Number of Cores 6
	American Wire Gauge 26 AWG
	Screened/Unscreened Screened
	Length 30m
	Shield Type Foil
	Sheath Colour Grey
	Cable Type EcoCable
	Outer Diameter 4.01mm
	Outer Sheath Material MPPE
	Cable Shape Twisted Pair
	Characteristic Impedance 81 Ω
	Core Strands 19/38 AWG
	Series EcoCable Mini
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +80°C
	Fire Behaviour Halogen Free
	Standards Met CE, CSA, UL
	Voltage Rating 300 V
