Belden 8168 Series Data Cable, 8 Pairs, 0.25 mm², 30 m, Silver Sheath Polyvinyl Chloride

RS Stock No.:: 136-6335
Mfr. Part No.:: 8168
Brand:: Belden

Belden 8168 Series Data Cable, 8 Pairs, 0.25 mm², 30 m, Silver Sheath Polyvinyl Chloride

Subtotal (1 reel of 30 metres)*

£966.98

(exc. VAT)

£1,160.38

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£966.98	£32.233

*price indicative

RS Stock No.:: 136-6335
Mfr. Part No.:: 8168
Brand:: Belden

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Product Type	Data Cable
	Number of Pairs	8
	Cross Sectional Area	0.25 mm²
	Cable Length	30m
	Jacket Colour	Silver
	Outside Diameter	12.16 mm
	Jacket Material	Polyvinyl Chloride
	Conductor Type	Stranded
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	UL 2493, cUL, UL 1581, CE
	Fire Behaviour	Flame Retardant
	Conductor Material	Tin Copper Wire
	Series	8168
	Voltage	300 V
	Core Strands	7

	Select all
	Brand Belden
	Product Type Data Cable
	Number of Pairs 8
	Cross Sectional Area 0.25 mm²
	Cable Length 30m
	Jacket Colour Silver
	Outside Diameter 12.16 mm
	Jacket Material Polyvinyl Chloride
	Conductor Type Stranded
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 60°C
	Standards/Approvals UL 2493, cUL, UL 1581, CE
	Fire Behaviour Flame Retardant
	Conductor Material Tin Copper Wire
	Series 8168
	Voltage 300 V
	Core Strands 7

COO (Country of Origin):: US

Belden Data Cable, 24AWG, 30m Length - 8168

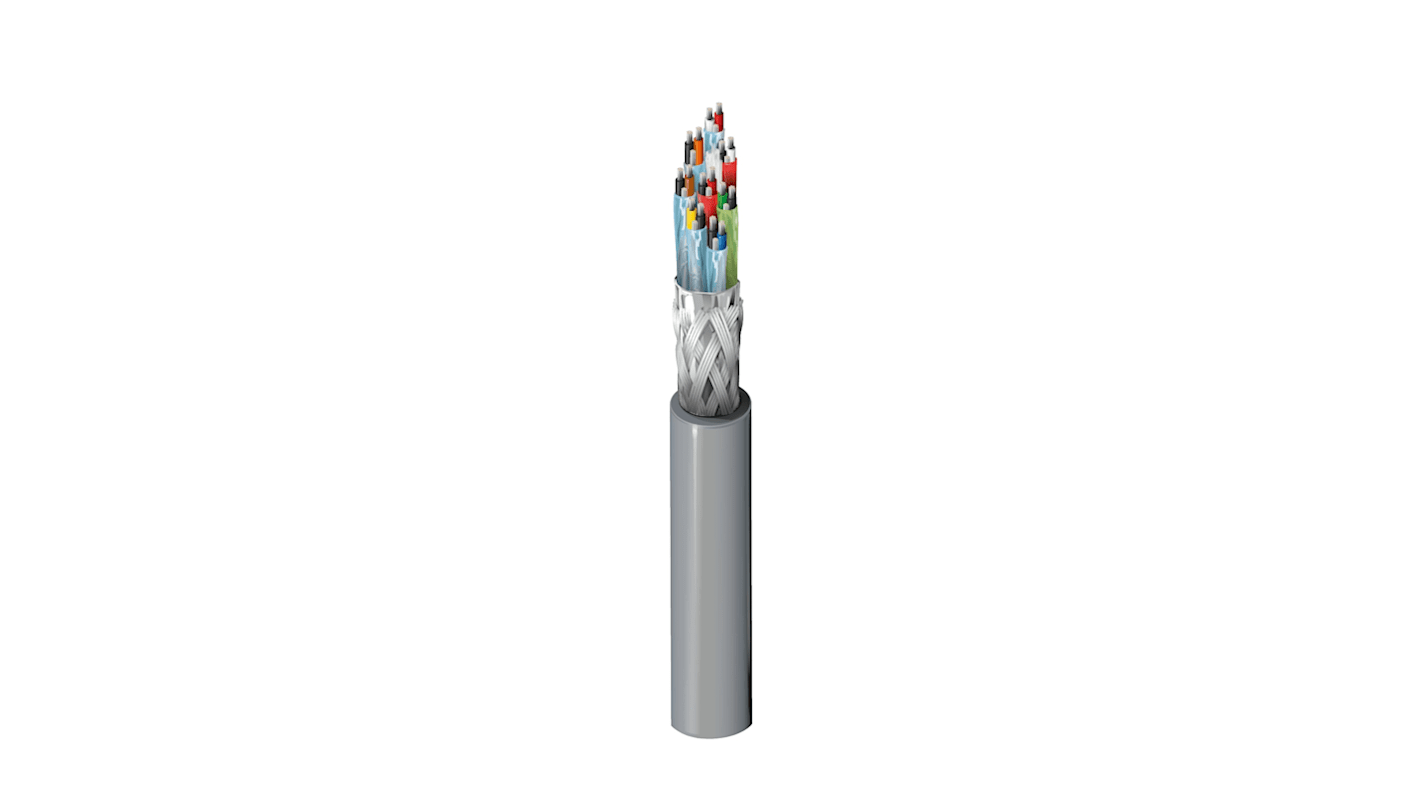

When data transmission complying with RS-232 and RS-422 standards is the goal, opt for this data cable from Belden. It has 8 pairs of 24-gauge wires that come with foil shields and a protective braid to safeguard against disruption caused by EMI. The cable's low capacitance minimises signal distortion. Highly conductive tinned copper conductors are on hand to support speedy data transmission and deliver protection against corrosion in humid environments.

Features & Benefits

• Wide operating temperature range of -40°C to +60°C

• 100Ohm characteristic impedance ensures reliable communication between devices

• 30m length offers flexibility for installation across a large area

• PVC jacket provides durability and natural resistance to ignition to support safety

Applications

• Industrial automation

• Communication equipment

• Computer networks

What voltage rating does this cable have?

The cable has a voltage rating of 300V, which ensures it's equipped to handle industrial outputs reliably and safely.
