MPN

Belden 8778 Series Control Cable, 6 Pairs, 12 Cores, 0.33 mm², Screened, 22 AWG, 152m, Screened Shield, Control Cable

RS Stock No.:: 823-190
Mfr. Part No.:: 8778.00152
Brand:: Belden

Belden 8778 Series Control Cable, 6 Pairs, 12 Cores, 0.33 mm², Screened, 22 AWG, 152m, Screened Shield, Control Cable

Subtotal (1 reel of 152 metres)*

£1,112.27

(exc. VAT)

£1,334.72

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£1,112.27	£7.318

*price indicative

RS Stock No.:: 823-190
Mfr. Part No.:: 8778.00152
Brand:: Belden

Belden Individually Shielded Twisted Pair Cables (87XX Series)

Guard against troublesome electromagnetic interference in your cables with the individually shielded twisted pair 87XX series cables from Belden. These shielded cables also defend against crosstalk from neighbouring pairs, giving you a more reliable signal transmission.

Versions featuring the PVC jacket offer excellent durability against water, oils and chemicals, while the flame-retardant LSZH (Low Smoke Zero Halogen) jacket cables are ideal for enclosed or populated areas. They use tinned copper conductors for high conductivity.

Features and Benefits:

• 100% coverage due to Beldfoil (Z-Fold) shielding technology, which is lightweight, strong, and flexible
• Flame test UL1685 UL loading
• Tinned copper drain wire ensures easy grounding, removing unwanted electrical noise
• Polypropylene (PP) insulation

Belden is a globally trusted brand with over 100 years of experience in designing high-performance networking, connectivity and cabling solutions. Their products are tested to strict quality standards, making them a safe and long-lasting choice for any application.

Applications:

Power & High voltage
Industrial
Transit
Signal & Data
Communication

Why is shielding used in cables?

Cables which are screened, or shielded, are better protected again electromagnetic interference (EMI) than unshielded versions. EMI refers to electrical noise which is conducted or radiated, and it can negatively affect the functioning of devices and equipment. Screening reduces crosstalk between cables (signal leakage), ensuring higher signal integrity.

What is Beldfoil?

Beldfoil is an aluminium/polyester foil which is used to shield Belden cables. This innovative patented design is highly effective for providing electrostatic shielding, strength, and extra insulation. It is perfectly suited for audio, communication, and data cabling. The Z-foil shield uses a shorting fold and an isolation fold which minimises signal radiation and defends against external interference.

Standards:

UL2919; NEC CM (IEC for 332-3C)

Belden 8778 Series Control Cable, 0.33mm² Cross Sectional Area, 12 Cores - 8778.00152

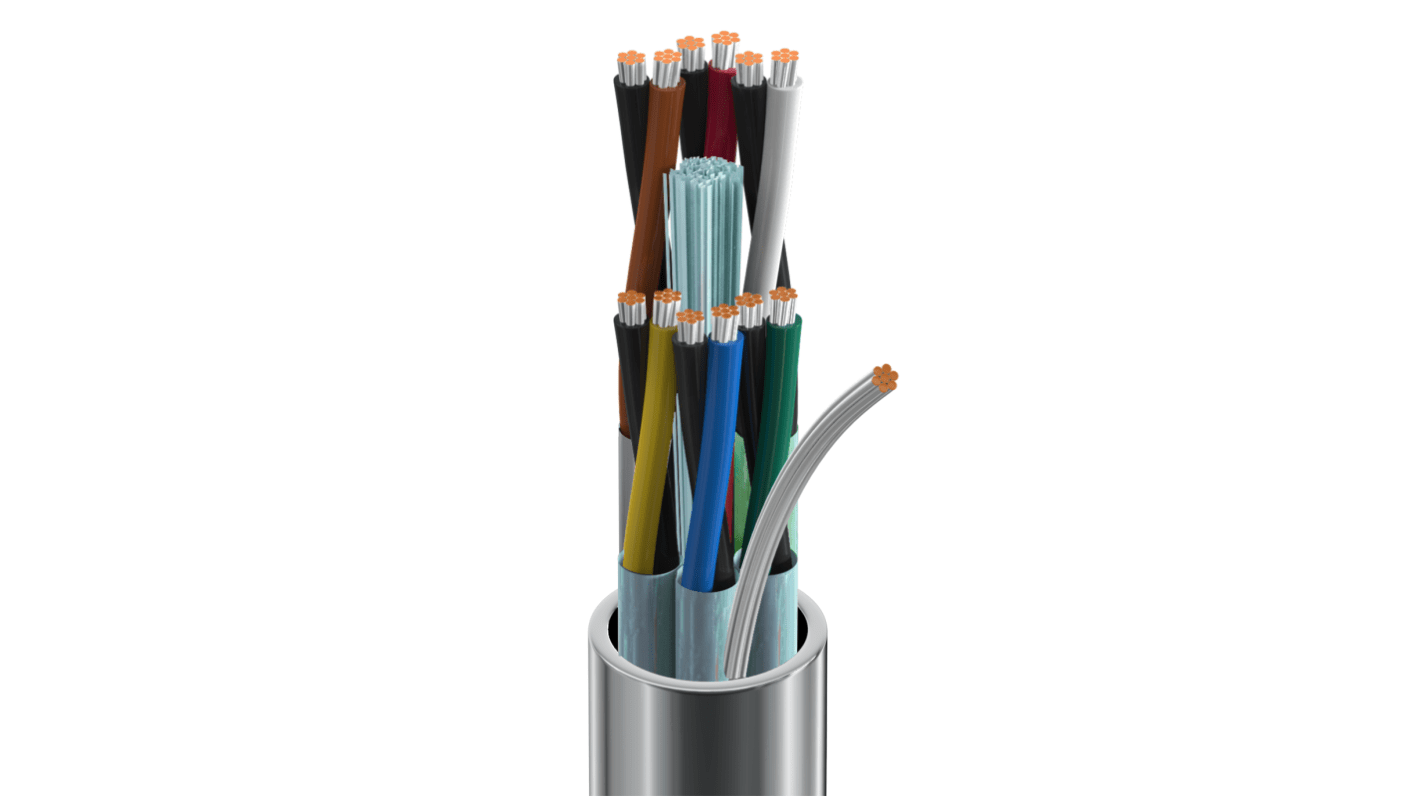

This control cable is designed for efficient transmission in various automation and electronic applications. The cable features a 22 AWG stranded tinned copper conductor, equipped with polypropylene insulation and twisted pairs individually shielded with Beldfoil® for enhanced signal integrity. With a PVC outer sheath, the cable measures 9.19mm in diameter and is available in a length of 152m, making it suitable for extensive installations.

Features & Benefits

• Screened design minimises electromagnetic interference
• Flame retardant properties ensure enhanced safety
• Twisted pair configuration reduces crosstalk and noise
• Robust PVC sheath offers excellent environmental protection
• Suitable for operation between -20°C and +80°C
• 50 Ω characteristic impedance supports high-performance applications

Applications

• Used for signal transmission in automation systems
• Ideal for control systems in electrical and mechanical industries
• Suitable for audio, control, and instrument
• Employed in industrial and commercial electrical installations

What materials are utilised in the construction of this cable?

The cable consists of a tinned copper conductor, polypropylene insulation, and a PVC outer sheath, with twisted pairs individually shielded using aluminium foil and Beldfoil®.

What is the significance of this cable's impedance rating?

The 50 Ω impedance is essential for preserving signal integrity in communication applications, ensuring reduced loss and enhanced performance over longer distances.

Can this cable be used in high-temperature environments?

Yes, the operating temperature range is from -20°C to +80°C, making it suitable for various industrial applications where temperature fluctuations occur.

How does the twisted pair design benefit this cable's performance?

The twisted pair arrangement minimises unbalanced crosstalk, ensuring a clearer signal transmission while reducing interference from adjacent wires.

What standards does this cable comply with for fire safety?

This cable is certified under Euroclass Eca, indicating its flame retardant properties and suitability for use in environments where fire safety is a concern.

Standards

UL2919; NEC CM (IEC For 332-3C

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Number of Pairs	6
	Cross Sectional Area	0.33 mm²
	Number of Cores	12
	American Wire Gauge	22 AWG
	Screened/Unscreened	Screened
	Length	152m
	Shield Type	U/STP
	Sheath Colour	Chrome
	CPR Certification	Eca
	Cable Type	Control
	Outer Diameter	9.19mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	50 Ω
	Voltage Rating	30 V
	Maximum Operating Temperature	+80°C
	Series	8778
	Standards Met	Euroclass Eca
	Core Strands	7/30 AWG
	Minimum Operating Temperature	-20°C
	Fire Behaviour	Flame Retardant
	Shielded/Unshielded	Shielded

	Select all
	Brand Belden
	Number of Pairs 6
	Cross Sectional Area 0.33 mm²
	Number of Cores 12
	American Wire Gauge 22 AWG
	Screened/Unscreened Screened
	Length 152m
	Shield Type U/STP
	Sheath Colour Chrome
	CPR Certification Eca
	Cable Type Control
	Outer Diameter 9.19mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 50 Ω
	Voltage Rating 30 V
	Maximum Operating Temperature +80°C
	Series 8778
	Standards Met Euroclass Eca
	Core Strands 7/30 AWG
	Minimum Operating Temperature -20°C
	Fire Behaviour Flame Retardant
	Shielded/Unshielded Shielded
