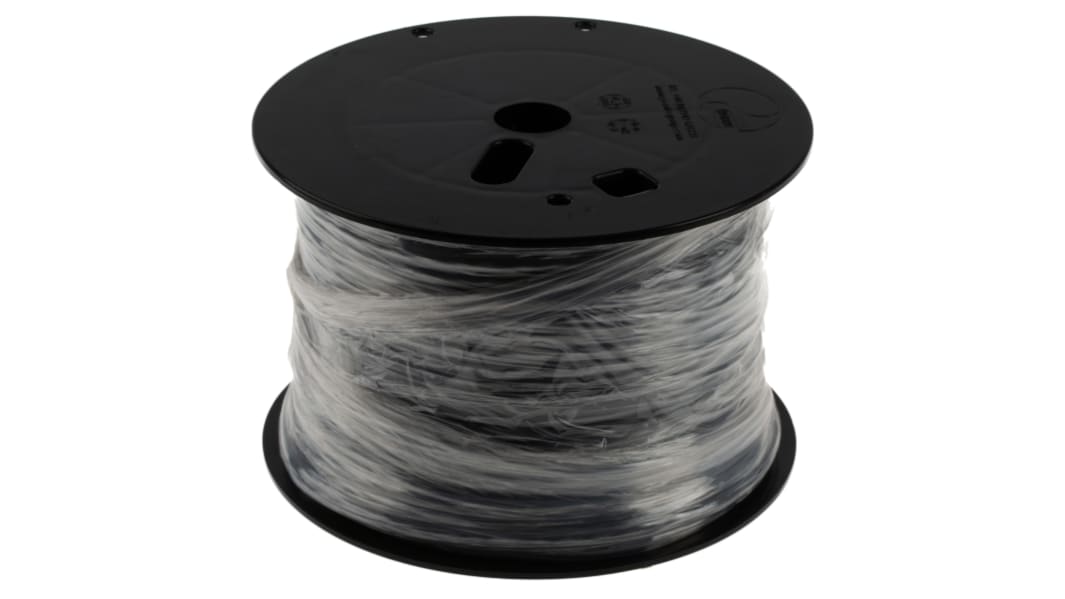

Belden YE00418 Series Multipair Industrial Cable, 2 Pairs, 30 m, Silver Sheath Polyvinyl Chloride
- RS Stock No.:
- 822-989
- Distrelec Article No.:
- 301-18-415
- Mfr. Part No.:
- 8723.003
- Brand:
- Belden
Subtotal (1 reel of 30 metres)*
£73.99
(exc. VAT)
£88.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 145 unit(s) ready to ship
- Plus 43 unit(s) shipping from 24 September 2026
- Plus 39 unit(s) shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £73.99 | £2.466 |
*price indicative
- RS Stock No.:
- 822-989
- Distrelec Article No.:
- 301-18-415
- Mfr. Part No.:
- 8723.003
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Multipair Industrial Cable | |
| Number of Pairs | 2 | |
| Number of Cores | 4 | |
| Cable Length | 30m | |
| Jacket Colour | Silver | |
| Outside Diameter | 4.06mm | |
| Jacket Material | Polyvinyl Chloride | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | Euroclass Eca | |
| Conductor Material | Tin Copper Wire | |
| Fire Behaviour | Limited Smoke, IEC 60332-1-2, UL1581 Vertical Tray, UL1685 FT4 Loading | |
| Series | YE00418 | |
| Core Strands | 7 x 30AWG | |
| Voltage | 300V | |
| Size of Strands | 30AWG | |
| Number of Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Multipair Industrial Cable | ||
Number of Pairs 2 | ||
Number of Cores 4 | ||
Cable Length 30m | ||
Jacket Colour Silver | ||
Outside Diameter 4.06mm | ||
Jacket Material Polyvinyl Chloride | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals Euroclass Eca | ||
Conductor Material Tin Copper Wire | ||
Fire Behaviour Limited Smoke, IEC 60332-1-2, UL1581 Vertical Tray, UL1685 FT4 Loading | ||
Series YE00418 | ||
Core Strands 7 x 30AWG | ||
Voltage 300V | ||
Size of Strands 30AWG | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- NL
Belden Screened Multi-Pair Industrial Cable, 0.33mm², 300V - 8723
Ensure long-term performance in low-voltage data control applications with the Belden 8723 cable. The screened cable reduces electrical noise to provide a steady signal and minimises electromagnetic radiation to lower the risk of interference with other devices. Tinned copper conductors provide excellent conductivity for a reliable connection. A rugged outer jacket made of PVC (polyvinyl chloride) protects the electrical and mechanical integrity of this industrial cable and resists oil, chemicals and oxidation, so you can be sure of long-lasting performance. The 8723NH model uses a flame retardant LSZH sheath which is ideal for enclosed spaces.
Features & Benefits
• Twisted pair design reduces electromagnetic interference (EMI) for reliable signal transmission
• Cable length can be easily cut for flexibility when making connections
• PP (polypropylene) insulation for improved electrical safety
• Broad operating temperature range of -20°C to +75°C for use in demanding environments
Applications
• Industrial communication systems
• Aerospace industry
• Manufacturing and process control
• Automated safety systems
What screening material is used in this cable?
Belden's innovative Beldfoil technology protects the wiring with braided foil. The shield is lightweight and thin while remaining extremely strong and flexible. This allows multiple-pair or individually shielded cables to be used in constricted areas while maintaining interference-free audio and data communication.
Standards
8723NH IEC 332-3C; NEC CM
