Alpha Wire XTRA-GUARD 1 Series Multipair Industrial Cable, 2 Pairs, Screened, 22 AWG, 30m, Screened Shield, Twisted
- RS Stock No.:
- 409-173
- Mfr. Part No.:
- 5122C SL005
- Brand:
- Alpha Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£154.88
(exc. VAT)
£185.86
(inc. VAT)
- RS Stock No.:
- 409-173
- Mfr. Part No.:
- 5122C SL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Number of Pairs | 2 | |
| American Wire Gauge | 22 AWG | |
| Screened/Unscreened | Screened | |
| Length | 30m | |
| Shield Type | SF/UTP | |
| Sheath Colour | Grey | |
| Cable Type | Twisted Pair | |
| Outer Diameter | 6.6mm | |
| Outer Sheath Material | PVC | |
| Characteristic Impedance | 57 Ω | |
| Core Strands | 7/0.25 mm | |
| Fire Behaviour | Fire Resistant | |
| Priced to Clear | Yes | |
| Voltage Rating | 300 V | |
| Standards Met | CE | |
| Series | XTRA-GUARD 1 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Number of Pairs 2 | ||
American Wire Gauge 22 AWG | ||
Screened/Unscreened Screened | ||
Length 30m | ||
Shield Type SF/UTP | ||
Sheath Colour Grey | ||
Cable Type Twisted Pair | ||
Outer Diameter 6.6mm | ||
Outer Sheath Material PVC | ||
Characteristic Impedance 57 Ω | ||
Core Strands 7/0.25 mm | ||
Fire Behaviour Fire Resistant | ||
Priced to Clear Yes | ||
Voltage Rating 300 V | ||
Standards Met CE | ||
Series XTRA-GUARD 1 | ||
- COO (Country of Origin):
- US

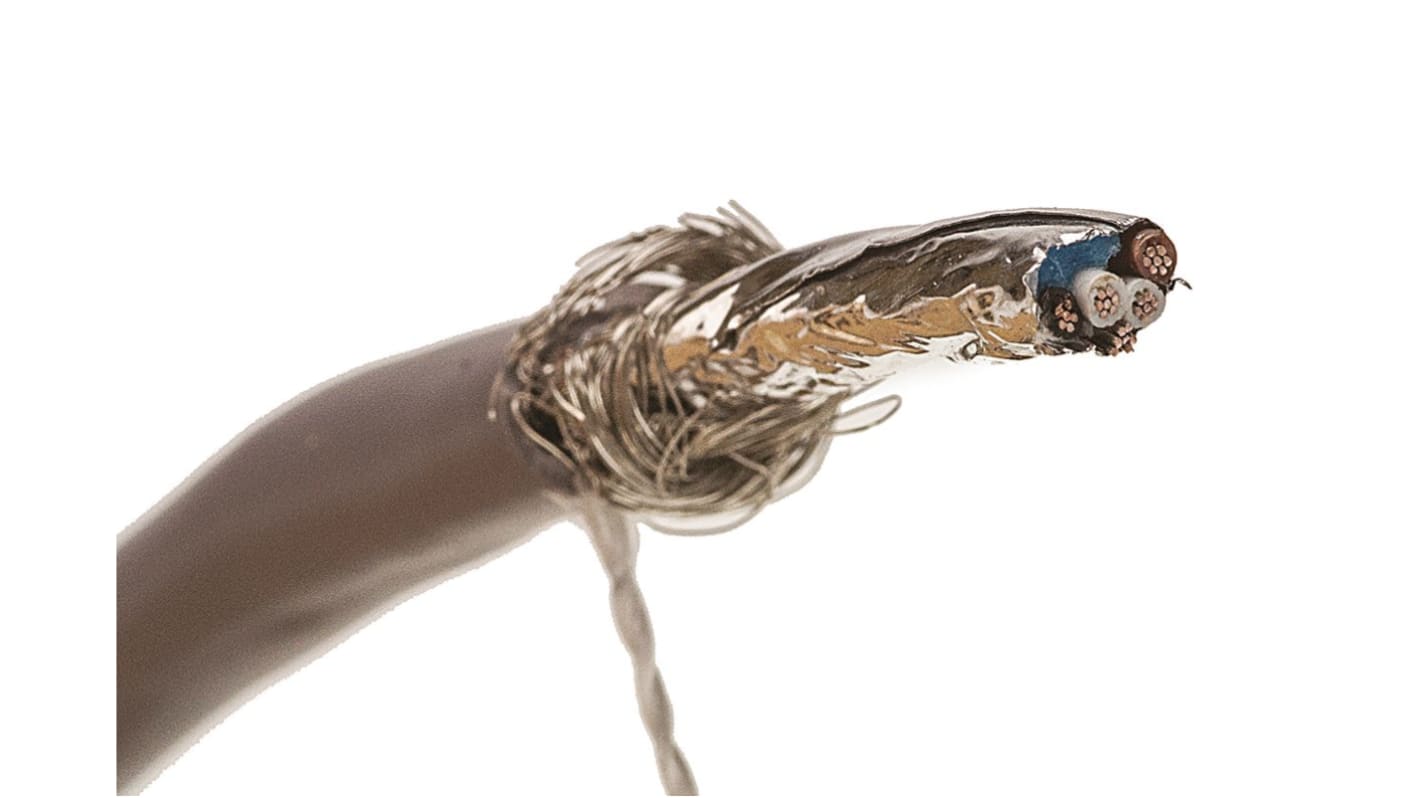

Xtra Guard™ 1 - Supra Shield
The Alpha wire Xtra Guard™ 1 - Supra Shield is a high performance industrial cable. The Supra-Shield foil and braid shield provides exceptional protection against EMI interference. A tinned copper drain wire makes grounding the cable easy.
Features and Benefits
High performance cable
Exceptional protection against EMI interference
Good water & chemical resistance
60°C Oil (Oil Res I)
Premium grade PVC insulation and jacket
UV resistant, UL SUN RES
Applications
High technology application in controlled environments
Medical electronics
Point of sale equipment
Computer peripherals
Industrial process control
Note
Xtra Guard™ is a registered trademark of Alpha Wire
Standards
UL SUN RES, IEC Flame ratings: IEC 60332-1 & -2
Approvals
UL, CSA
