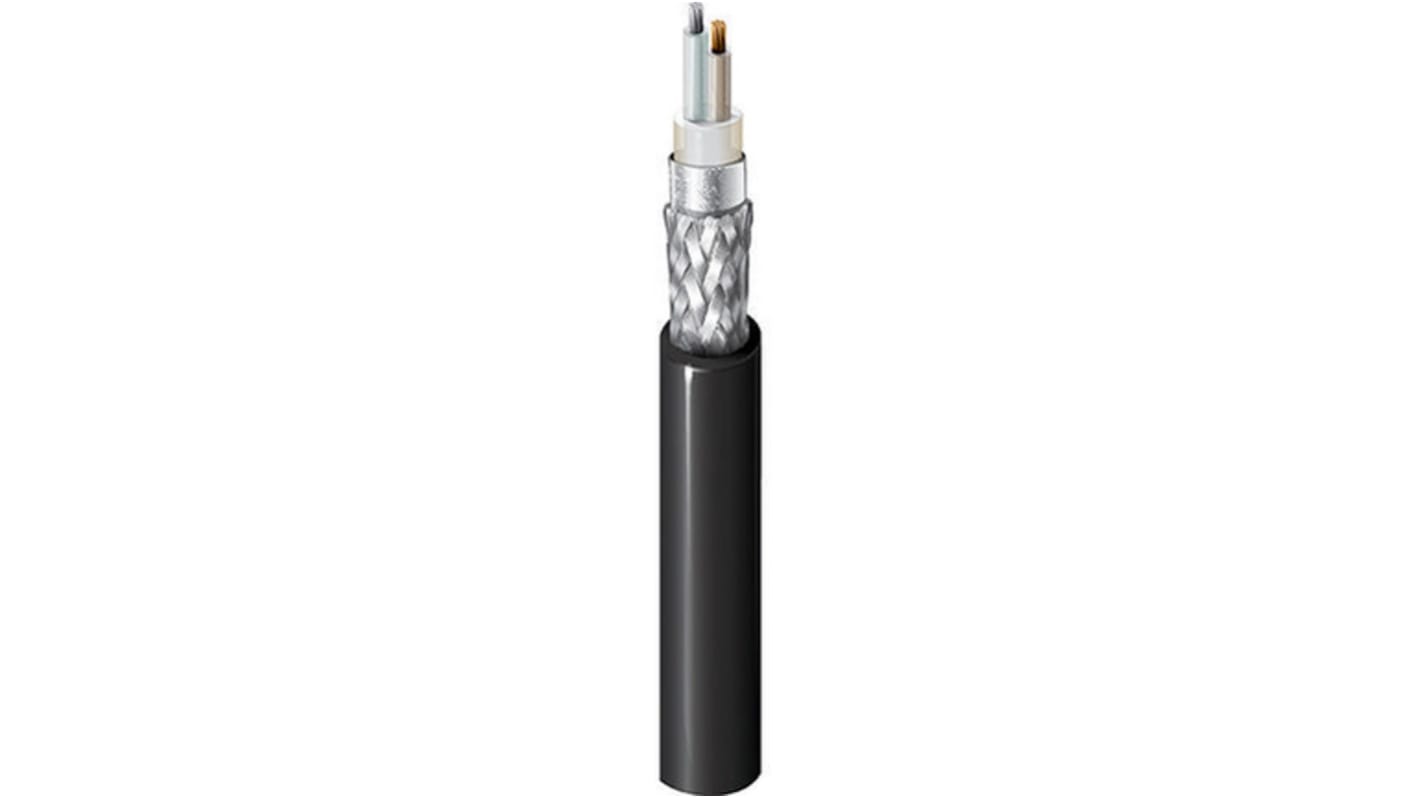

Belden Black Twinaxial Cable, 8.76mm OD 152m, 150 Ω impedance
- RS Stock No.:
- 331-8887
- Mfr. Part No.:
- 9182 010U500
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 331-8887
- Mfr. Part No.:
- 9182 010U500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Black | |
| Length | 152m | |
| Characteristic Impedance | 150 Ω | |
| Attenuation | 2.7 dB/100ft @ 50MHz, 4.3 dB/100ft @ 100MHz, 6.2 dB/100ft @ 200MHz, 8.8 dB/100ft @ 400MHz | |
| Insulation Material | Foam HDPE | |
| Outer Diameter | 8.76mm | |
| Capacitance | 54.12 pF/m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Screened/Unscreened | Unscreened | |
| Velocity ratio | 78% | |
| Conductor Strand Type | Stranded | |
| Cable Shape | Coaxial | |
| Standards Met | Euroclass Eca | |
| Size of Strands | 34 AWG | |
| Conductor Material | Tinned Copper | |
| Core Strands | 19/34 AWG | |
| Number of Strands | 19 | |
Select all | ||
|---|---|---|
Brand Belden | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Black | ||
Length 152m | ||
Characteristic Impedance 150 Ω | ||
Attenuation 2.7 dB/100ft @ 50MHz, 4.3 dB/100ft @ 100MHz, 6.2 dB/100ft @ 200MHz, 8.8 dB/100ft @ 400MHz | ||
Insulation Material Foam HDPE | ||
Outer Diameter 8.76mm | ||
Capacitance 54.12 pF/m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Screened/Unscreened Unscreened | ||
Velocity ratio 78% | ||
Conductor Strand Type Stranded | ||
Cable Shape Coaxial | ||
Standards Met Euroclass Eca | ||
Size of Strands 34 AWG | ||
Conductor Material Tinned Copper | ||
Core Strands 19/34 AWG | ||
Number of Strands 19 | ||
- COO (Country of Origin):
- US
Proprietary Twinax Cable (9182)
A twinaxial or 'twinax' cable with Duofoil® outer shield and Datalene® insulation.
Applications
· Originally for computer connections, the 9182 has multiple uses in industrial communication networks
· Ideal for RS-485 communication and other standard PLC protocols
· Originally for computer connections, the 9182 has multiple uses in industrial communication networks
· Ideal for RS-485 communication and other standard PLC protocols
Standards
NEC CMH; UL2666 (IEC For 332-3C); PVC: NEC CMX, CL2X UL 2668;
NH: IEC332-3C
NH: IEC332-3C
