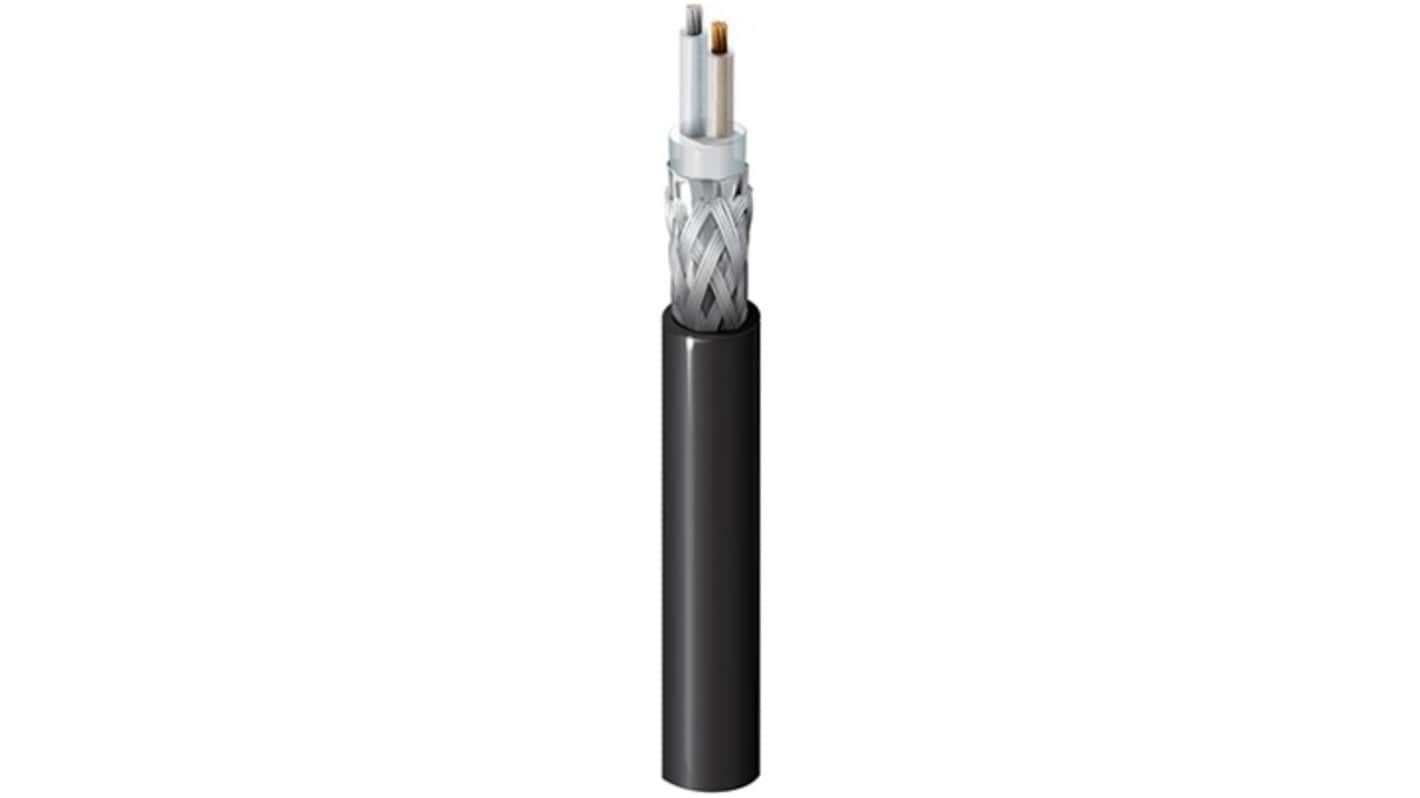

Belden, 9207NH series Black Twin Axial Cable, 8.6 mm OD 500 m, 100 Ω impedance
- RS Stock No.:
- 644-588
- Mfr. Part No.:
- 9207NH.00500
- Brand:
- Belden
Subtotal (1 reel of 500 metres)*
£2,355.71
(exc. VAT)
£2,826.85
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £2,355.71 | £4.711 |
*price indicative
- RS Stock No.:
- 644-588
- Mfr. Part No.:
- 9207NH.00500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Fire Behaviour | Flame Retardant | |
| Product Type | Twin Axial Cable | |
| Jacket Material | Low Smoke Zero Halogen | |
| Jacket Colour | Black | |
| American Wire Gauge | 20AWG | |
| Cable Length | 500m | |
| Characteristic Impedance | 100Ω | |
| Attenuation | 0.98 dB/100m | |
| Outside Diameter | 8.6mm | |
| Minimum Operating Temperature | -45°C | |
| Standards/Approvals | RoHS | |
| Series | 9207NH | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Fire Behaviour Flame Retardant | ||
Product Type Twin Axial Cable | ||
Jacket Material Low Smoke Zero Halogen | ||
Jacket Colour Black | ||
American Wire Gauge 20AWG | ||
Cable Length 500m | ||
Characteristic Impedance 100Ω | ||
Attenuation 0.98 dB/100m | ||
Outside Diameter 8.6mm | ||
Minimum Operating Temperature -45°C | ||
Standards/Approvals RoHS | ||
Series 9207NH | ||
- COO (Country of Origin):
- NL
Belden 9207NH Series Twin Axial Cable, 500m Length, 100Ω Characteristic Impedance - 9207NH.00500
This twin axial cable provides paired signal transmission for industrial and electronic installations, designed for deployment on a 500 m bulk roll. It is intended for environments where controlled impedance and low emission are required, offering a black-sheathed option with reduced halogen content for installations sensitive to smoke and corrosive gases. The cable operates across a wide temperature range down to -45°C and is suitable for professional wiring and cabling tasks in automation and electrical systems.
Features & Benefits
• 100 Ω characteristic impedance ensures consistent signal integrity
• 20 AWG conductors balance flexibility with current-carrying capability
• 0.98 dB attenuation delivers low signal loss per typical measurement
• Low Smoke Zero Halogen jacket minimises toxic emissions in fires
• Flame-retardant construction reduces fire propagation risk
• 8.6mm outside diameter supports Compact routing in cable trays
• 20 AWG conductors balance flexibility with current-carrying capability
• 0.98 dB attenuation delivers low signal loss per typical measurement
• Low Smoke Zero Halogen jacket minimises toxic emissions in fires
• Flame-retardant construction reduces fire propagation risk
• 8.6mm outside diameter supports Compact routing in cable trays
**Applications**
• Suitable for twin-axial CCTV installations requiring paired conductors
• Ideal for industrial control systems needing stable impedance
• Used for bulk-roll distribution in electrical and electronics workshops
• Can be used for retrofitting coaxial replacement runs in machinery
• Used with automation racks where low-smoke materials are required
• Ideal for industrial control systems needing stable impedance
• Used for bulk-roll distribution in electrical and electronics workshops
• Can be used for retrofitting coaxial replacement runs in machinery
• Used with automation racks where low-smoke materials are required
What jacket colour and material does it use for visible installations?
The outer sheath is black and manufactured from a Low Smoke Zero Halogen compound to reduce harmful off-gassing.
How does the cable perform in cold environments?
It is rated to operate reliably at temperatures as low as -45°C for installations exposed to extreme cold.
Is this cable suitable where regulatory substance restrictions apply?
It meets RoHS requirements for restricted substances, allowing use in regulated manufacturing and assembly contexts.
What physical size should I plan for when routing?
The cable has an outside diameter of 8.6 mm, which informs conduit and tray capacity planning.
