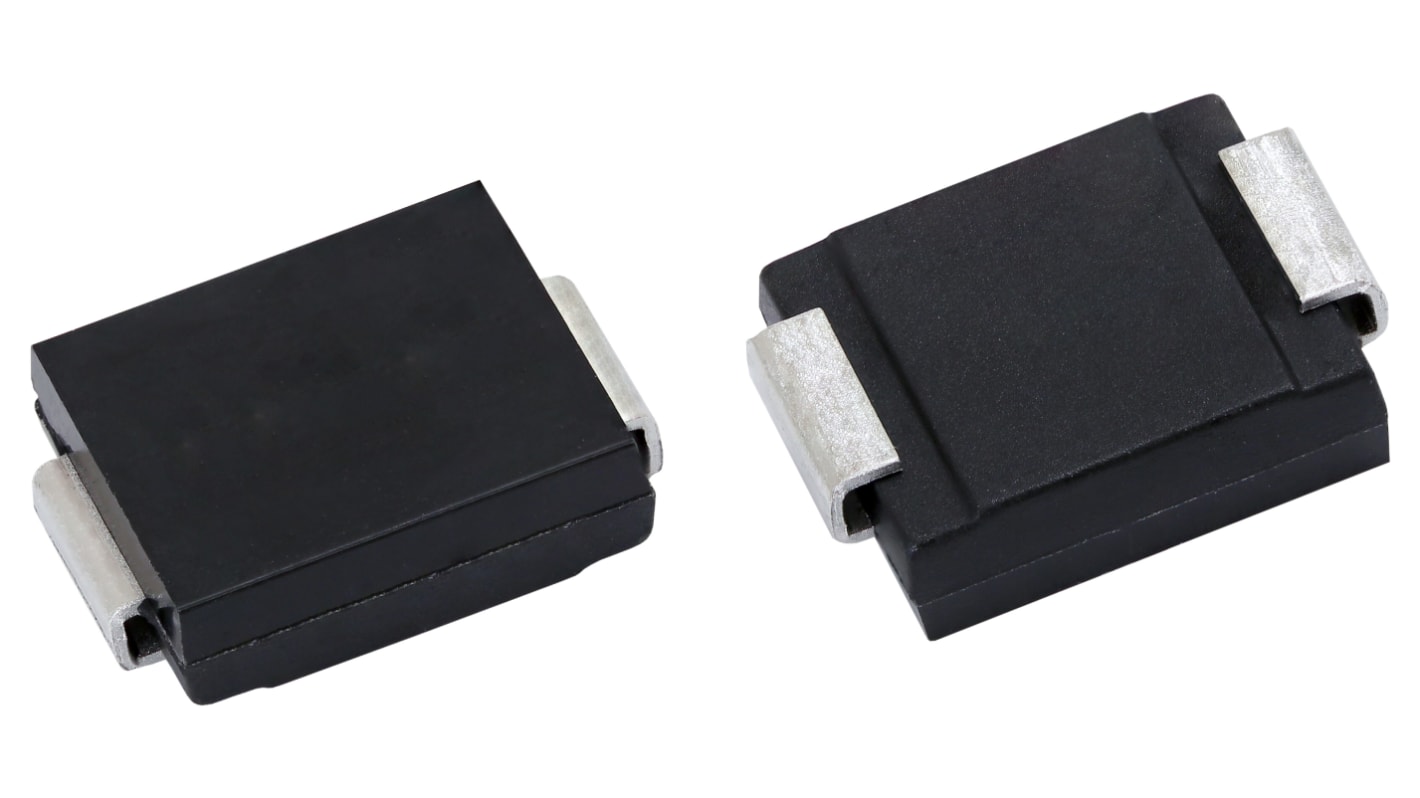

Vishay 3.0C22CA-M3/I, Bi-Directional TVS Diode, 3000W, 2-Pin SMC (DO-214AB)
- RS Stock No.:
- 279-9271P
- Mfr. Part No.:
- 3.0C22CA-M3/I
- Brand:
- Vishay
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£41.10
(exc. VAT)
£49.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3,485 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | £0.822 |
| 100 - 245 | £0.732 |
| 250 - 995 | £0.658 |
| 1000 + | £0.598 |
*price indicative
- RS Stock No.:
- 279-9271P
- Mfr. Part No.:
- 3.0C22CA-M3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Diode Configuration | 2x Common Cathode Pair | |
| Direction Type | Bi-Directional | |
| Maximum Clamping Voltage | 35.5V | |
| Minimum Breakdown Voltage | 24.4V | |
| Mounting Type | Surface Mount | |
| Package Type | SMC (DO-214AB) | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 3000W | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Diode Configuration 2x Common Cathode Pair | ||
Direction Type Bi-Directional | ||
Maximum Clamping Voltage 35.5V | ||
Minimum Breakdown Voltage 24.4V | ||
Mounting Type Surface Mount | ||
Package Type SMC (DO-214AB) | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 3000W | ||
Number of Elements per Chip 1 | ||
The Vishay surface mount Transzorb transient voltage suppressor with excellent clamping capability. It has very fast response time. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs.
RoHS compliant
Bidirectional
Halogen free
UL 94 V-0 flammability rating
Low incremental surge resistance
Bidirectional
Halogen free
UL 94 V-0 flammability rating
Low incremental surge resistance
