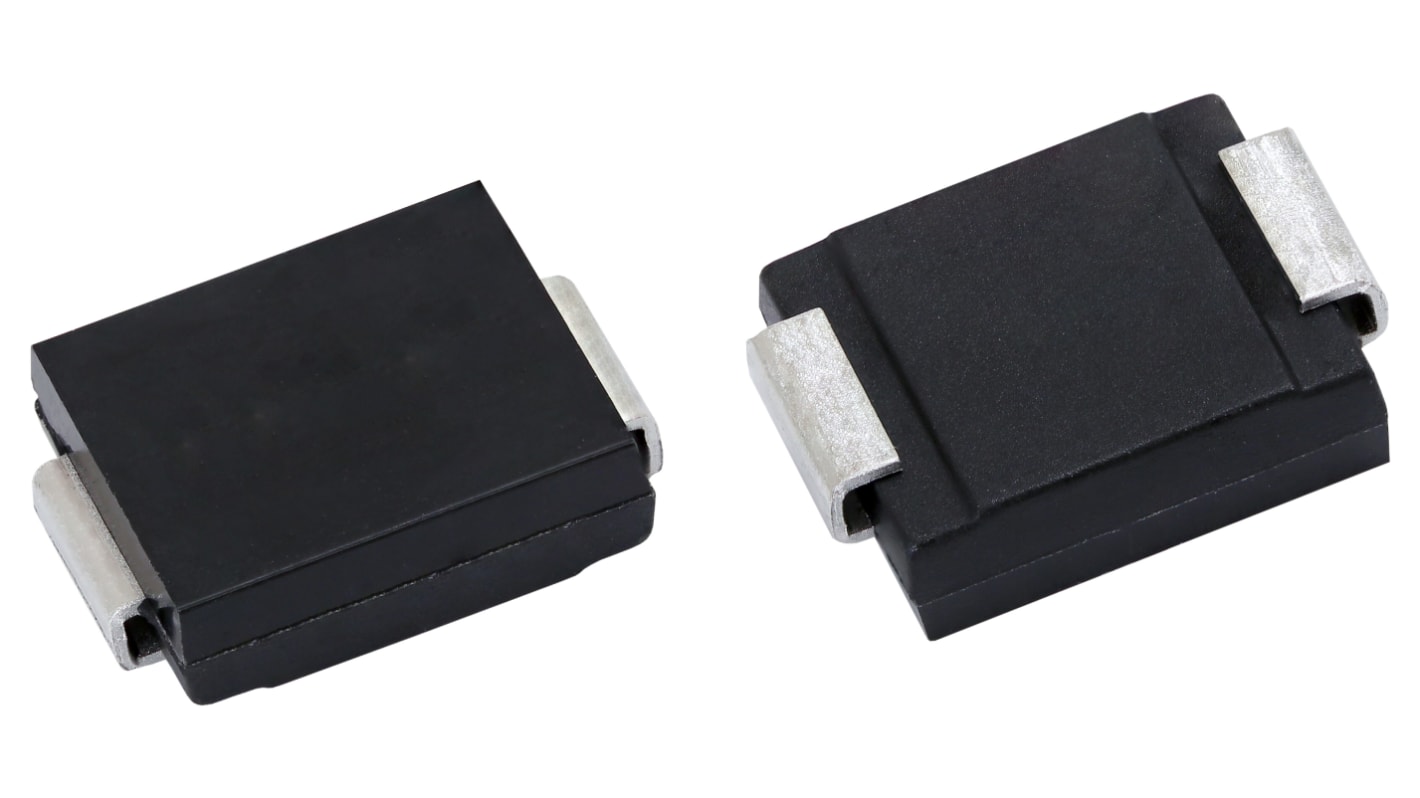

Vishay 3.0C10CA-M3/I 1-Element Bi-Directional TVS Diode, 3000 W, 2-Pin SMC (DO-214AB)

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 5 units)*

£4.72

(exc. VAT)

£5.665

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3,500 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
5 - 45£0.944£4.72
50 - 95£0.824£4.12
100 - 245£0.732£3.66
250 - 995£0.662£3.31
1000 +£0.602£3.01

*price indicative

Packaging Options:
RS Stock No.:
279-9248
Mfr. Part No.:
3.0C10CA-M3/I
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

2x Common Cathode Pair

Direction Type

Bi-Directional

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

11.1V

Mount Type

Surface

Package Type

SMC (DO-214AB)

Maximum Reverse Stand-off Voltage Vwm

10V

Pin Count

2

Peak Pulse Power Dissipation Pppm

3000W

Clamping Voltage VC

17V

ESD Protection

Yes

Maximum Peak Pulse Current Ippm

176A

Test Current It

1mA

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Number of Elements per Chip

1

Height

2.62mm

Length

7.11mm

Series

3.0C10CA-M3 thru 3.0C120CA-M3

Standards/Approvals

Halogen-Free, UL 94 V-0 Flammability, RoHS, Industrial Grade, Meets MSL level 1 per J-STD-020

Automotive Standard

No

Maximum Reverse Leakage Current

10μA

The Vishay surface mount Transzorb transient voltage suppressor with excellent clamping capability. It has very fast response time. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs.

RoHS compliant

Bidirectional

Halogen free

UL 94 V-0 flammability rating

Low incremental surge resistance
